45132 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

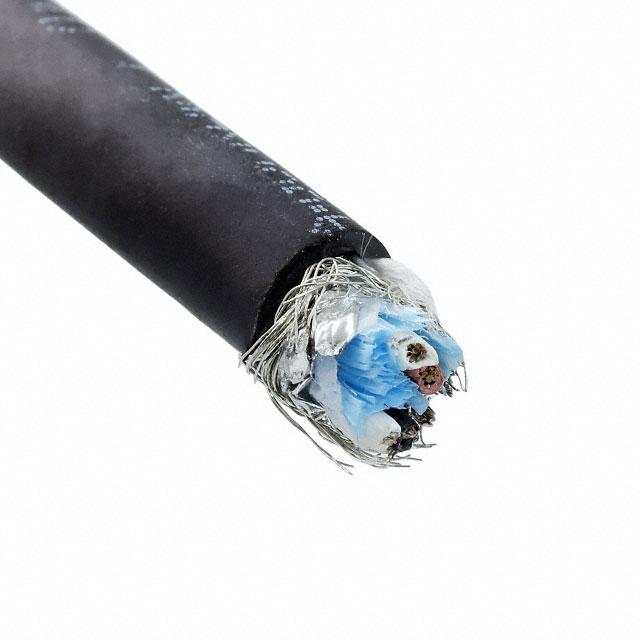

MULTI-PAIR 4COND 18AWG BLK 1000'
| Part | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Length | Length | Conductor Insulation | Number of Conductors | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Shield Coverage | Operating Temperature [Min] | Operating Temperature [Max] | Shield Material | Wire Gauge | Jacket Color | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Features | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Multi-Pair | 9.68 mm | 0.381 in | Thermoplastic Elastomer (TPE) | 1000 ft | 304.8 m | Thermoplastic Elastomer (TPE) | 4 | Copper Tinned | 16 | 30 AWG | 70 % 100 % | -50 °C | 125 °C | Copper Tinned Suprashield® | 18 AWG | Black | ISO 10993 | 1.143 mm | 0.045 in | 300 V | Biological Compatibility Drain Wire Rip Cord | Braid Foil |
 ALPHA WIRE | Multi-Pair | 9.68 mm | 0.381 in | Thermoplastic Elastomer (TPE) | 1000 ft | 304.8 m | Thermoplastic Elastomer (TPE) | 4 | Copper Tinned | 16 | 30 AWG | 70 % 100 % | -50 °C | 125 °C | Copper Tinned Suprashield® | 18 AWG | Slate | ISO 10993 | 1.143 mm | 0.045 in | 300 V | Biological Compatibility Drain Wire Rip Cord | Braid Foil |
