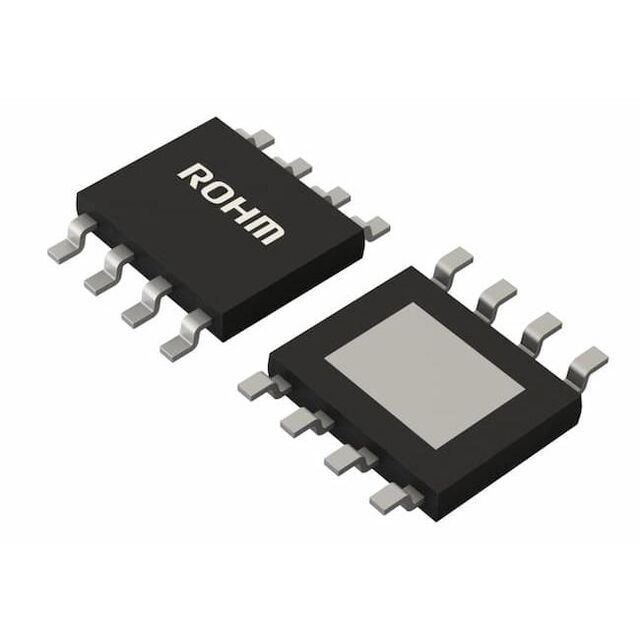

BD7J200 Series

Isolated Flyback Converter IC with Integrated Switching MOSFET

Catalog

Isolated Flyback Converter IC with Integrated Switching MOSFET

Part	Function	Mounting Type	Output Type	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Output (Min/Fixed) [Min]	Current - Output	Topology	Synchronous Rectifier	Output Configuration	Supplier Device Package	Frequency - Switching	Package / Case	Package / Case [y]	Package / Case [x]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Max) [Max]	Voltage - Input (Max) [Max]
Rohm Semiconductor BD7J200EFJ-LBE2	Step-Up/Step-Down	Surface Mount	Adjustable	1	8 V	0.78 V	1.4 A	Flyback		Isolation Capable Positive	8-HTSOP-J	400 kHz	8-SOIC Exposed Pad	3.9 mm	0.154 in	125 °C	-40 C	120 V	80 V
Rohm Semiconductor BD7J200UEFJ-LBE2	Step-Up/Step-Down	Surface Mount	Adjustable	1	8 V			Flyback		Isolation Capable Positive	8-HTSOP-J	400 kHz	8-SOIC Exposed Pad	3.9 mm	0.154 in	125 °C	-40 C	120 V	80 V

Catalog

Isolated Flyback Converter IC with Integrated Switching MOSFET

Description

This is the product guarantees long time support in Industrial market. This IC is an optocoupler-less isolated flyback converter. It is not necessary to use any optocouplers and feedback circuits by a third winding of transformers; these have been ever required to obtain a stable output voltage in Isolated Power Supply for Industrial Equipments. Furthermore, adoption of the original adapted type technology that controls on time makes the external phase compensation parts unnecessary, reduces a lot of parts number and minimalizes applications, which realizes the designs of isolated power supply application with high reliability.We recommendBD7J200UEFJ-LBfor your new development. It uses different production lines for the purpose of improving production efficiency. Electric characteristics noted in Datasheet does not differ between Production Line.
