325-076 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 76POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Number of Rows [custom]	Mounting Type	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Positions	Card Type	Read Out	Card Thickness	Card Thickness	Gender	Number of Positions/Bay/Row [custom]	Contact Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]

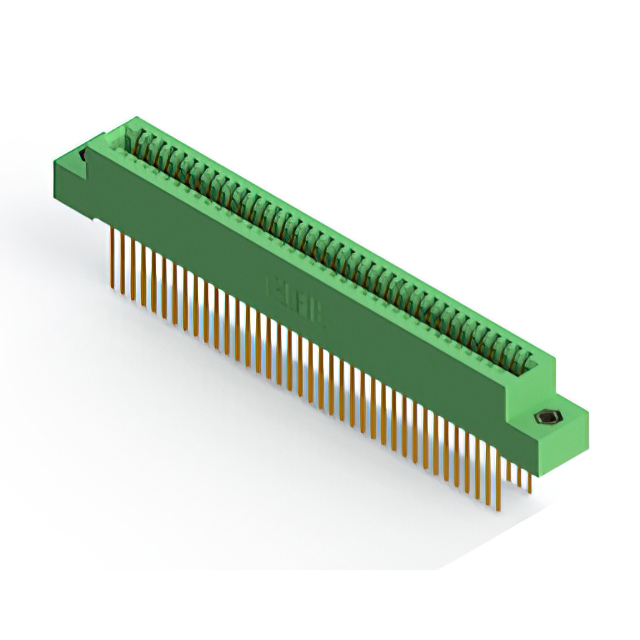

EDAC Inc. 325-076-540-207	2	Diallyl Phthalate (DAP)	2	Through Hole	0.1 "	2.54 mm	0.25 Ám	10 Áin	Green	76	Non Specified - Dual Edge	Dual	3.18 mm	0.125 in	Female	38	Cantilever	Wire Wrap	-65 ░C	125 °C	Copper Alloy	Gold	Flush Mount M3 Threaded Insert Top Opening

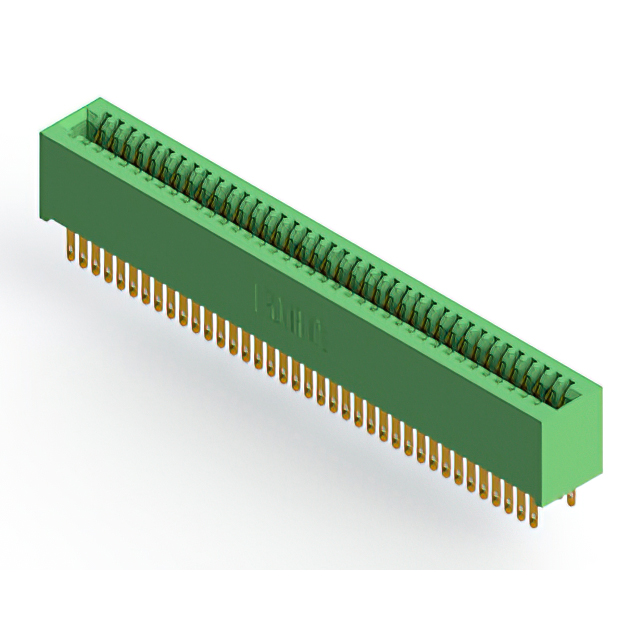

EDAC Inc. 325-076-500-201	2	Diallyl Phthalate (DAP)	2	Through Hole	0.1 "	2.54 mm	0.25 Ám	10 Áin	Green	76	Non Specified - Dual Edge	Dual	3.18 mm	0.125 in	Female	38	Cantilever	Solder Eyelet(s)	-65 ░C	125 °C	Copper Alloy	Gold

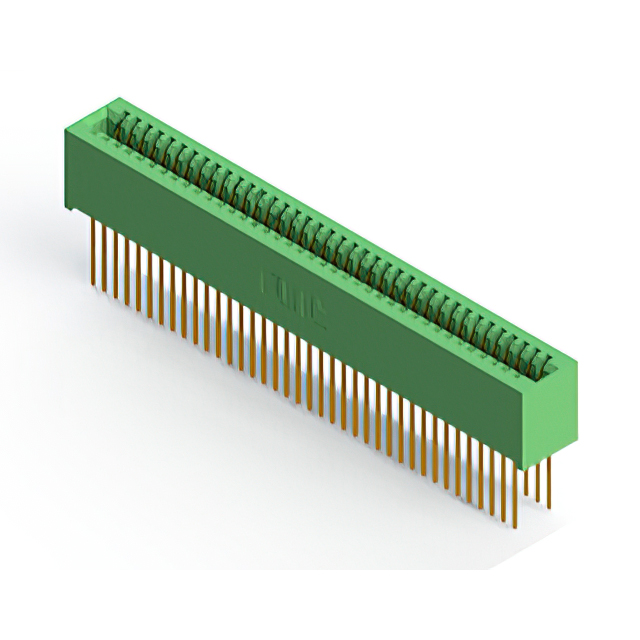

EDAC Inc. 325-076-540-201	2	Diallyl Phthalate (DAP)	2	Through Hole	0.1 "	2.54 mm	0.25 Ám	10 Áin	Green	76	Non Specified - Dual Edge	Dual	3.18 mm	0.125 in	Female	38	Cantilever	Wire Wrap	-65 ░C	125 °C	Copper Alloy	Gold

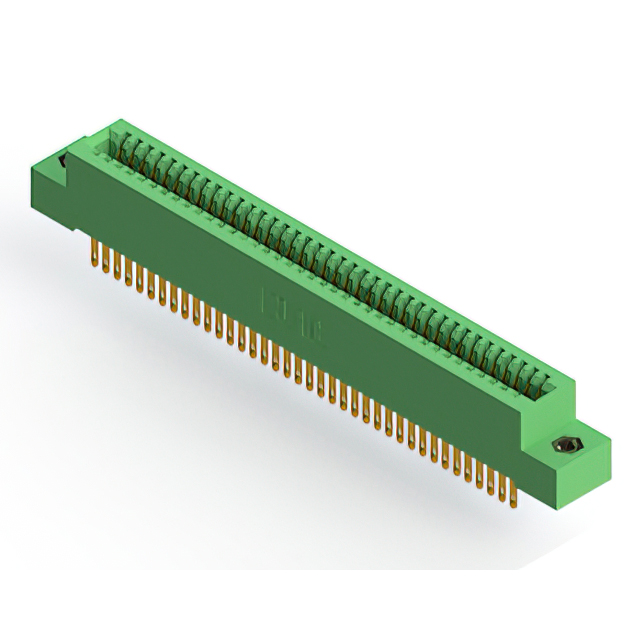

EDAC Inc. 325-076-500-208	2	Diallyl Phthalate (DAP)	2	Through Hole	0.1 "	2.54 mm	0.25 Ám	10 Áin	Green	76	Non Specified - Dual Edge	Dual	3.18 mm	0.125 in	Female	38	Cantilever	Solder Eyelet(s)	-65 ░C	125 °C	Copper Alloy	Gold	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 325-076-540-208	2	Diallyl Phthalate (DAP)	2	Through Hole	0.1 "	2.54 mm	0.25 Ám	10 Áin	Green	76	Non Specified - Dual Edge	Dual	3.18 mm	0.125 in	Female	38	Cantilever	Wire Wrap	-65 ░C	125 °C	Copper Alloy	Gold	4-40 Flush Mount Threaded Insert Top Opening

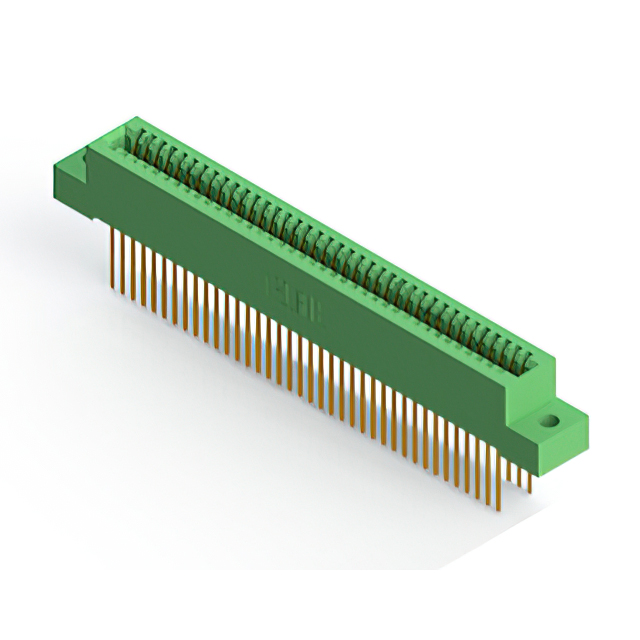

EDAC Inc. 325-076-540-209	2	Diallyl Phthalate (DAP)	2	Through Hole	0.1 "	2.54 mm	0.25 Ám	10 Áin	Green	76	Non Specified - Dual Edge	Dual	3.18 mm	0.125 in	Female	38	Cantilever	Wire Wrap	-65 ░C	125 °C	Copper Alloy	Gold	Flush Mount Top Opening Unthreaded	0.16 "	4.06 mm
