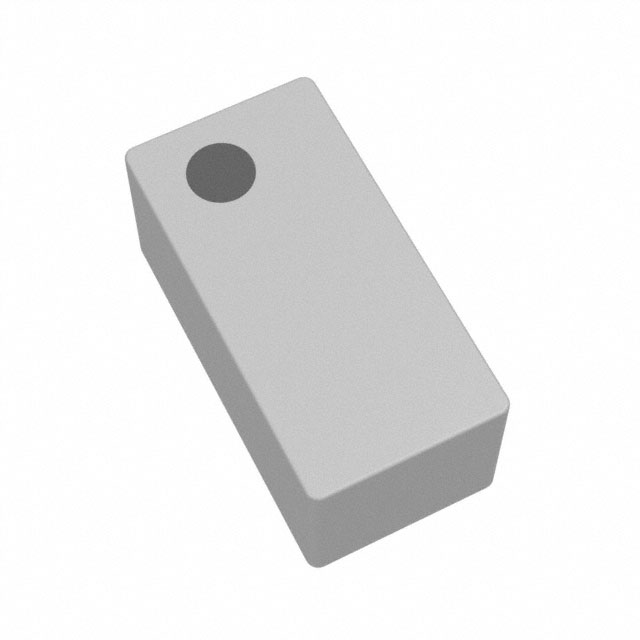

HTEK16080 Series
Manufacturer: Delta Electronics/Cyntec
Beta
⌘K
FIXED IND 1UH 2A 142 MOHM SMD
| Part | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) | Current Rating (Amps) | Material - Core | Package / Case | Package / Case | Tolerance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Inductance Frequency - Test | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics/Cyntec | Surface Mount | -55 C | 125 °C | 0.031 in | 0.8 mm | 2 A | Metal | 1608 Metric | 0603 | 20 % | 0.031 in | 1.6 mm | 0.8 mm | 0.063 " | 1 MHz | 2 A | 1 µH | Shielded | 142 mOhm |
