EBPA Series
Manufacturer: Adam Tech
Beta
⌘K
EURO BLOCK 4P
| Part | Contact Tail Length | Contact Tail Length | Contact Material | Material Flammability Rating | Insulation Height | Insulation Height | Voltage - UL | Color | Type | Termination Style | Mounting Type | Positions Per Level | Pitch | Pitch | Header Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Number of Levels | Number of Positions | Contact Mating Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

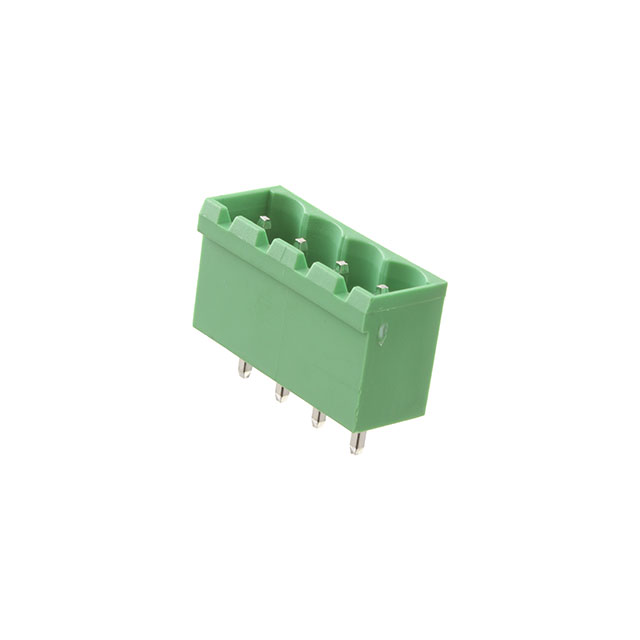

 Adam Tech | 0.157 in | 4 mm | Brass | UL94 V-0 | 0.472 " | 12 mm | 300 V | Green | Header Male Pins Shrouded (2 Side) | Solder | Through Hole | 4 | 0.197 in | 5 mm | Vertical | -40 C | 105 ░C | 1 | 4 | Tin |

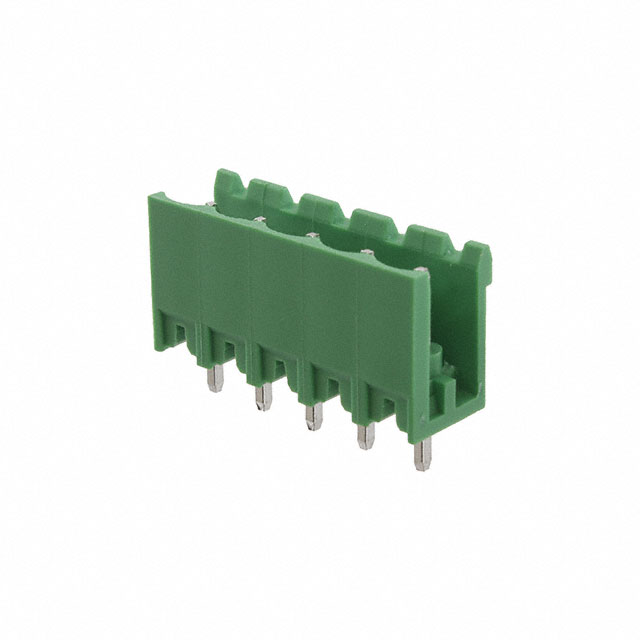

 Adam Tech | 0.157 in | 4 mm | Brass | UL94 V-0 | 0.472 " | 12 mm | 300 V | Green | Header Male Pins Shrouded (2 Side) | Solder | Through Hole | 5 | 0.197 in | 5 mm | Vertical | -40 C | 105 ░C | 1 | 5 | Tin |

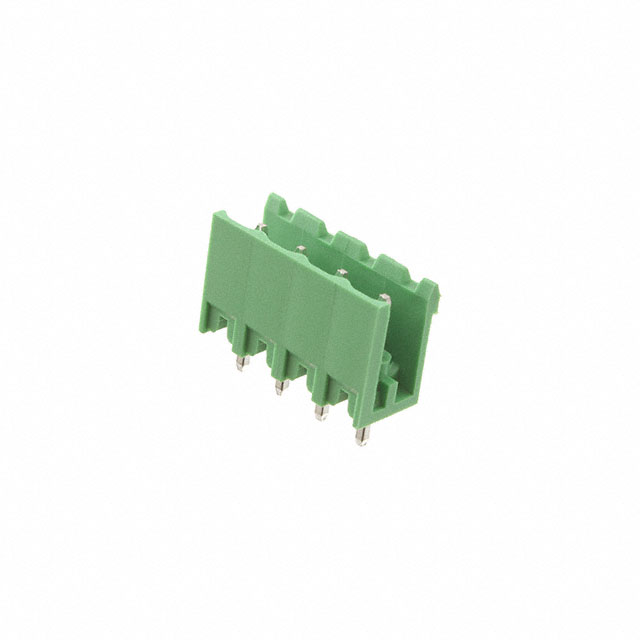

 Adam Tech | 0.157 in | 4 mm | Brass | UL94 V-0 | 0.472 " | 12 mm | 300 V | Green | Header Male Pins Shrouded (4 Side) | Solder | Through Hole | 4 | 0.2 in | 5.08 mm | Vertical | -40 C | 105 ░C | 1 | 4 | Tin |

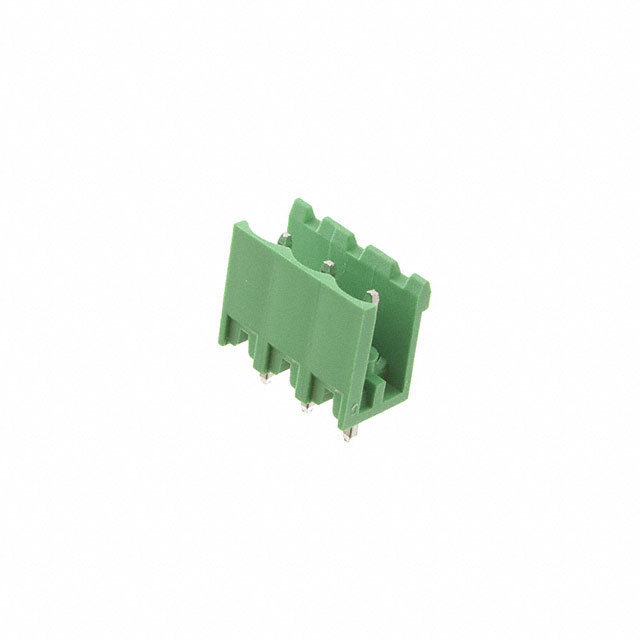

 Adam Tech | 0.157 in | 4 mm | Brass | UL94 V-0 | 0.472 " | 12 mm | 300 V | Green | Header Male Pins Shrouded (2 Side) | Solder | Through Hole | 3 | 0.2 in | 5.08 mm | Vertical | -40 C | 105 ░C | 1 | Tin | |

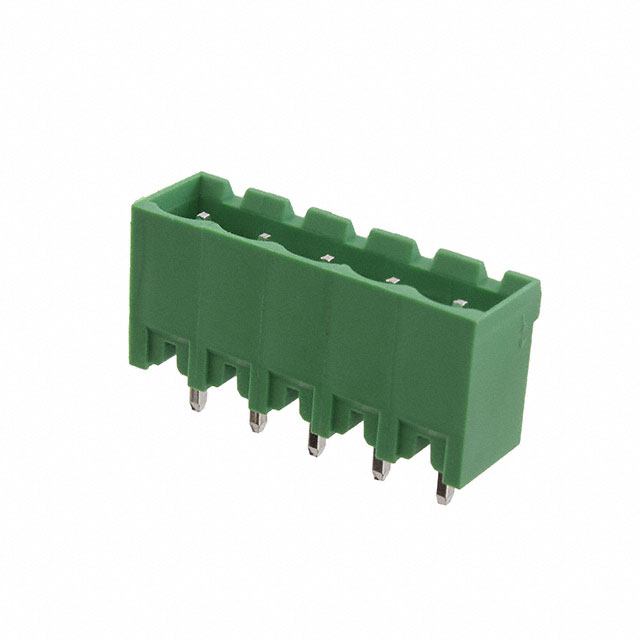

 Adam Tech | 0.157 in | 4 mm | Brass | UL94 V-0 | 0.472 " | 12 mm | 300 V | Green | Header Male Pins Shrouded (4 Side) | Solder | Through Hole | 5 | 0.2 in | 5.08 mm | Vertical | -40 C | 105 ░C | 1 | 5 | Tin |

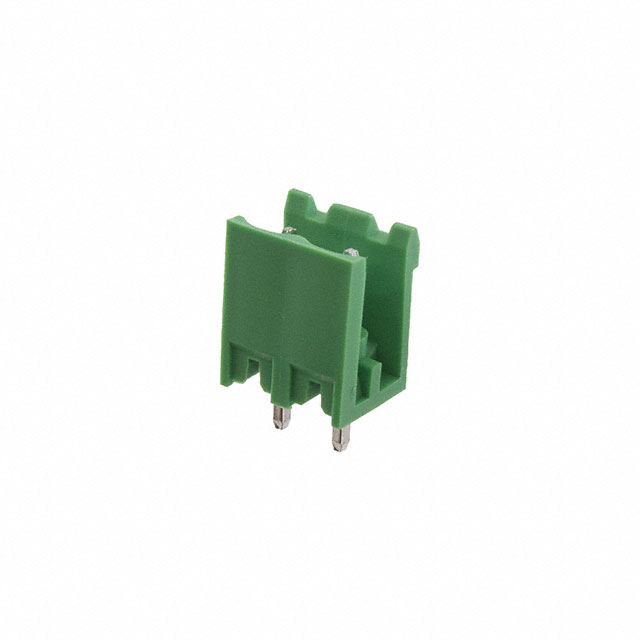

 Adam Tech | 0.157 in | 4 mm | Brass | UL94 V-0 | 0.472 " | 12 mm | 300 V | Green | Header Male Pins Shrouded (2 Side) | Solder | Through Hole | 2 | 0.2 in | 5.08 mm | Vertical | -40 C | 105 ░C | 1 | 2 | Tin |
