MAXM17516 Series

Catalog

6A, 2.4V TO 5.5V INPUT, HIGH-EFFICIENCY POWER MODULE

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Number of Outputs	Mounting Type	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Max] [custom]	Applications	Voltage - Input (Max) [Max]	Package / Case	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Features	Voltage - Input (Min) [Min]	Board Type	Outputs and Type	Outputs and Type	Supplied Contents	Frequency - Switching	Main Purpose	Regulator Topology	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output	Contents	Utilized IC / Part
Analog Devices Inc./Maxim Integrated MAXM17516ALI+T	15 mm	2.8 mm	0.35 in	9 mm	0.11 "	0.59 in	1	Surface Mount	0.75 V	1.8 V	ITE (Commercial)	5.5 V	29-SMD Module Exposed Pad	6 A	125 °C	-40 C	Non-Isolated PoL Module	OCP OTP UVLO	2.4 V
Analog Devices Inc./Maxim Integrated MAXM17516ALI+	15 mm	2.8 mm	0.35 in	9 mm	0.11 "	0.59 in	1	Surface Mount	0.75 V	1.8 V	ITE (Commercial)	5.5 V	29-SMD Module Exposed Pad	6 A	125 °C	-40 C	Non-Isolated PoL Module	OCP OTP UVLO	2.4 V

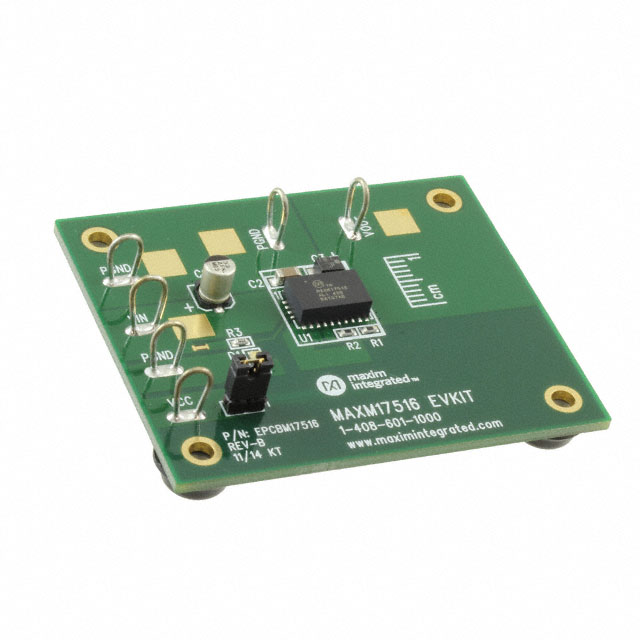

Analog Devices Inc./Maxim Integrated MAXM17516EVKIT#																				Fully Populated	1	1 Non-Isolated Output Non-Isolated	Board(s)	1 MHz	DC/DC Step Down	Buck	2.4 V	5.5 V	6 A	Board(s)	MAXM17516
