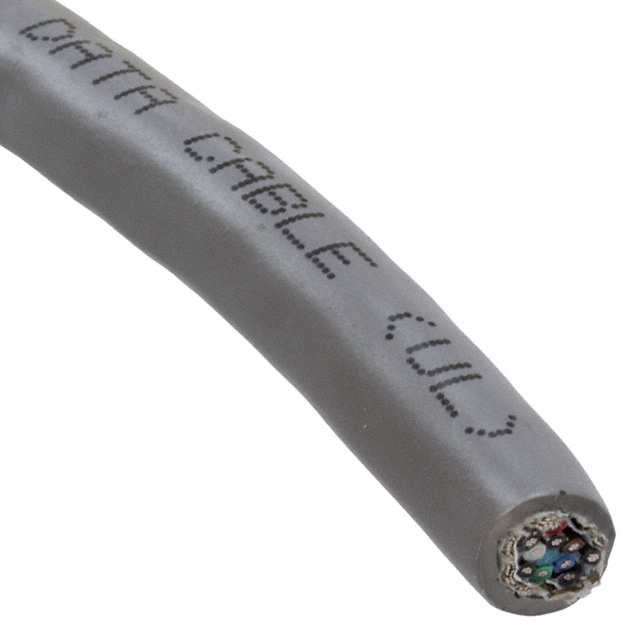

86505CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 10COND 26AWG 100'
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Jacket Color | Jacket (Insulation) Material | Ratings | Length [x] | Length [x] | Number of Conductors | Conductor Strand [x] | Conductor Strand [x] | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Conductor Insulation | Cable Type | Shield Type | Wire Gauge | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 85 % 100 % | Aluminum Copper Tinned | 7.42 mm | 0.292 in | Biological Compatibility Drain Wire | Slate | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2661 | 100 ft | 30.5 m | 10 | 34 AWG | 7 | Copper Tinned | 1.016 mm | 0.04 in | 300 VDC | Poly-Vinyl Chloride (PVC) | Multi-Pair | Braid Foil | 26 AWG | ||
ALPHA WIRE | 85 % 100 % | Aluminum Copper Tinned | 7.42 mm | 0.292 in | Biological Compatibility Drain Wire | Slate | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2661 | 10 | 34 AWG | 7 | Copper Tinned | 1.016 mm | 0.04 in | 300 VDC | Poly-Vinyl Chloride (PVC) | Multi-Pair | Braid Foil | 26 AWG | 304.8 m | 1000 ft |
