FUSE 5x20 C/CODE M 1.25A/250V (P)
Description
AI
5x20mm medium- acting glass body fuse designed to UL specification.
Beta
⌘K
FUSE 5x20 C/CODE M 1.25A/250V (P)
FUSE 5x20 C/CODE M 1.25A/250V (P)
| Part | DC Cold Resistance | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | Mounting Type | Current Rating (Amps) | Voltage Rating - AC | Fuse Type | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Response Time | Package / Case [y] | Package / Case | Package / Case [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

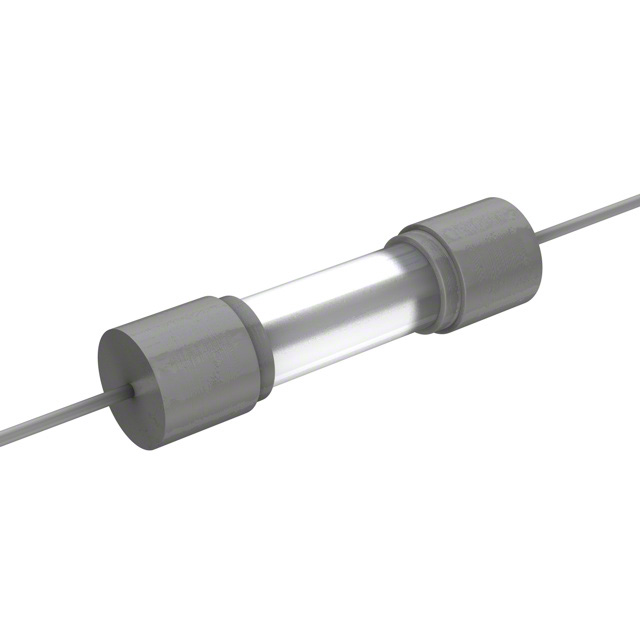

 LITTELFUSE | 0.1262 Ohms | -55 C | 125 °C | 22.5 mm | 5.8 mm | 0.228 " | 0.886 in | Through Hole | 1.25 A | 250 V | Cartridge Glass | 100 A | 3.39 | CE CSA K-Mark PSE UL | Medium Blow | 20 mm | Axial | 5 mm |

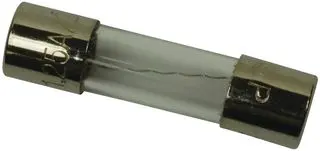

 LITTELFUSE | -55 C | 125 °C | 20 mm | 5.2 mm | 0.205 in | 0.787 " | Requires Holder | 1.25 A | 250 V | Cartridge Glass | 100 A | 3.39 | CE CSA K-Mark PSE UL | Medium Blow | 20 mm | 5 mm |
