102557 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 40POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Style	Contact Finish - Post	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Contact Length - Post	Contact Length - Post	Contact Shape	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Number of Positions	Overall Contact Length	Overall Contact Length	Fastening Type	Number of Rows [custom]	Current Rating (Amps)	Connector Type	Termination	Insulation Material	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Insulation Height	Insulation Height	Insulation Color	Number of Positions Loaded

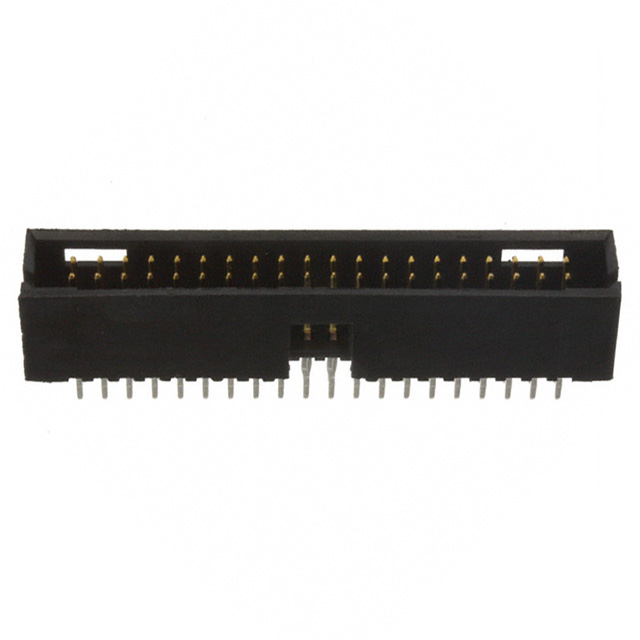

TE Connectivity AMP Connectors 5-102557-1	2.54 µm	100 µin	Male Pin	Board to Board Cable	Tin	Through Hole	-55 C	105 ░C	0.1 in	2.54 mm	Copper Alloy	0.76 Ám	30 Áin	Shrouded - 4 Wall	6.35 mm	0.25 in	Square	UL94 V-0	0.1 "	2.54 mm	40	0.66 in	16.76 mm	Detent Lock	2	3 A	Header	Press-Fit Solder	Thermoplastic	0.32 in	8.13 mm	Gold	0.44 in	11.18 mm	Black	All

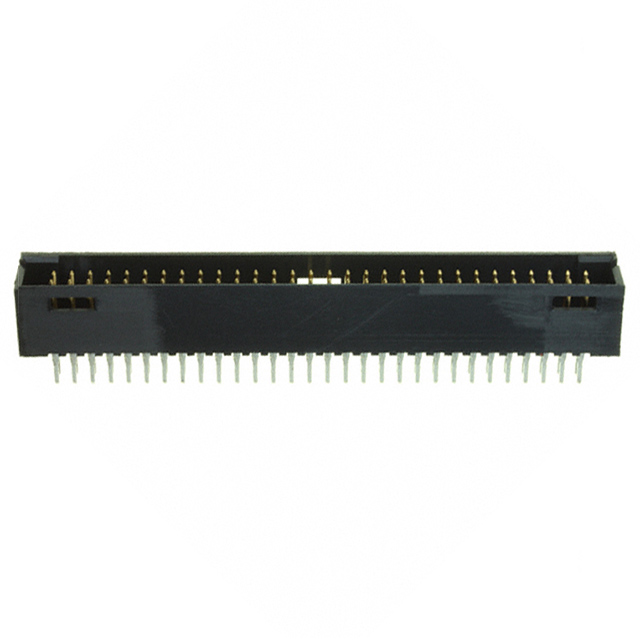

TE Connectivity AMP Connectors 102557-7	2.54 µm	100 µin	Male Pin	Board to Board Cable	Tin-Lead	Through Hole	-55 C	105 ░C	0.1 in	2.54 mm	Copper Alloy	0.76 Ám	30 Áin	Shrouded - 4 Wall	6.35 mm	0.25 in	Square	UL94 V-0	0.1 "	2.54 mm	60	0.66 in	16.76 mm	Detent Lock	2	3 A	Header	Press-Fit Solder	Thermoplastic	0.32 in	8.13 mm	Gold	0.44 in	11.18 mm	Black	All
TE Connectivity AMP Connectors 5-102557-9	2.54 µm	100 µin	Male Pin	Board to Board Cable	Tin	Through Hole	-55 C	105 ░C	0.1 in	2.54 mm	Copper Alloy	0.76 Ám	30 Áin	Shrouded - 4 Wall	6.35 mm	0.25 in	Square	UL94 V-0	0.1 "	2.54 mm	10	0.66 in	16.76 mm	Detent Lock	2	3 A	Header	Press-Fit Solder	Thermoplastic	0.32 in	8.13 mm	Gold	0.44 in	11.18 mm	Black	All

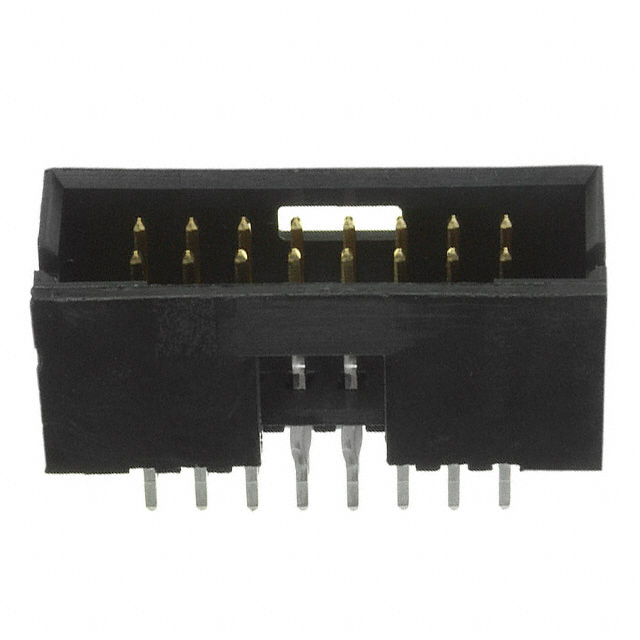

TE Connectivity AMP Connectors 1-102557-4	2.54 µm	100 µin	Male Pin	Board to Board Cable	Tin-Lead	Through Hole	-55 C	105 ░C	0.1 in	2.54 mm	Copper Alloy	0.76 Ám	30 Áin	Shrouded - 4 Wall	6.35 mm	0.25 in	Square	UL94 V-0	0.1 "	2.54 mm	16	0.66 in	16.76 mm	Detent Lock	2	3 A	Header	Press-Fit Solder	Thermoplastic	0.32 in	8.13 mm	Gold	0.44 in	11.18 mm	Black	All

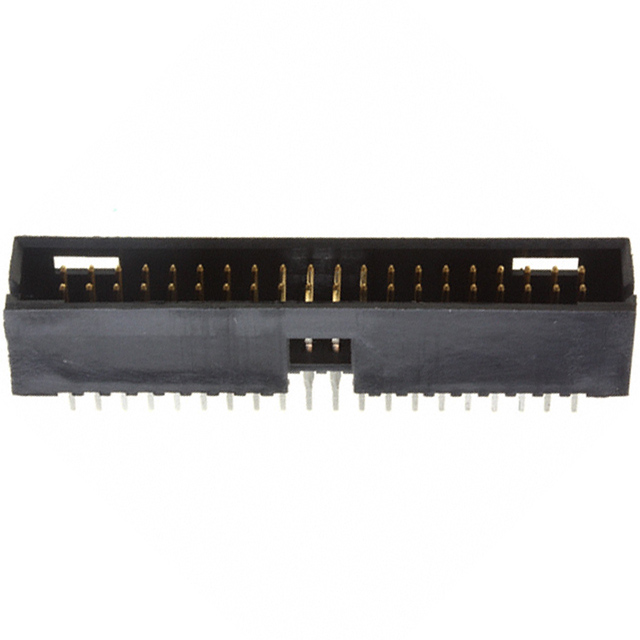

TE Connectivity AMP Connectors 102557-1	2.54 µm	100 µin	Male Pin	Board to Board Cable	Tin-Lead	Through Hole	-55 C	105 ░C	0.1 in	2.54 mm	Copper Alloy	0.76 Ám	30 Áin	Shrouded - 4 Wall	6.35 mm	0.25 in	Square	UL94 V-0	0.1 "	2.54 mm	40	0.66 in	16.76 mm	Detent Lock	2	3 A	Header	Press-Fit Solder	Thermoplastic	0.32 in	8.13 mm	Gold	0.44 in	11.18 mm	Black	All

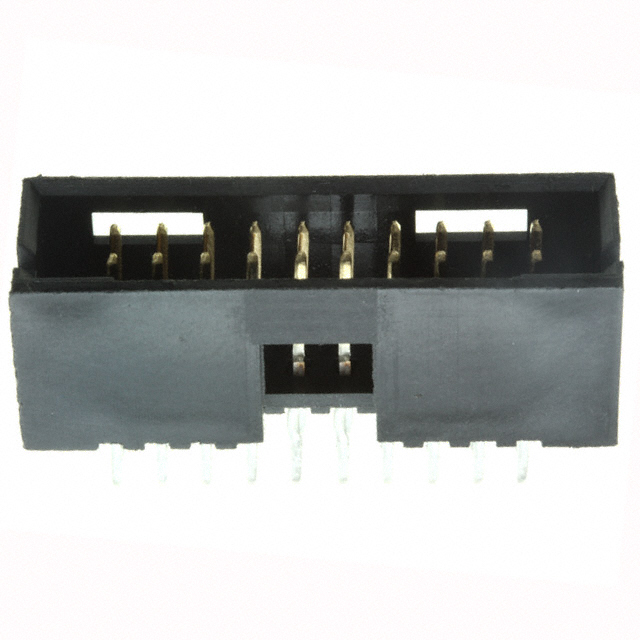

TE Connectivity AMP Connectors 102557-2	2.54 µm	100 µin	Male Pin	Board to Board Cable	Tin-Lead	Through Hole	-55 C	105 ░C	0.1 in	2.54 mm	Copper Alloy	0.76 Ám	30 Áin	Shrouded - 4 Wall	6.35 mm	0.25 in	Square	UL94 V-0	0.1 "	2.54 mm	20	0.66 in	16.76 mm	Detent Lock	2	3 A	Header	Press-Fit Solder	Thermoplastic	0.32 in	8.13 mm	Gold	0.44 in	11.18 mm	Black	All

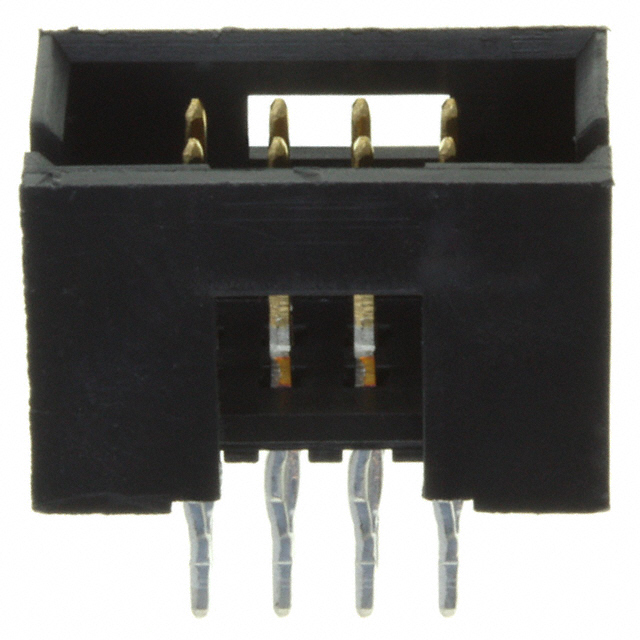

TE Connectivity AMP Connectors 1-102557-1	2.54 µm	100 µin	Male Pin	Board to Board Cable	Tin-Lead	Through Hole	-55 C	105 ░C	0.1 in	2.54 mm	Copper Alloy	0.76 Ám	30 Áin	Shrouded - 4 Wall	6.35 mm	0.25 in	Square	UL94 V-0	0.1 "	2.54 mm	8	0.66 in	16.76 mm	Detent Lock	2	3 A	Header	Press-Fit Solder	Thermoplastic	0.32 in	8.13 mm	Gold	0.44 in	11.18 mm	Black	All

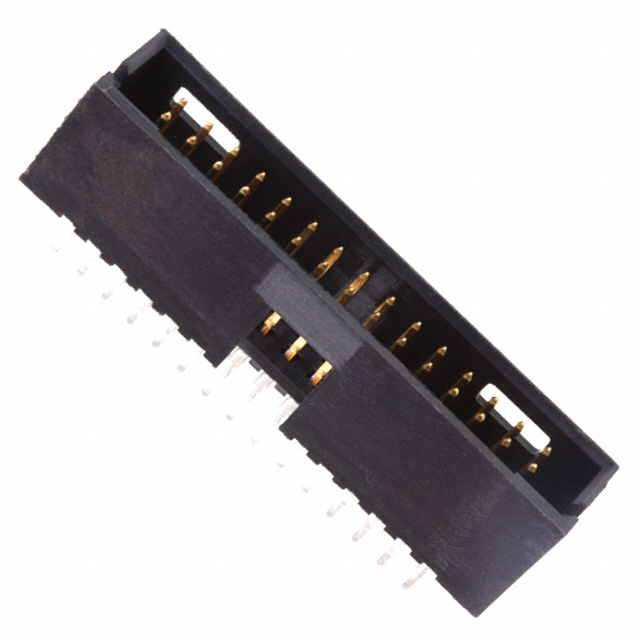

TE Connectivity AMP Connectors 102557-4	2.54 µm	100 µin	Male Pin	Board to Board Cable	Tin-Lead	Through Hole	-55 C	105 ░C	0.1 in	2.54 mm	Copper Alloy	0.76 Ám	30 Áin	Shrouded - 4 Wall	6.35 mm	0.25 in	Square	UL94 V-0	0.1 "	2.54 mm	30	0.66 in	16.76 mm	Detent Lock	2	3 A	Header	Press-Fit Solder	Thermoplastic	0.32 in	8.13 mm	Gold	0.44 in	11.18 mm	Black	All

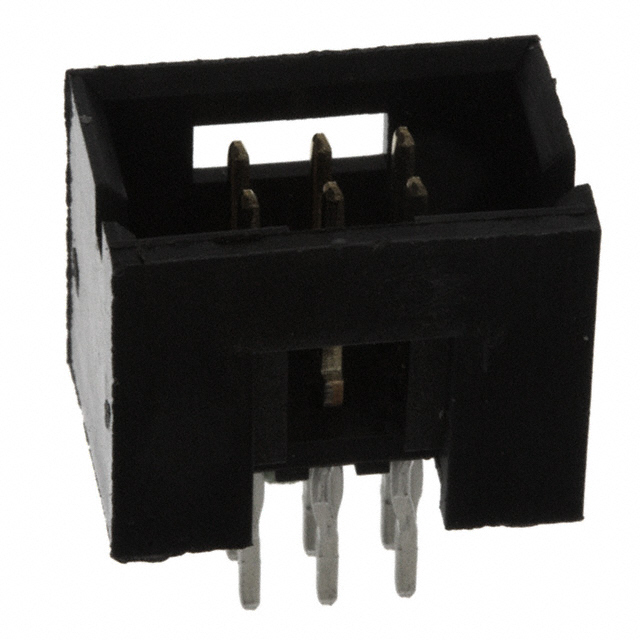

TE Connectivity AMP Connectors 6-102557-0	2.54 µm	100 µin	Male Pin	Board to Board Cable	Tin	Through Hole	-55 C	105 ░C	0.1 in	2.54 mm	Copper Alloy	0.76 Ám	30 Áin	Shrouded - 4 Wall	6.35 mm	0.25 in	Square	UL94 V-0	0.1 "	2.54 mm	6	0.66 in	16.76 mm	Detent Lock	2	3 A	Header	Press-Fit Solder	Thermoplastic	0.32 in	8.13 mm	Gold	0.44 in	11.18 mm	Black	All
TE Connectivity AMP Connectors 1-102557-3	2.54 µm	100 µin	Male Pin	Board to Board Cable	Tin-Lead	Through Hole	-55 C	105 ░C	0.1 in	2.54 mm	Copper Alloy	0.76 Ám	30 Áin	Shrouded - 4 Wall	6.35 mm	0.25 in	Square	UL94 V-0	0.1 "	2.54 mm	14	0.66 in	16.76 mm	Detent Lock	2	3 A	Header	Press-Fit Solder	Thermoplastic	0.32 in	8.13 mm	Gold	0.44 in	11.18 mm	Black	All
