EZC22 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

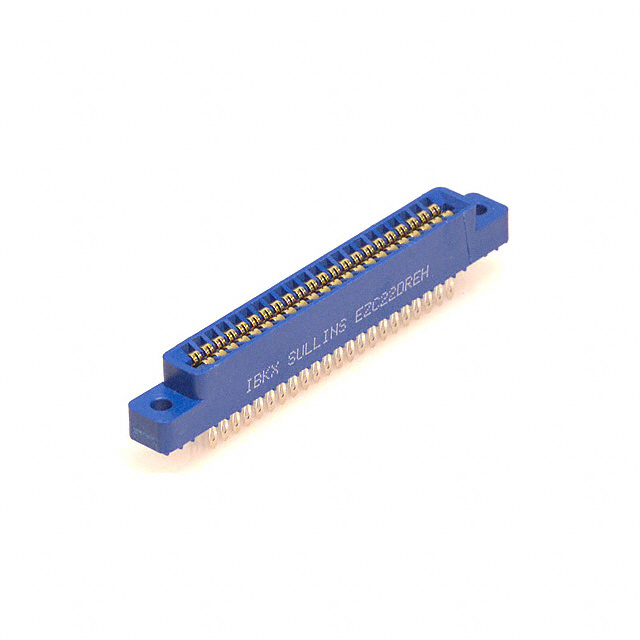

CONN EDGE DUAL FMALE 44POS 0.100
| Part | Material - Insulation | Color | Card Thickness | Card Thickness | Contact Material | Contact Finish | Number of Rows [custom] | Pitch | Pitch | Contact Type | Number of Positions/Bay/Row | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Gender | Number of Positions | Read Out | Card Type | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | Blue | 1.57 mm | 0.062 in | Phosphor Bronze | Gold | 2 | 0.1 " | 2.54 mm | Full Bellows | 22 | Solder Eyelet(s) | -65 ░C | 125 °C | 0.25 Ám | 10 Áin | Panel Mount | Female | 44 | Dual | Non Specified - Dual Edge | 0.125 " | 3.18 mm | |
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | Blue | 1.57 mm | 0.062 in | Phosphor Bronze | Gold | 2 | 0.1 " | 2.54 mm | Full Bellows | 22 | Solder | -65 ░C | 125 °C | 0.25 Ám | 10 Áin | Right Angle Through Hole | Female | 44 | Dual | Non Specified - Dual Edge | 0.125 " | 3.18 mm | Side Mount Opening Unthreaded |
