NRPN031 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HEADER R/A 3POS 2MM
| Part | Contact Finish Thickness - Post | Insulation Material | Connector Type | Mounting Type | Insulation Height [z] | Insulation Height [z] | Voltage Rating | Material Flammability Rating | Contact Finish - Post | Number of Positions Loaded | Contact Type | Number of Rows | Style | Contact Finish - Mating | Contact Length - Mating | Contact Length - Mating | Termination | Contact Finish Thickness - Mating | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post [custom] | Contact Length - Post | Fastening Type | Insulation Color | Contact Material | Shrouding | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Overall Contact Length | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

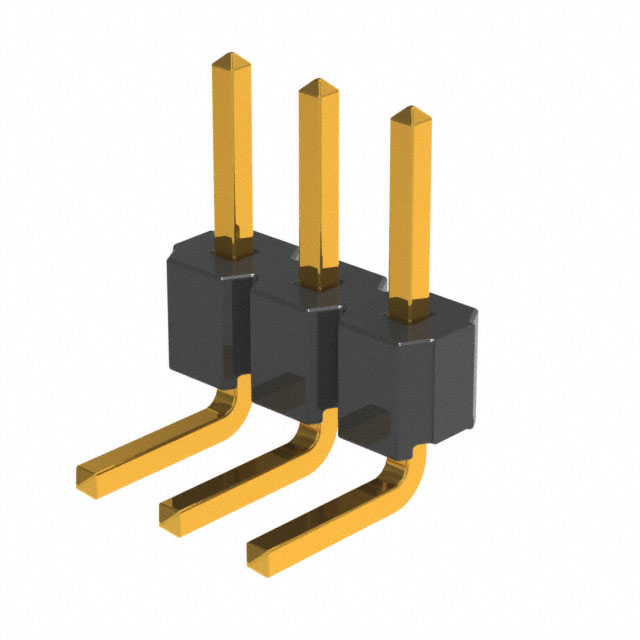

 Sullins Connector Solutions | Flash | Nylon 6T Polyamide (PA6T) | Header | Right Angle Through Hole | 2 mm | 0.079 in | 150 VDC | UL94 V-0 | Gold | All | Male Pin | 1 | Board to Board Cable | Gold | 0.141 in | 3.6 mm | Solder | Flash | Square | -40 C | 105 ░C | 0.11 in | 2.79 mm | Push-Pull | Black | Brass | Unshrouded | 2 A | 0.079 " | 2 mm | ||

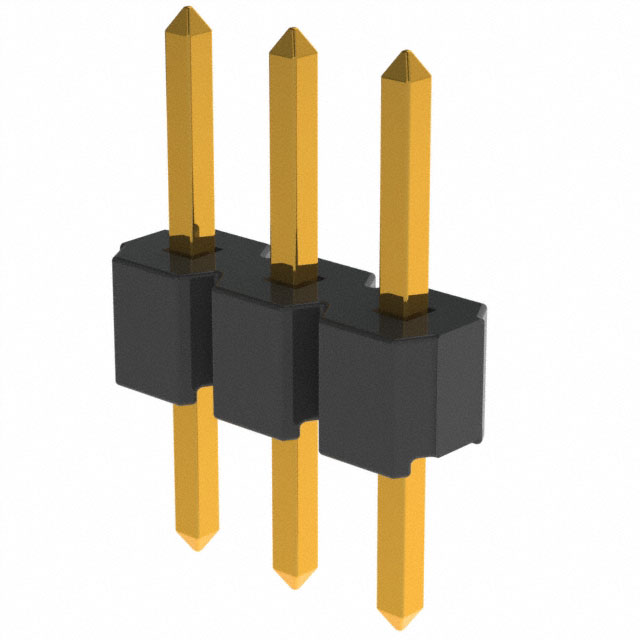

 Sullins Connector Solutions | Flash | Nylon 6T Polyamide (PA6T) | Header | Through Hole | 2 mm | 0.079 in | 150 VDC | UL94 V-0 | Gold | All | Male Pin | 1 | Board to Board Cable | Gold | 0.141 in | 3.6 mm | Solder | Flash | Square | -40 C | 105 ░C | 0.11 in | 2.79 mm | Push-Pull | Black | Brass | Unshrouded | 2 A | 0.079 " | 2 mm | 8.4 mm | 0.331 in |
