396-028 Series
Manufacturer: EDAC Inc.
Beta
⌘K
396 SERIES (.125" (3.18MM) CONTA
| Part | Termination Rows [custom] | Material - Insulation | Pitch | Pitch | Flange Feature [diameter] | Flange Feature [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Gender | Contact Material | Number of Rows [custom] | Termination | Number of Positions | Number of Positions/Bay/Row | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Read Out | Card Type | Color | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Termination Rows | Flange Feature | Number of Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | 3.18 mm | 0.125 in | 0.156 " | 3.96 mm | -40 C | 105 ░C | Gold | Female | Copper Alloy | 2 | Solder | 28 | 14 | Through Hole | 0.25 Ám | 10 Áin | Dual | Non Specified - Dual Edge | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | ||||
 EDAC Inc. | Polyester Thermoplastic | 3.18 mm | 0.125 in | -40 C | 105 ░C | Gold | Female | Copper Alloy | Solder | 28 | 28 | Through Hole | 0.25 Ám | 10 Áin | Single | Non Specified - Single Edge | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 1 | 4-40 Threaded Insert Top Mount Opening | 1 | |||||
 EDAC Inc. | Polyester Thermoplastic | 3.18 mm | 0.125 in | -40 C | 105 ░C | Gold | Female | Copper Alloy | Solder Wire Wrap | 28 | 28 | Right Angle Through Hole | 0.25 Ám | 10 Áin | Single | Non Specified - Single Edge | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 1 | Flush Mount M3 Threaded Insert Top Opening | 1 | |||||
 EDAC Inc. | Polyester Thermoplastic | 3.18 mm | 0.125 in | -40 C | 105 ░C | Gold | Female | Copper Alloy | Solder Wire Wrap | 28 | 28 | Right Angle Through Hole | 0.25 Ám | 10 Áin | Single | Non Specified - Single Edge | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 1 | 4-40 Threaded Insert Top Mount Opening | 1 | |||||
 EDAC Inc. | Polyester Thermoplastic | 3.18 mm | 0.125 in | 0.128 " | 3.25 mm | -40 C | 105 ░C | Gold | Female | Copper Alloy | Solder | 28 | 28 | Through Hole | 0.25 Ám | 10 Áin | Single | Non Specified - Single Edge | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 1 | Side Mount Opening Unthreaded | 1 | |||
 EDAC Inc. | Polyester Thermoplastic | 3.18 mm | 0.125 in | -40 C | 105 ░C | Gold | Female | Copper Alloy | Solder | 28 | 28 | Through Hole | 0.25 Ám | 10 Áin | Single | Non Specified - Single Edge | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 1 | M3 Threaded Insert Top Mount Opening | 1 | |||||
 EDAC Inc. | Polyester Thermoplastic | 3.18 mm | 0.125 in | -40 C | 105 ░C | Gold | Female | Copper Alloy | Wire Wrap | 28 | 28 | Through Hole | 0.25 Ám | 10 Áin | Single | Non Specified - Single Edge | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 1 | 4-40 Threaded Insert Top Mount Opening | 1 | |||||

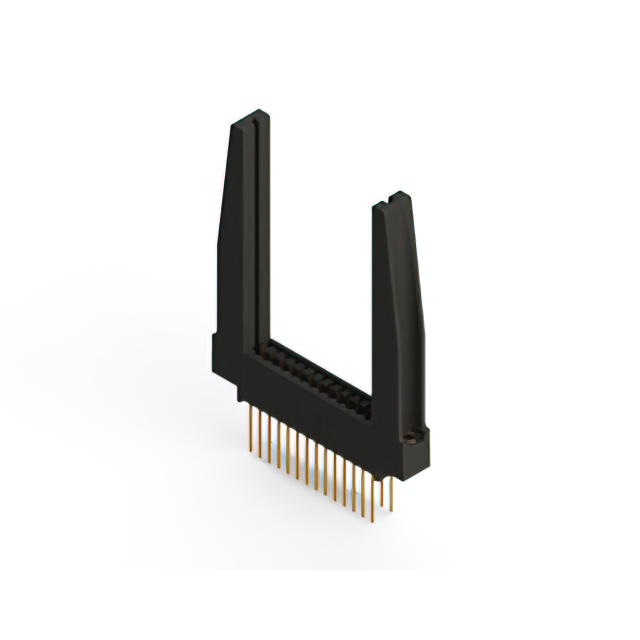

 EDAC Inc. | 2 | Polyester Thermoplastic | 3.18 mm | 0.125 in | -40 C | 105 ░C | Gold | Female | Copper Alloy | 2 | Wire Wrap | 28 | 14 | Through Hole | 0.25 Ám | 10 Áin | Dual | Non Specified - Dual Edge | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||||
 EDAC Inc. | Polyester Thermoplastic | 3.18 mm | 0.125 in | 0.128 " | 3.25 mm | -40 C | 105 ░C | Gold | Female | Copper Alloy | Solder | 28 | 28 | Through Hole | 0.25 Ám | 10 Áin | Single | Non Specified - Single Edge | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 1 | 1 | ||||
 EDAC Inc. | 2 | Polyester Thermoplastic | 3.18 mm | 0.125 in | 0.116 " | 2.95 mm | -40 C | 105 ░C | Gold | Female | Copper Alloy | 2 | Wire Wrap | 28 | 14 | Through Hole | 0.25 Ám | 10 Áin | Dual | Non Specified - Dual Edge | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Floating Bobbin Top Mount Opening |
