BCD 160 Series

Catalog

FRONT FRAME W/COVER 178X199X19MM

Part	Material	Color	For Use With/Related Products	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Features	Design	Material Flammability Rating	Area (L x W)	Area (L x W)	Size / Dimension [y]	Thickness	Thickness	Container Type	Height [z]	Height [z]
Bopla Enclosures BCD 160 FO-K-7024	Plastic Polycarbonate	Gray	BOCARD 160 System	Frame	19 mm	178 mm	199 mm	7.008 in	0.748 in	7.835 in
Bopla Enclosures BCD 160 OT-G-7024	Plastic Polycarbonate	Clear Gray Frame	BOCARD 160 System	Cover Lid	36.5 mm	179 mm	199 mm	7.047 "	1.437 in	7.835 in	Hinged
Bopla Enclosures BCD 160 OT-G-7035	Plastic Polycarbonate	Clear Gray Frame	BOCARD 160 System	Cover Lid	36.5 mm	179 mm	199 mm	7.047 "	1.437 in	7.835 in	Hinged

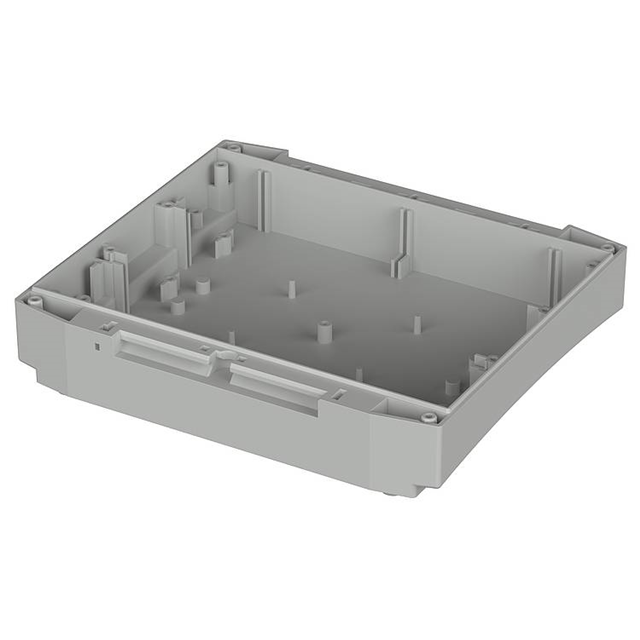

Bopla Enclosures BCD 160 UT-0.5-7035	ABS Plastic	Gray					195 mm	6.811 "		7.677 in	Card Guides PCB Supports	Open End(s)	UL94 HB	52.3 in²	337 cm²	173 mm	0.118 in	3 mm	Box	35 mm	1.378 in
Bopla Enclosures BCD 160 FO-7024	Plastic Polycarbonate	Gray	BOCARD 160 System	Frame	19 mm	178 mm	199 mm	7.008 in	0.748 in	7.835 in

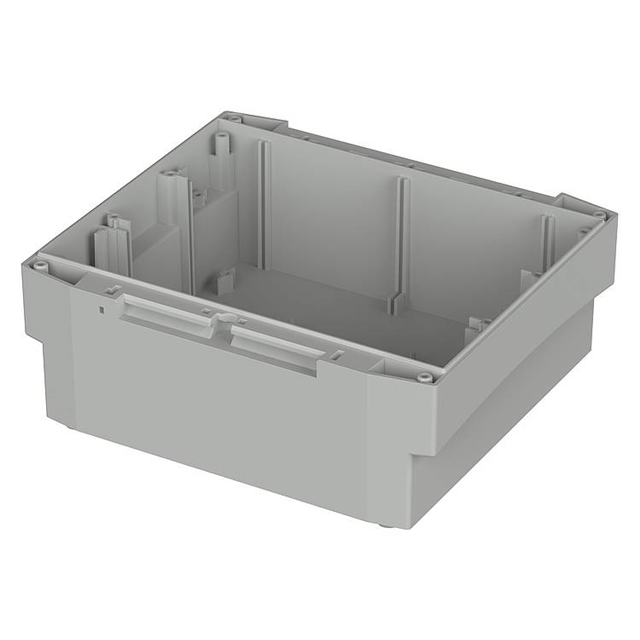

Bopla Enclosures BCD 160 UT-7035	ABS Plastic	Gray					195 mm	6.811 "		7.677 in	Card Guides PCB Supports	Open End(s)	UL94 HB	52.3 in²	337 cm²	173 mm	0.118 in	3 mm	Box	70 mm	2.756 in
Bopla Enclosures BCD 160 KRD-7024	Plastic Polycarbonate	Gray	BOCARD 160 System	Cover Lid	19.5 mm	44 mm	188 mm	1.732 in	0.768 in	7.402 in
Bopla Enclosures BCD 160 KRD-7035	Plastic Polycarbonate	Gray	BOCARD 160 System	Cover Lid	19.5 mm	44 mm	188 mm	1.732 in	0.768 in	7.402 in
Bopla Enclosures BCD 160 FO-7035	Plastic Polycarbonate	Gray	BOCARD 160 System	Frame	19 mm	178 mm	199 mm	7.008 in	0.748 in	7.835 in
Bopla Enclosures BCD 160 FO-K-7035	Plastic Polycarbonate	Gray	BOCARD 160 System	Frame	19 mm	178 mm	199 mm	7.008 in	0.748 in	7.835 in
