JN516 Series

Catalog

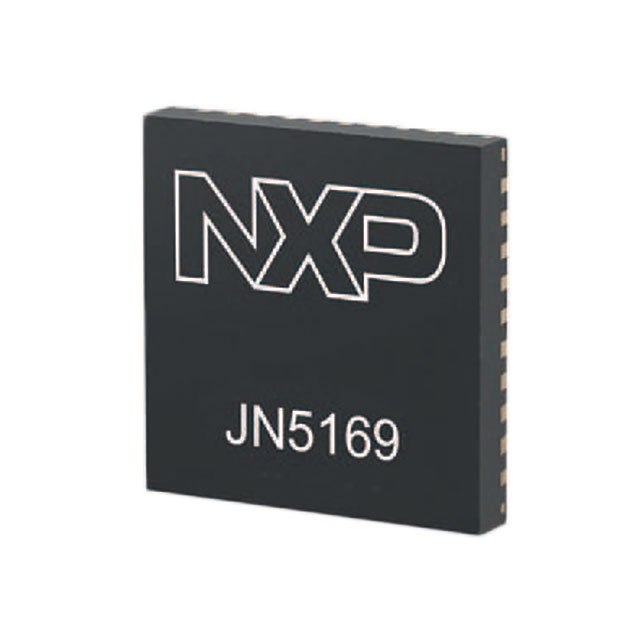

JN5169 GENERIC EXPANSION KIT

Part	For Use With/Related Products	Frequency	Type	Supplied Contents	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Size	Serial Interfaces	Frequency [Max]	Frequency [Min]	Sensitivity	Current - Transmitting	Current - Receiving	Data Rate	Power - Output	Operating Temperature [Max]	Operating Temperature [Min]	Modulation	RF Family/Standard	Protocol	Antenna Type	Mounting Type	Package / Case	Memory Size [custom]	Memory Size [custom]	Memory Size [custom]
Freescale Semiconductor - NXP JN5169XK010UL	JN5169	2.4 GHz	802.15.4 (ZigBee®) Transceiver	Board(s)
Freescale Semiconductor - NXP JN5168MOD/02Z					3.6 V	2 V	4 kB 32 kB 256 kB	I2C SPI UART	2.5 GHz	2.4 GHz	-95 dBm	15 mA	17 mA	1 Mbps	2.5 dBm	85 °C	-40 °C	O-QPSK	802.15.4	Zigbee®	Integrated Trace

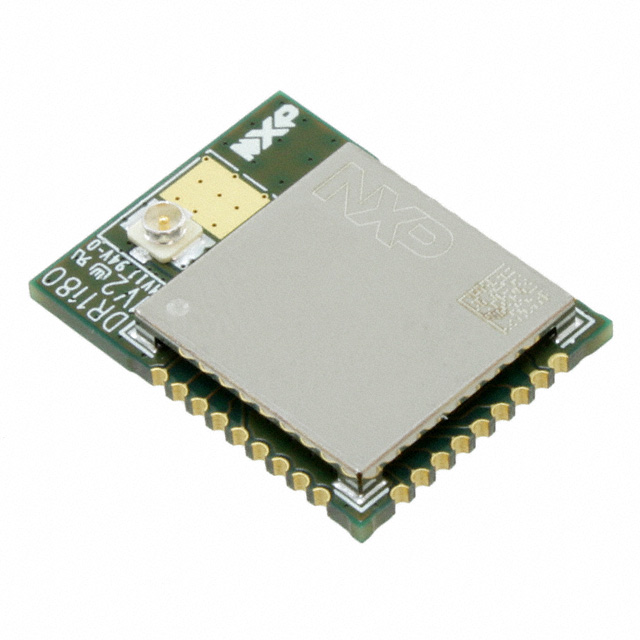

Freescale Semiconductor - NXP JN5168-001-M03Z		2.4 GHz			3.6 V	2 V	4 kB 32 kB 256 kB	I2C SPI UART			-95 dBm	15.3 mA	17 mA		2.5 dBm	85 °C	-40 °C	O-QPSK	802.15.4	Zigbee®	Antenna Not Included U.FL	Surface Mount	27-SMD Module
Freescale Semiconductor - NXP JN5168-001-M06Z		2.4 GHz			3.6 V	2 V	4 kB 32 kB 256 kB	I2C SPI UART			-100 dBm	175 mA	22 mA		22 dBm	85 °C	-40 °C	O-QPSK	802.15.4	Zigbee®	Antenna Not Included U.FL	Surface Mount	27-SMD Module
Freescale Semiconductor - NXP JN5168-RD6040/S1Z	JN5168	2.4 GHz	802.15.4 (ZigBee®) Transceiver	Board(s)
Freescale Semiconductor - NXP JN5169-001-M06-2Z					3.6 V	2 V		I2C SPI UART	2.5 GHz	2.4 GHz		153 mA	21.5 mA		10 dBm	85 °C	-40 °C		802.15.4	Zigbee®	Antenna Not Included U.FL	Surface Mount	27-SMD Module	32 kB	512 kB	4 kB
