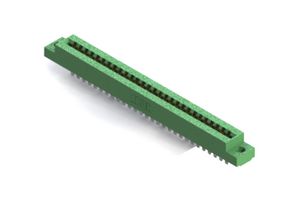

316-028 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 56POS 0.156
| Part | Termination Rows | Material - Insulation | Pitch | Pitch | Contact Material | Color | Card Thickness [Max] | Card Thickness [Min] | Gender | Contact Finish | Card Type | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Mounting Type | Termination | Number of Positions/Bay/Row | Number of Positions | Contact Type | Flange Feature | Features | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Copper Alloy | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Tin | Non Specified - Dual Edge | 2 | -40 C | 105 ░C | Dual | Through Hole | Solder | 28 | 56 | Cantilever | ||||||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Copper Alloy | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Tin | Non Specified - Dual Edge | 2 | -40 C | 105 ░C | Dual | Panel Mount Through Hole | Solder | 28 | 56 | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Copper Alloy | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Gold | Non Specified - Dual Edge | 2 | -40 C | 105 ░C | Dual | Panel Mount | Solder Eyelet(s) | 28 | 56 | Cantilever | Flush Mount M3 Threaded Insert Top Opening | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Copper Alloy | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Gold | Non Specified - Dual Edge | 2 | -40 C | 105 ░C | Dual | Through Hole | Solder | 28 | 56 | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Copper Alloy | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Tin | Non Specified - Dual Edge | 2 | -40 C | 105 ░C | Dual | Panel Mount | Solder Eyelet(s) | 28 | 56 | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Copper Alloy | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Tin | Non Specified - Dual Edge | 2 | -40 C | 105 ░C | Dual | Panel Mount | Solder Eyelet(s) | 28 | 56 | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Copper Alloy | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Tin | Non Specified - Dual Edge | 2 | -40 C | 105 ░C | Dual | Panel Mount Through Hole | Solder | 28 | 56 | Cantilever | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Copper Alloy | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Tin | Non Specified - Dual Edge | 2 | -40 C | 105 ░C | Dual | Panel Mount Through Hole | Solder | 28 | 56 | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Copper Alloy | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Gold | Non Specified - Dual Edge | 2 | -40 C | 105 ░C | Dual | Free Hanging (In-Line) | Solder Eyelet(s) | 28 | 56 | Cantilever | 0.25 Ám | 10 Áin | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Copper Alloy | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Gold | Non Specified - Dual Edge | 2 | -40 C | 105 ░C | Dual | Panel Mount | Solder Eyelet(s) | 28 | 56 | Cantilever | Flush Mount Top Opening Unthreaded | 0.25 Ám | 10 Áin | 0.156 " | 3.96 mm |
