EZC10 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN EDGE DUAL FMALE 20POS 0.100

Part	Contact Type	Number of Positions/Bay/Row [custom]	Contact Material	Mounting Type	Color	Contact Finish Thickness	Contact Finish Thickness	Card Type	Card Thickness	Card Thickness	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Material - Insulation	Number of Positions	Termination	Pitch [x]	Pitch [x]	Read Out	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Gender	Contact Finish
Sullins Connector Solutions EZC10DRAS	Full Bellows	10	Phosphor Bronze	Through Hole Right Angle	Blue	10 Áin	0.25 Ám	Non Specified - Dual Edge	0.062 in	1.57 mm	2	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)	20	Solder	2.54 mm	0.1 in	Dual	Side Mount Opening Unthreaded	0.125 in	3.18 mm	Female	Gold
Sullins Connector Solutions EZC10DCWN	Hairpin Bellows	10	Phosphor Bronze	Through Hole	Blue	10 Áin	0.25 Ám	Non Specified - Dual Edge	0.062 in	1.57 mm	2	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)	20	Solder	2.54 mm	0.1 in	Dual				Female	Gold
Sullins Connector Solutions EZC10DRTH	Full Bellows	10	Phosphor Bronze	Through Hole	Blue	10 Áin	0.25 Ám	Non Specified - Dual Edge	0.062 in	1.57 mm	2	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)	20	Solder	2.54 mm	0.1 in	Dual	Top Mount Opening Unthreaded	0.125 in	3.18 mm	Female	Gold

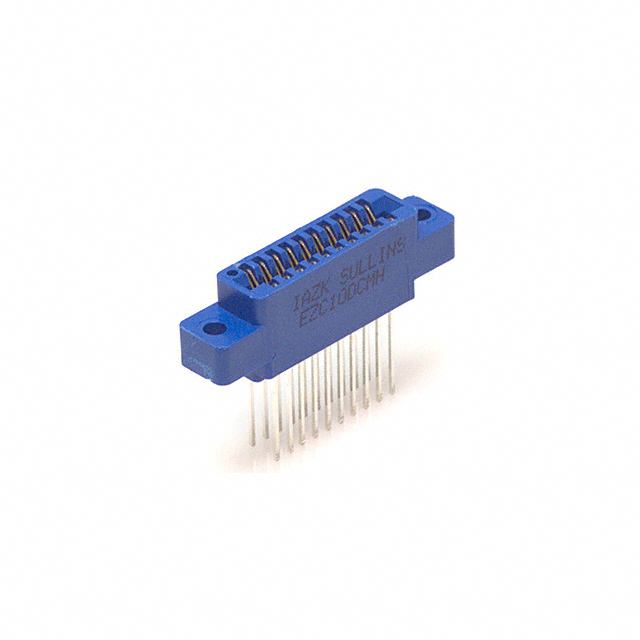

Sullins Connector Solutions EZC10DCMH	Hairpin Bellows	10	Phosphor Bronze	Through Hole	Blue	10 Áin	0.25 Ám	Non Specified - Dual Edge	0.062 in	1.57 mm	2	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)	20	Wire Wrap	2.54 mm	0.1 in	Dual	Top Mount Opening Unthreaded	0.125 in	3.18 mm	Female	Gold

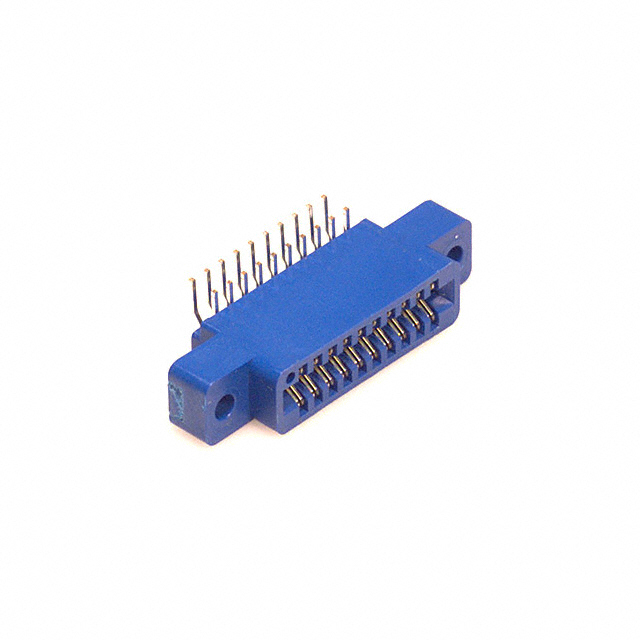

Sullins Connector Solutions EZC10DCAH	Hairpin Bellows	10	Phosphor Bronze	Through Hole Right Angle	Blue	10 Áin	0.25 Ám	Non Specified - Dual Edge	0.062 in	1.57 mm	2	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)	20	Solder	2.54 mm	0.1 in	Dual	Top Mount Opening Unthreaded	0.125 in	3.18 mm	Female	Gold
