LNJ115W Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

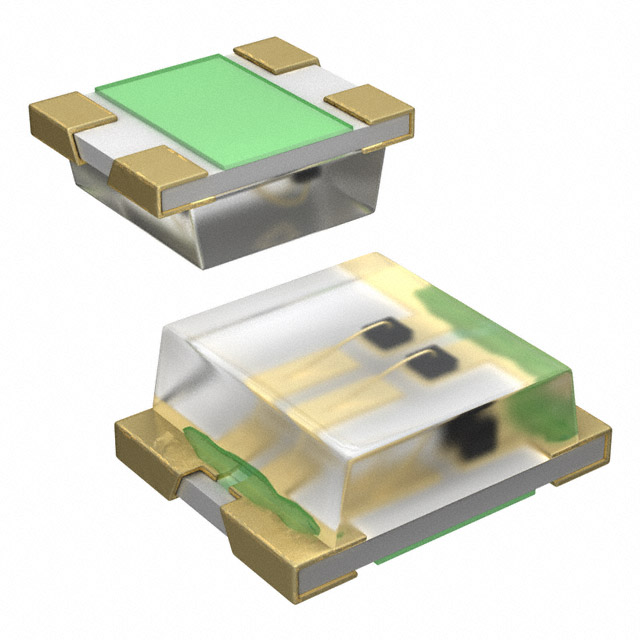

LED BLUE/RED SMD

Part	Wavelength - Peak	Current - Test	Wavelength - Dominant	Height (Max) [Max] [z]	Color	Lens Style	Size / Dimension [y]	Size / Dimension [x]	Configuration	Lens Size [y]	Lens Size [x]	Voltage - Forward (Vf) (Typ)	Package / Case	Mounting Type	Millicandela Rating	Supplier Device Package	Millicandela Rating [custom]	Millicandela Rating [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Wavelength - Peak [custom]	Current - Test [custom]	Current - Test [custom]	Millicandela Rating [custom]	Voltage - Forward (Vf) (Typ) [custom]
Panasonic Industrial Automation Sales LNJ115W85RA1	465 nm 645 nm	5 mA 10 mA	470 nm 630 nm	0.65 mm	Blue Red	Rectangle with Flat Top	1.25 mm	1.6 mm	Common Cathode	1.25 mm	1.1 mm	1.92 V 2.9 V	0605 (1613 Metric)	Surface Mount	12 mcd 24 mcd
Panasonic Industrial Automation Sales LNJ115W87RA1		5 mA 10 mA	527 nm 630 nm	0.65 mm	Green Red	Rectangle with Flat Top	1.25 mm	1.6 mm	Common Cathode	1.25 mm	1.1 mm	1.92 V 2.9 V	0605 (1613 Metric)	Surface Mount	24 mcd 40 mcd
Panasonic Industrial Automation Sales LNJ115W89RA	565 nm 615 nm	10 mA 10 mA		0.65 mm	Green Orange	Rectangle with Flat Top	1.25 mm	1.6 mm	Independent	1.25 mm	1.1 mm	1.95 V 2.03 V	0605 (1613 Metric)	Surface Mount		TSS-2 Type	5 mcd	21 mcd

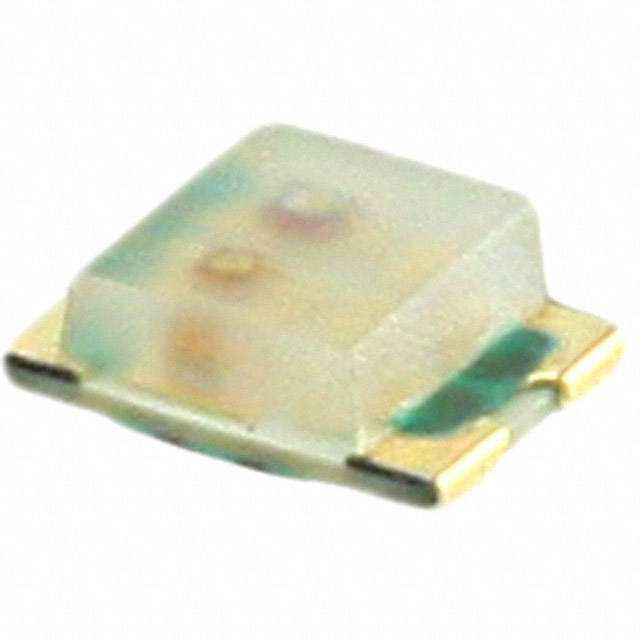

Panasonic Industrial Automation Sales LNJ115W8ARA	565 nm 630 nm	10 mA 10 mA		0.65 mm	Green Orange	Rectangle with Flat Top	1.25 mm	1.6 mm	Independent	1.25 mm	1.1 mm		0605 (1613 Metric)	Surface Mount		TSS-2 Type			2.03 V	1.93 V
Panasonic Industrial Automation Sales LNJ115W8PRA				0.65 mm	Green Red	Rectangle with Flat Top	1.25 mm	1.6 mm	Independent	1.25 mm	1.1 mm	1.72 V 2.03 V	0605 (1613 Metric)	Surface Mount	5 mcd 6.7 mcd	TSS-2 Type					565 nm 655 nm	10 mA	10 mA
Panasonic Industrial Automation Sales LNJ115W88RA	565 nm 595 nm	10 mA 10 mA		0.65 mm	Amber Green	Rectangle with Flat Top	1.25 mm	1.6 mm	Independent	1.25 mm	1.1 mm		0605 (1613 Metric)	Surface Mount		TSS-2 Type	5 mcd		2.03 V					21 mcd	2.1 V
