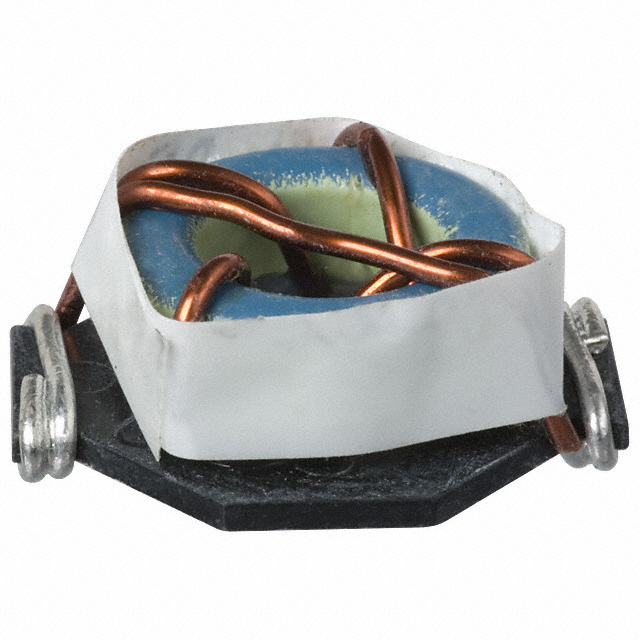

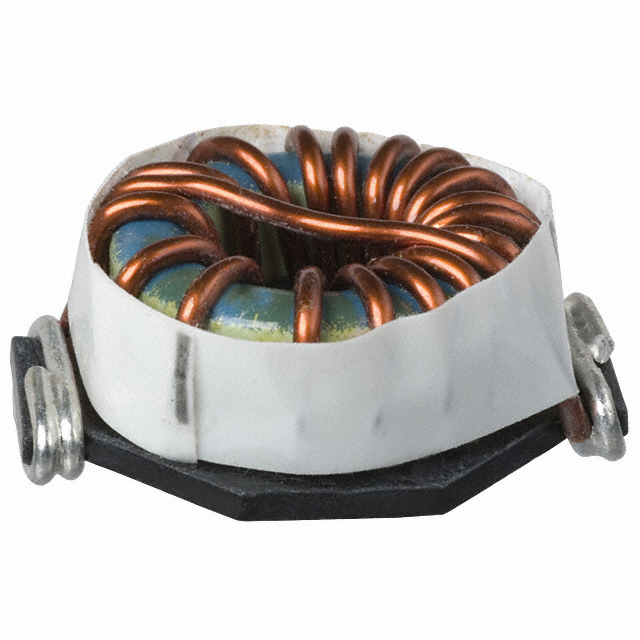

PM2110 Series

Catalog

FIXED IND 100UH 5.4A 32 MOHM SMD

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current Rating (Amps)	Mounting Type	Material - Core	Tolerance	DC Resistance (DCR)	Package / Case	Shielding	Inductance Frequency - Test	Inductance	Type	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Bourns Inc. PM2110-101K	30.5 mm	1 "	25.4 mm	1.201 in	-55 C	105 ░C	0.62 in	15.75 mm	5.4 A	Surface Mount	Iron	10 %	32 mOhm	Nonstandard	Unshielded	1 kHz	100 µH	Toroidal
Bourns Inc. PM2110-271K-RC	30.5 mm	1 "	25.4 mm	1.201 in	-55 C	105 ░C	0.6 "	15.24 mm	3.4 A	Surface Mount	Iron	10 %	82 mOhm	Nonstandard	Unshielded	1 kHz	270 µH	Toroidal
Bourns Inc. PM2110-1R0M-RC	30.5 mm	1 "	25.4 mm	1.201 in	-55 C	105 ░C	0.57 in	14.48 mm	22.7 A	Surface Mount	Iron	20 %		Nonstandard	Unshielded	1 kHz	1 µH	Toroidal	2 mOhm
Bourns Inc. PM2110-331K-RC	30.5 mm	1 "	25.4 mm	1.201 in	-55 C	105 ░C	0.6 "	15.24 mm	3.2 A	Surface Mount	Iron	10 %		Nonstandard	Unshielded	1 kHz	330 µH	Toroidal	90 mOhm
Bourns Inc. PM2110-391K-RC	30.5 mm	1 "	25.4 mm	1.201 in	-55 C	105 ░C	0.6 "	15.24 mm	3.1 A	Surface Mount	Iron	10 %		Nonstandard	Unshielded	1 kHz	390 µH	Toroidal
Bourns Inc. PM2110-6R8M-RC	30.5 mm	1 "	25.4 mm	1.201 in	-55 C	105 ░C	0.57 in	14.48 mm	13.1 A	Surface Mount	Iron	20 %		Nonstandard	Unshielded	1 kHz	6.8 µH	Toroidal	5 mOhm
Bourns Inc. PM2110-221K-RC	30.5 mm	1 "	25.4 mm	1.201 in	-55 C	105 ░C	0.6 "	15.24 mm	3.5 A	Surface Mount	Iron	10 %	74 mOhm	Nonstandard	Unshielded	1 kHz	220 µH	Toroidal
Bourns Inc. PM2110-180K-RC	30.5 mm	1 "	25.4 mm	1.201 in	-55 C	105 ░C	0.57 in	14.48 mm	10.2 A	Surface Mount	Iron	10 %		Nonstandard	Unshielded	1 kHz	18 µH	Toroidal	9 mOhm
Bourns Inc. PM2110-181K	30.5 mm	1 "	25.4 mm	1.201 in	-55 C	105 ░C	0.53 in	13.46 mm	3.7 A	Surface Mount	Iron	10 %		Nonstandard	Unshielded	1 kHz	180 µH	Toroidal	66 mOhm
Bourns Inc. PM2110-330K-RC	30.5 mm	1 "	25.4 mm	1.201 in	-55 C	105 ░C			7 A	Surface Mount	Iron	10 %	19 mOhm	Nonstandard	Unshielded	1 kHz	33 µH	Toroidal		13.21 mm	0.52 "
