ELJ-NDR Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

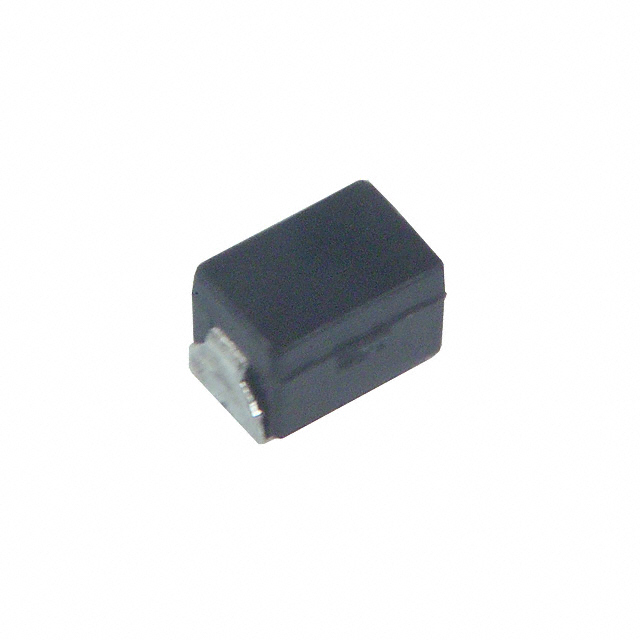

FIXED IND 820NH 125MA 3.38OHM SM

Part	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Q @ Freq	Package / Case	DC Resistance (DCR) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Frequency - Self Resonant	Material - Core	Mounting Type	Current Rating (Amps)	Inductance Frequency - Test	Inductance	Shielding	Supplier Device Package	Tolerance	DC Resistance (DCR)
Panasonic Industrial Automation Sales ELJ-NDR82JF	85 °C	-20 C	1.45 mm	0.057 in	Wirewound	10 25.2 MHz	0805	3.38 Ohm	2 mm	0.079 in	0.049 in	1.25 mm	80 MHz	Non-Magnetic	Surface Mount	125 mA	25.2 MHz	820 nH	Unshielded	0805 (2012 Metric)	5 %
Panasonic Industrial Automation Sales ELJ-NDR82KF	85 °C	-20 C	1.45 mm	0.057 in	Wirewound	10 25.2 MHz	0805	3.38 Ohm	2 mm	0.079 in	0.049 in	1.25 mm	80 MHz	Non-Magnetic	Surface Mount	125 mA	25.2 MHz	820 nH	Unshielded	0805 (2012 Metric)	10 %
Panasonic Industrial Automation Sales ELJ-NDR12KF	85 °C	-20 C	1.45 mm	0.057 in	Wirewound	8 25.2 MHz	0805		2 mm	0.079 in	0.049 in	1.25 mm	600 MHz	Non-Magnetic	Surface Mount	275 mA	25.2 MHz	120 nH	Unshielded	0805 (2012 Metric)	10 %	990 mOhm
Panasonic Industrial Automation Sales ELJ-NDR68JF	85 °C	-20 C	1.45 mm	0.057 in	Wirewound	10 25.2 MHz	0805	3.02 Ohm	2 mm	0.079 in	0.049 in	1.25 mm	100 MHz	Non-Magnetic	Surface Mount	130 mA	25.2 MHz	0.68 µH	Unshielded	0805 (2012 Metric)	5 %
Panasonic Industrial Automation Sales ELJ-NDR33JF	85 °C	-20 C	1.45 mm	0.057 in	Wirewound	10 25.2 MHz	0805		2 mm	0.079 in	0.049 in	1.25 mm	200 MHz	Non-Magnetic	Surface Mount	160 mA	25.2 MHz	330 nH	Unshielded	0805 (2012 Metric)	5 %
Panasonic Industrial Automation Sales ELJ-NDR15JF	85 °C	-20 C	1.45 mm	0.057 in	Wirewound	10 25.2 MHz	0805	1.47 Ohm	2 mm	0.079 in	0.049 in	1.25 mm	600 MHz	Non-Magnetic	Surface Mount	0.23 A	25.2 MHz	150 nH	Unshielded	0805 (2012 Metric)	5 %
Panasonic Industrial Automation Sales ELJ-NDR39KF	85 °C	-20 C	1.45 mm	0.057 in	Wirewound	10 25.2 MHz	0805	2.37 Ohm	2 mm	0.079 in	0.049 in	1.25 mm	150 MHz	Non-Magnetic	Surface Mount	150 mA	25.2 MHz	390 nH	Unshielded	0805 (2012 Metric)	10 %
Panasonic Industrial Automation Sales ELJ-NDR68KF	85 °C	-20 C	1.45 mm	0.057 in	Wirewound	10 25.2 MHz	0805	3.02 Ohm	2 mm	0.079 in	0.049 in	1.25 mm	100 MHz	Non-Magnetic	Surface Mount	130 mA	25.2 MHz	0.68 µH	Unshielded	0805 (2012 Metric)	10 %
Panasonic Industrial Automation Sales ELJ-NDR47KF	85 °C	-20 C	1.45 mm	0.057 in	Wirewound	10 25.2 MHz	0805		2 mm	0.079 in	0.049 in	1.25 mm	150 MHz	Non-Magnetic	Surface Mount	0.145 A	25.2 MHz	470 nH	Unshielded	0805 (2012 Metric)	10 %	2.56 Ohm
