PX0746 Series
Manufacturer: BULGIN LIMITED
Beta
⌘K

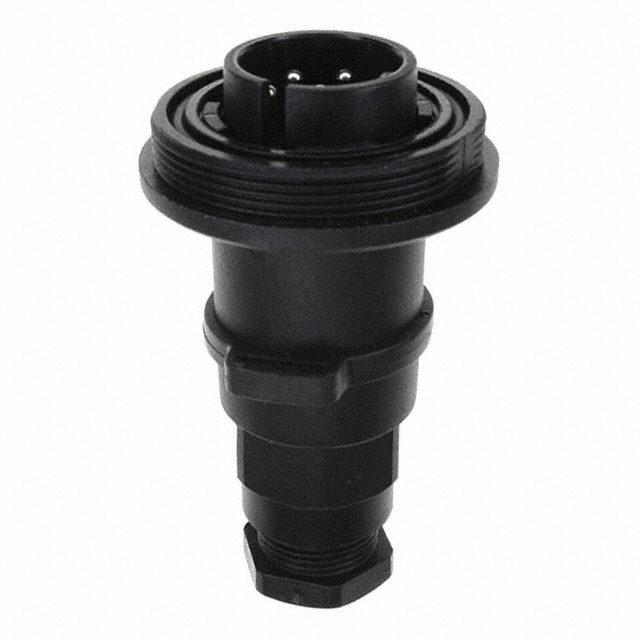

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, PLUG, 7, PIN, SCREW, CABLE MOUNT ROHS COMPLIANT: YES
| Part | Shell Material | Termination | Contact Finish - Mating | Material Flammability Rating | Voltage Rating | Primary Material | Features | Fastening Type | Shielding | Connector Type | Backshell Material, Plating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Ingress Protection | Orientation | Color | Mounting Type | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Current Rating (Amps) | Insert Material [custom] | Insert Material [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | Glass Filled Nylon Polyamide (PA) | Screw | Nickel | UL94 HB | 277 VAC | Plastic | Backshell | Threaded | Unshielded | Receptacle Male Pins | Glass Filled Nylon Polyamide (PA) | -20 ░C | 70 °C | Brass | IP68 IP69K | Keyed | Black | Free Hanging (In-Line) | 0.315 in | 0.236 in | 8 mm | 6 mm | 3 A | Nylon | Polyamide (PA) |
