KO128 Series
Manufacturer: E-Switch
Beta
⌘K

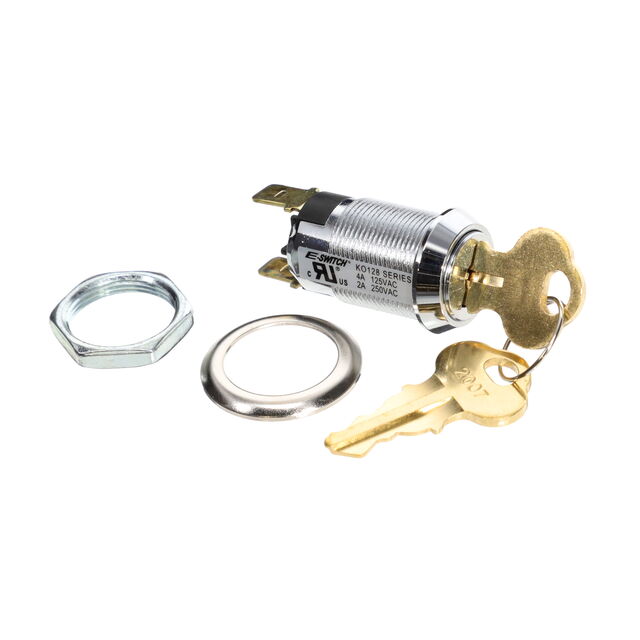

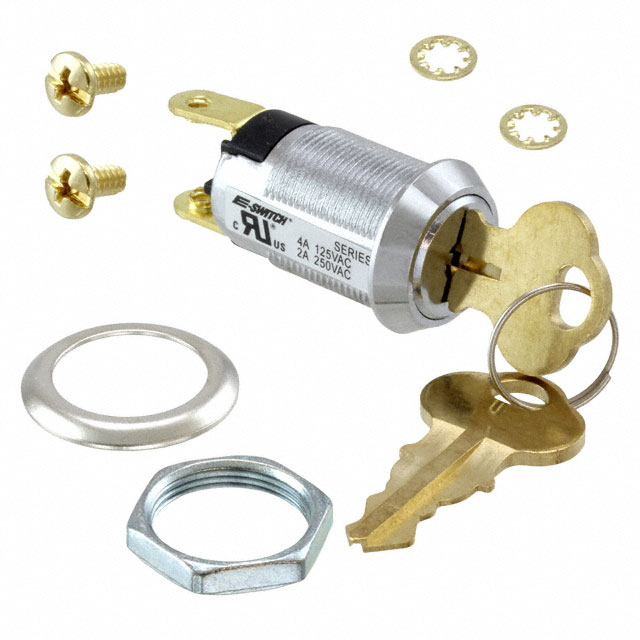

SWITCH KEYLOCK 2POS SPST 4A 125V
| Part | Depth Behind Flange | Actuator Type | Number of Positions | Termination Style | Panel Cutout Dimensions [diameter] | Contact Material | Circuit | Mounting Type | Current Rating (Amps) | Contact Timing | Key Removable Positions | Contact Finish | Angle of Throw | Switch Function | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 39.5 mm | Flat Key | 2 | Screw Terminal | 19 mm | Copper Alloy | SPST | Panel Mount | 4 A | Not Specified | All | Silver | 90 ° | Off-On | 125 V |
 E-Switch | 38 mm | Flat Key | 2 | Quick Connect - 0.250" (6.3mm) | 19 mm | Copper Alloy | SPST | Panel Mount | 4 A | Not Specified | All | Silver | 90 ° | Off-On | 125 V |
