50D60 Series
Manufacturer: Grayhill Inc.
Beta
⌘K

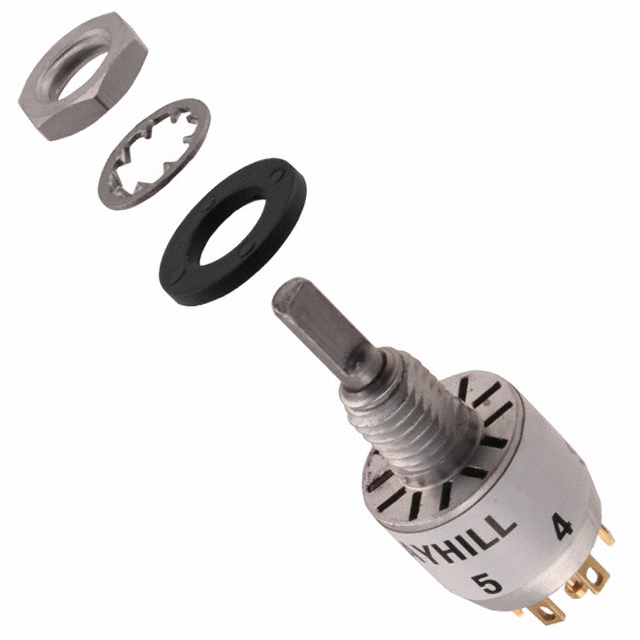

ROTARY SW, 1P, 6 POS, 0.15A/115V, 2A/28V ROHS COMPLIANT: YES
| Part | Panel Cutout Dimensions [diameter] | Actuator Length [x] | Actuator Type | Termination Style | Circuit per Deck | Contact Timing | Number of Poles per Deck | Contact Finish | Number of Positions [Min] | Number of Positions [Max] | Mounting Type | Depth Behind Panel [custom] | Voltage Rating - DC | Voltage Rating - AC | Index Stops | Number of Decks [custom] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 6.45 mm | 9.53 mm | Flatted (3.17mm Dia) | Solder Lug | SP6T | Non-Shorting (BBM) | 1 | Gold | 2 | 6 | Panel Mount | 18.77 mm | 28 V | 115 V | Adjustable | 1 | 150 mA 200 mA |
