EASV1003 Series

Catalog

LED UNI-COLOR BLUE 468NM 2-PIN SMD-B T/R

Part	Color	Lens Size [y]	Lens Size [x]	Wavelength - Dominant	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Millicandela Rating	Supplier Device Package	Package / Case	Wavelength - Peak	Mounting Type	Height (Max) [z]	Lens Color	Lens Transparency	Lens Style	Voltage - Forward (Vf) (Typ)	Viewing Angle	Configuration

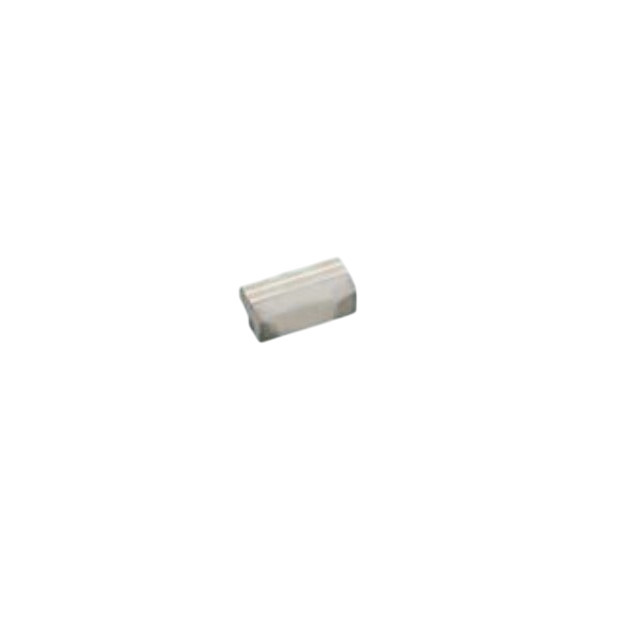

Everlight Electronics Co Ltd EASV1003BA0	Blue	0.3 mm	1 mm	470 nm	1 mm	0.5 mm	20 mA	126 mcd	2-SMD	0402 (1005 Metric)	468 nm	Right Angle Surface Mount	0.35 mm	Colorless	Clear	Rectangle with Flat Top	3.2 V	125 °

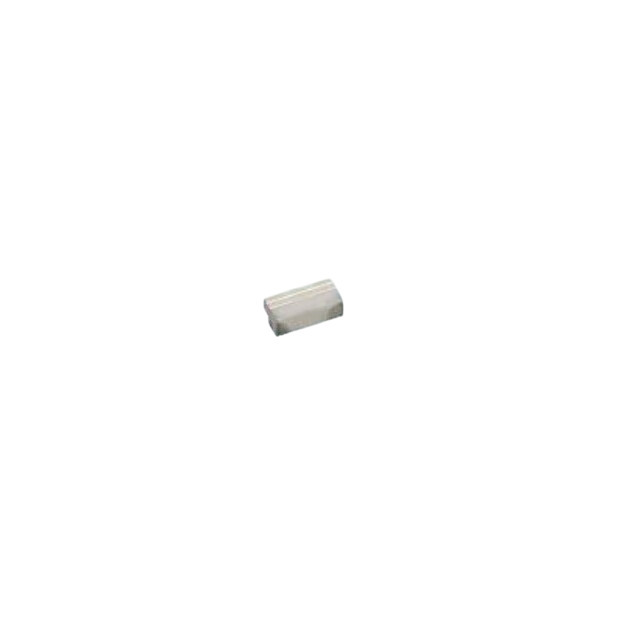

Everlight Electronics Co Ltd EASV1003Y0	Yellow	0.3 mm	1 mm	590 nm	1 mm	0.5 mm	20 mA	126 mcd	2-SMD	2-SMD No Lead	591 nm	Right Angle Surface Mount	0.35 mm	Colorless	Clear	Rectangle with Flat Top	2.05 V	125 °	Standard
Everlight Electronics Co Ltd EASV1003GA1	Green	0.3 mm	1 mm	523 nm	1 mm	0.5 mm	20 mA	395 mcd	2-SMD	0402 (1005 Metric)	518 nm	Right Angle Surface Mount	0.35 mm	Colorless	Clear	Rectangle with Flat Top	3.2 V	125 °
Everlight Electronics Co Ltd EASV1003RA0	Red	0.3 mm	1 mm	626 nm	1 mm	0.5 mm	5 mA	20 mcd	2-SMD	0402 (1005 Metric)	632 nm	Right Angle Surface Mount	0.35 mm	Colorless	Clear	Rectangle with Flat Top	1.95 V	125 °

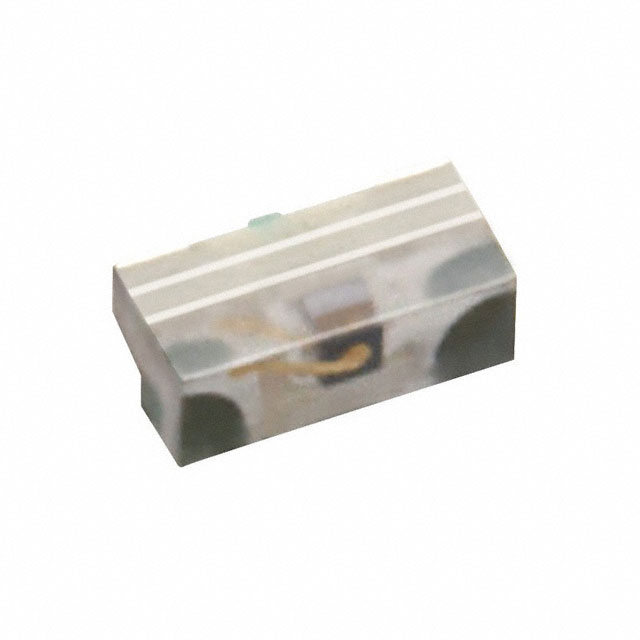

Everlight Electronics Co Ltd EASV1003W0	White	0.3 mm	1 mm		1 mm	0.5 mm	5 mA	79 mcd	2-SMD	2-SMD No Lead		Right Angle Surface Mount	0.35 mm	Yellow	Diffused	Rectangle with Flat Top	3 V	130 °	Standard
