HE4WPR Series

Catalog

EUROSTRIP 7P10MM FLAT BASE 30A 3

Part	Material - Insulation	Terminal Screw Finish	Mounting Type	Terminal Screw Material	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Pitch	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Number of Rows	Barrier Type	Terminal Block Type	Bottom Termination	Color	Number of Wire Entries	Current Rating	Number of Circuits	Voltage Rating	Top Termination
Altech Corporation HE4WPR/07

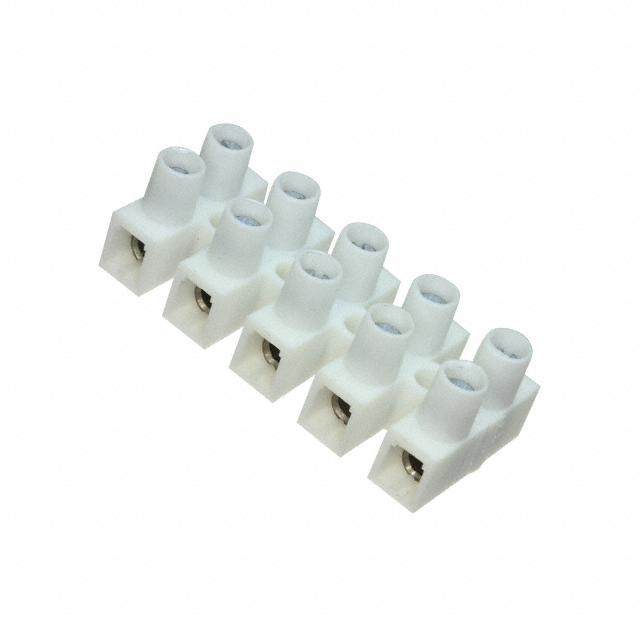

Altech Corporation HE4WPR/05	Nylon 6/6 PA66 Polyamide	Blue Chromate	Chassis Panel	Steel	-30 °C	125 °C	UL94 V-0	0.394 in	24 AWG	10 AWG	2	Enclosed	Eurostyle Terminal Strip	Closed	White	10	30 A	5	300 VAC/DC	Screws
Altech Corporation HE4WPR/03	Nylon 6/6 PA66 Polyamide	Blue Chromate	Chassis Panel	Steel	-30 °C	125 °C	UL94 V-0	0.394 in	24 AWG	10 AWG	2	Enclosed	Eurostyle Terminal Strip	Closed	White	6	30 A	3	300 VAC/DC	Screws
Altech Corporation HE4WPR/02	Nylon 6/6 PA66 Polyamide	Blue Chromate	Chassis Panel	Steel	-30 °C	125 °C	UL94 V-0	0.394 in	24 AWG	10 AWG	2	Enclosed	Eurostyle Terminal Strip	Closed	White	4	30 A	2	300 VAC/DC	Screws
Altech Corporation HE4WPR/06	Nylon 6/6 PA66 Polyamide	Blue Chromate	Chassis Panel	Steel	-30 °C	125 °C	UL94 V-0	0.394 in	24 AWG	10 AWG	2	Enclosed	Eurostyle Terminal Strip	Closed	White	12	30 A	6	300 VAC/DC	Screws

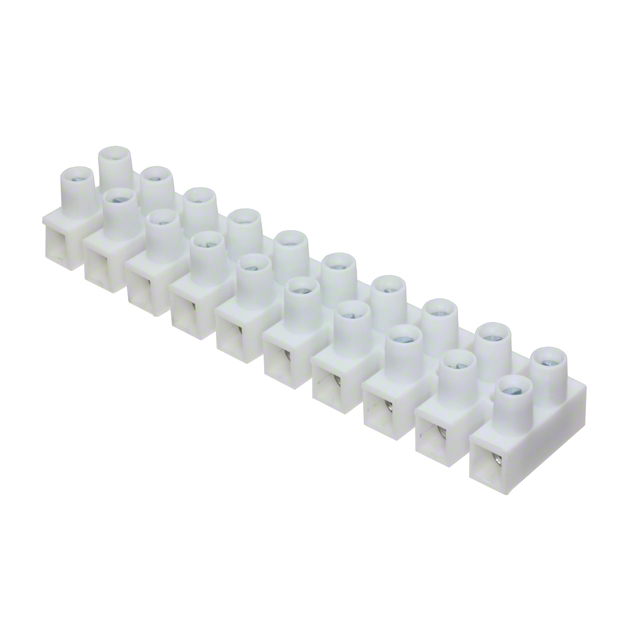

Altech Corporation HE4WPR/10	Nylon 6/6 PA66 Polyamide	Blue Chromate	Chassis Panel	Steel	-30 °C	125 °C	UL94 V-0	0.394 in	24 AWG	10 AWG	2	Enclosed	Eurostyle Terminal Strip	Closed	White	20	30 A	10	300 VAC/DC	Screws

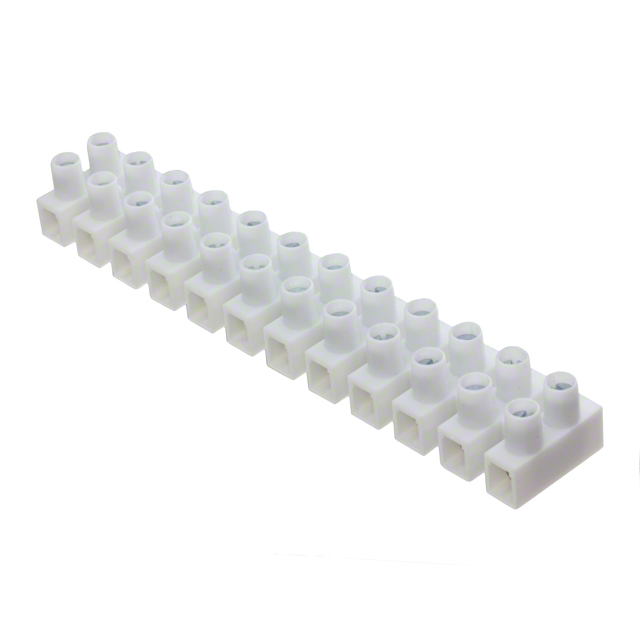

Altech Corporation HE4WPR/12	Nylon 6/6 PA66 Polyamide	Blue Chromate	Chassis Panel	Steel	-30 °C	125 °C	UL94 V-0	0.394 in	24 AWG	10 AWG	2	Enclosed	Eurostyle Terminal Strip	Closed	White	24	30 A	12	300 VAC/DC	Screws
Altech Corporation HE4WPR/08
Altech Corporation HE4WPR/11
