PZC31 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 31POS 2.54MM

Part	Material Flammability Rating	Number of Rows	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Number of Positions Loaded	Shrouding	Contact Finish - Mating	Fastening Type	Insulation Height	Insulation Height	Contact Type	Termination	Insulation Color	Pitch - Mating	Pitch - Mating	Style	Contact Length - Post	Contact Length - Post	Contact Shape	Number of Positions [custom]	Connector Type	Contact Material	Insulation Material	Overall Contact Length	Contact Length - Post [custom]	Contact Length - Post [custom]	Overall Contact Length [x]	Overall Contact Length [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Number of Positions	Insulation Height [z]	Insulation Height [z]

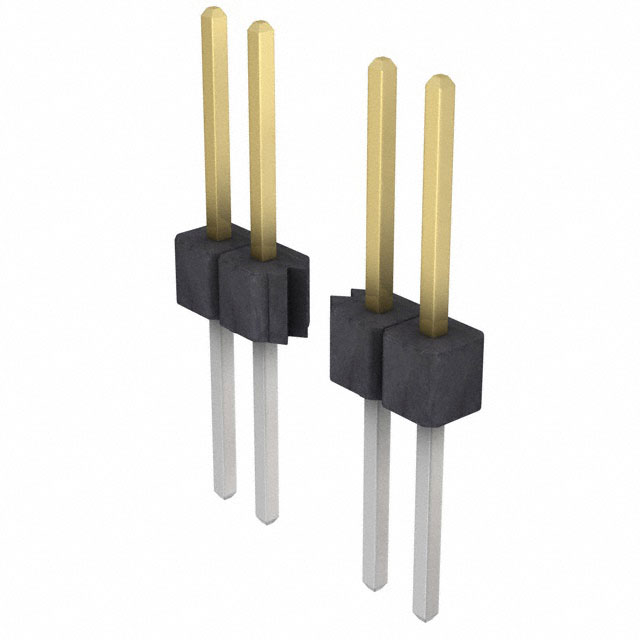

Sullins Connector Solutions PZC31SFCN	UL94 V-0	1	3 A	8.08 mm	0.318 in	18.75 mm	0.738 in	Through Hole	0.25 µm	10 µin	2.54 µm	100 µin	Tin	All	Unshrouded	Gold	Push-Pull	0.1 in	2.54 mm	Male Pin	Solder	Black	0.1 "	2.54 mm	Board to Board Cable	8.13 mm	0.32 in	Square	31	Header	Copper Alloy	Polyester Thermoplastic
Sullins Connector Solutions PZC31SFDN	UL94 V-0	1	3 A	8.08 mm	0.318 in	21.29 mm		Through Hole	0.25 µm	10 µin	2.54 µm	100 µin	Tin	All	Unshrouded	Gold	Push-Pull	0.1 in	2.54 mm	Male Pin	Solder	Black	0.1 "	2.54 mm	Board to Board Cable	10.67 mm	0.42 in	Square	31	Header	Copper Alloy	Polyester Thermoplastic	0.838 in

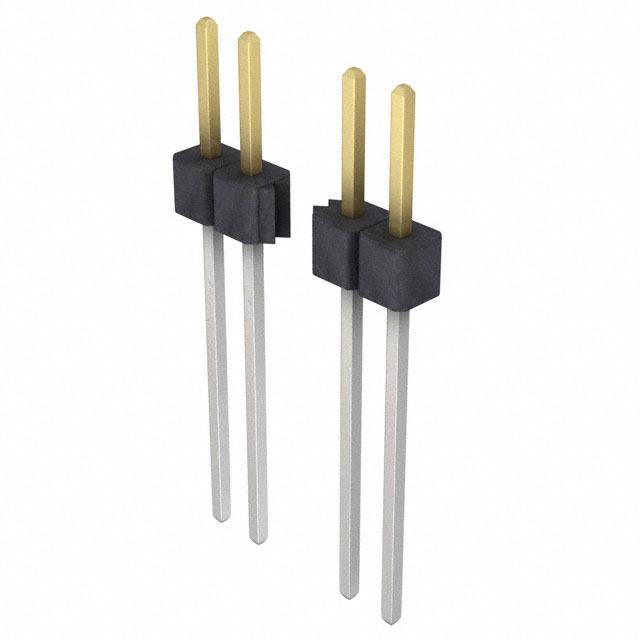

Sullins Connector Solutions PZC31SAFN	UL94 V-0	1	3 A	5.84 mm	0.23 in	24.13 mm		Through Hole	0.25 µm	10 µin	2.54 µm	100 µin	Tin	All	Unshrouded	Gold	Push-Pull	0.1 in	2.54 mm	Male Pin	Solder	Black	0.1 "	2.54 mm	Board to Board Cable			Square	31	Header	Copper Alloy	Polyester Thermoplastic	0.95 in	15.75 mm	0.62 "
Sullins Connector Solutions PZC31SFAN	UL94 V-0	1	3 A	8.08 mm	0.318 in			Through Hole	0.25 µm	10 µin	2.54 µm	100 µin	Tin	All	Unshrouded	Gold	Push-Pull	0.1 in	2.54 mm	Male Pin	Solder	Black	0.1 "	2.54 mm	Board to Board Cable	3.05 mm	0.12 in	Square	31	Header	Copper Alloy	Polyester Thermoplastic				13.67 mm	0.538 in

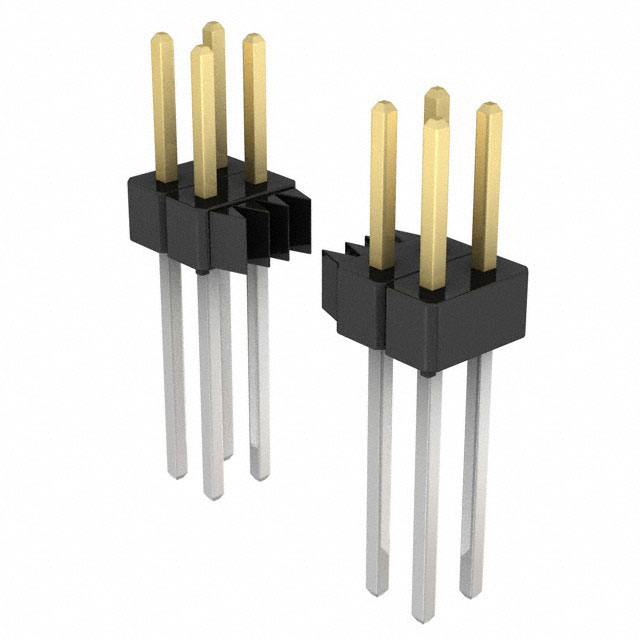

Sullins Connector Solutions PZC31DADN	UL94 V-0		3 A	5.84 mm	0.23 in			Through Hole	0.25 µm	10 µin	2.54 µm	100 µin	Tin	All	Unshrouded	Gold	Push-Pull	0.1 in	2.54 mm	Male Pin	Solder	Black	0.1 "	2.54 mm	Board to Board Cable	10.67 mm	0.42 in	Square		Header	Copper Alloy	Polyester Thermoplastic				19.05 mm	0.75 in	0.1 in	2.54 mm	2	62
Sullins Connector Solutions PZC31SGAN	UL94 V-0	1	3 A	8.08 mm	0.318 in			Right Angle Through Hole	0.25 µm	10 µin	2.54 µm	100 µin	Tin	All	Unshrouded	Gold	Push-Pull	0.14 in	3.56 mm	Male Pin	Solder	Black	0.1 "	2.54 mm	Board to Board Cable	3.05 mm	0.12 in	Square	31	Header	Copper Alloy	Polyester Thermoplastic

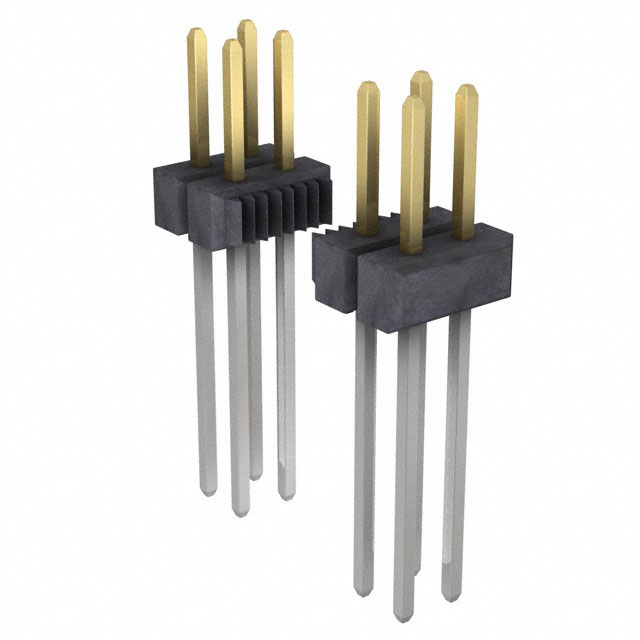

Sullins Connector Solutions PZC31DAEN	UL94 V-0		3 A	5.84 mm	0.23 in	21.59 mm		Through Hole	0.25 µm	10 µin	2.54 µm	100 µin	Tin	All	Unshrouded	Gold	Push-Pull	0.1 in	2.54 mm	Male Pin	Solder	Black	0.1 "	2.54 mm	Board to Board Cable	13.21 mm	0.52 in	Square		Header	Copper Alloy	Polyester Thermoplastic	0.85 in					0.1 in	2.54 mm	2	62

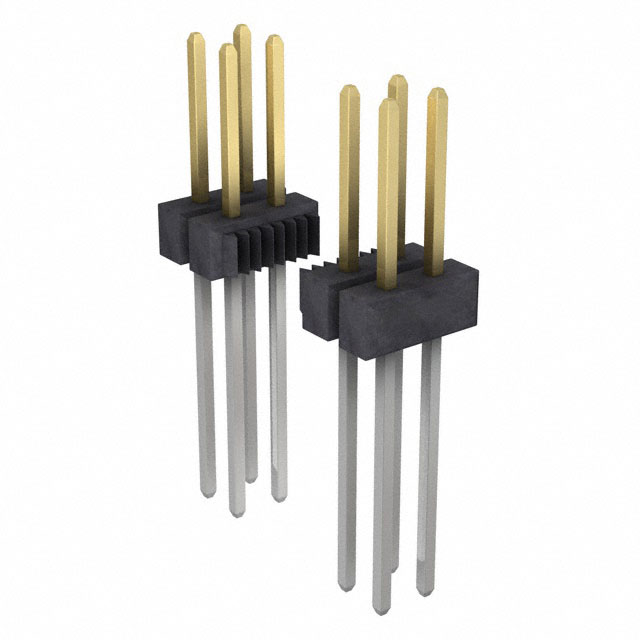

Sullins Connector Solutions PZC31DFEN	UL94 V-0		3 A	8.08 mm	0.318 in	23.83 mm		Through Hole	0.25 µm	10 µin	2.54 µm	100 µin	Tin	All	Unshrouded	Gold	Push-Pull	0.1 in	2.54 mm	Male Pin	Solder	Black	0.1 "	2.54 mm	Board to Board Cable	13.21 mm	0.52 in	Square		Header	Copper Alloy	Polyester Thermoplastic	0.938 in					0.1 in	2.54 mm	2	62
Sullins Connector Solutions PZC31SAEN	UL94 V-0	1	3 A	5.84 mm	0.23 in	21.59 mm		Through Hole	0.25 µm	10 µin	2.54 µm	100 µin	Tin	All	Unshrouded	Gold	Push-Pull	0.1 in	2.54 mm	Male Pin	Solder	Black	0.1 "	2.54 mm	Board to Board Cable	13.21 mm	0.52 in	Square	31	Header	Copper Alloy	Polyester Thermoplastic	0.85 in
Sullins Connector Solutions PZC31DBDN	UL94 V-0		3 A	5.84 mm	0.23 in			Right Angle Through Hole	0.25 µm	10 µin	2.54 µm	100 µin	Tin	All	Unshrouded	Gold	Push-Pull			Male Pin	Solder	Black	0.1 "	2.54 mm	Board to Board Cable	10.67 mm	0.42 in	Square		Header	Copper Alloy	Polyester Thermoplastic						0.1 in	2.54 mm	2	62	6.1 mm	0.24 in
