GLAB20 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION DPDT 6A 120V
| Part | Mounting Type | Overtravel | Overtravel | Circuit | Voltage Rating - AC | Actuator Type | Current Rating (Amps) | Operating Force | Mechanical Life | Pretravel | Pretravel | Termination Style | Ingress Protection | Voltage Rating - DC | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Operating Position [custom] | Operating Position [custom] | Differential Travel | Operating Position | Features | Operating Position | Differential Travel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

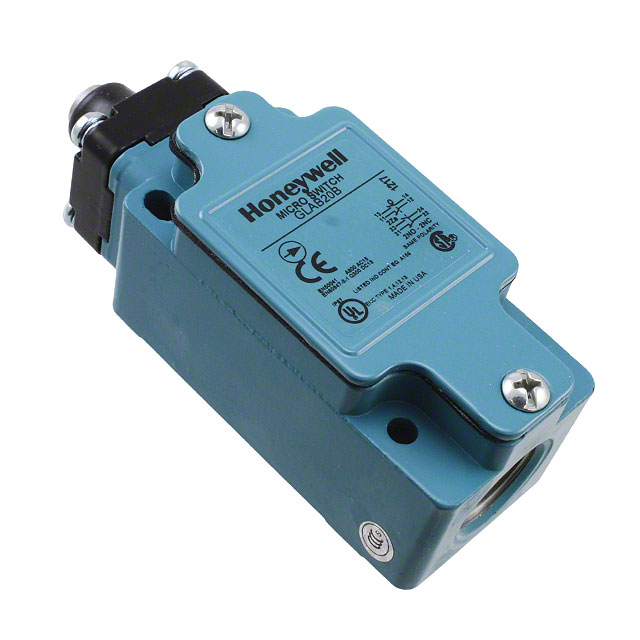

 Honeywell Sensing and Productivity Solutions | Chassis Mount | 0.18 in | 4.6 mm | DPDT | 120 V | Round (Pin Plunger) | 6 A 550 mA | 1632 gf | 15000000 Cycles | 0.1 in | 2.5 mm | Screw Terminal | IP67 - Dust Tight Waterproof | 125 VDC | -25 °C | 85 °C | On-Mom | 35 mm | 1.38 in | |||||

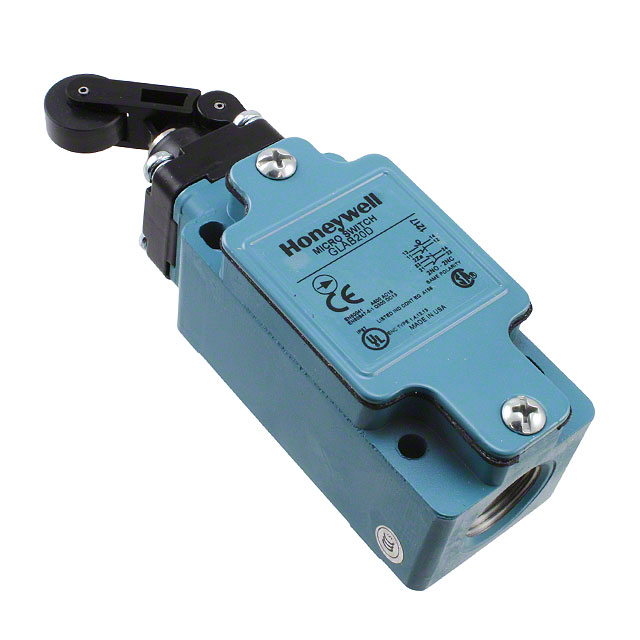

Honeywell Sensing and Productivity Solutions | Chassis Mount | 59 ° | DPDT | 120 V | Roller Side Rotary | 6 A 550 mA | 33 gfm | 15000000 Cycles | 26 ° | Screw Terminal | IP67 - Dust Tight Waterproof | 125 VDC | -25 °C | 85 °C | On-Mom | 12 ° | 26 ° | Nylon Roller | ||||||

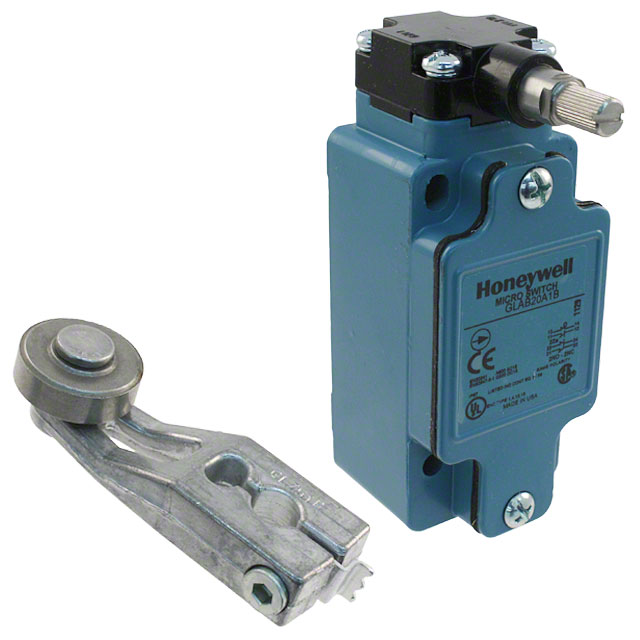

 Honeywell Sensing and Productivity Solutions | Chassis Mount | 0.35 " | 9 mm | DPDT | 120 V | Lever Roller | 6 A 550 mA | 15000000 Cycles | 0.165 in | 4.2 mm | Screw Terminal | IP67 - Dust Tight Waterproof | 125 VDC | -25 °C | 85 °C | On-Mom | 0.065 in | 2.4 in | 61 mm | 1.7 mm | ||||
 Honeywell Sensing and Productivity Solutions | Chassis Mount | 59 ° | DPDT | 120 V | Roller Side Rotary | 6 A 550 mA | 33 gfm | 15000000 Cycles | 26 ° | Screw Terminal | IP67 - Dust Tight Waterproof | 125 VDC | -25 °C | 85 °C | On-Mom | 12 ° | 26 ° | Steel Roller |
