284094 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

(284094-9) TERMI-BLOK PCB MOUNT 90, 5,08M

Part	Mating Orientation	Features	Pitch [x]	Pitch [x]	Color	Voltage	Screw Material - Plating	Clamp Material - Plating	Number of Levels	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Wire Termination	Screw Thread	Contact Material - Plating [custom]	Torque - Screw	Torque - Screw	Positions Per Level	Current

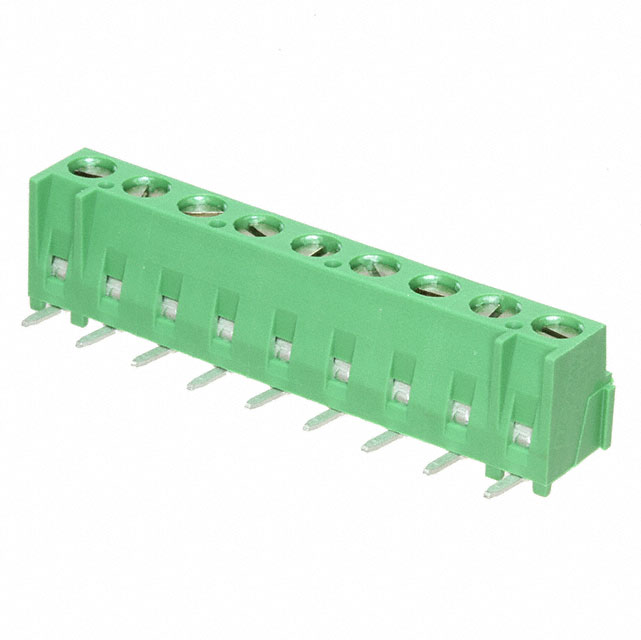

TE Connectivity Raychem Cable Protection 284094-9	Vertical with Board	Interlocking (Side)	0.2 in	5.08 mm	Green	300 V	Brass - Nickel Plated	Brass - Nickel Plated	1	Through Hole	30 AWG	16 AWG	Screw - Rising Cage Clamp	M3	Brass - Tin Plated	6 Lb-In	0.68 Nm	9	13.5 A

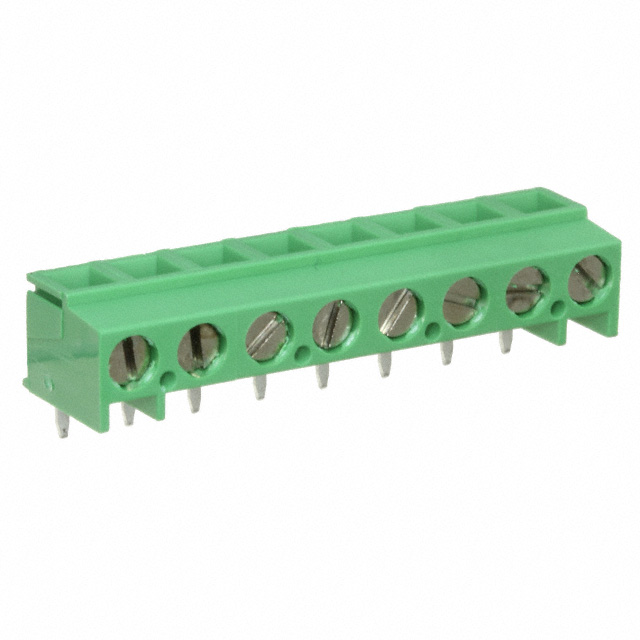

TE Connectivity Raychem Cable Protection 284094-8	Vertical with Board	Interlocking (Side)	0.2 in	5.08 mm	Green	300 V	Brass - Nickel Plated	Brass - Nickel Plated	1	Through Hole	30 AWG	16 AWG	Screw - Rising Cage Clamp	M3	Brass - Tin Plated	6 Lb-In	0.68 Nm	8	13.5 A
TE Connectivity Raychem Cable Protection 1-284094-6	Vertical with Board	Interlocking (Side)	0.2 in	5.08 mm	Green	300 V	Brass - Nickel Plated	Brass - Nickel Plated	1	Through Hole	30 AWG	16 AWG	Screw - Rising Cage Clamp	M3	Brass - Tin Plated	6 Lb-In	0.68 Nm	16	13.5 A

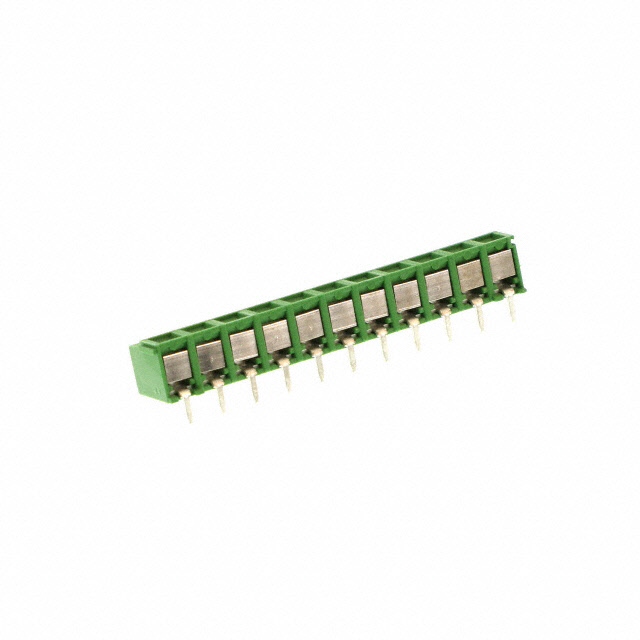

TE Connectivity Raychem Cable Protection 1-284094-1	Vertical with Board	Interlocking (Side)	0.2 in	5.08 mm	Green	300 V	Brass - Nickel Plated	Brass - Nickel Plated	1	Through Hole	30 AWG	16 AWG	Screw - Rising Cage Clamp	M3	Brass - Tin Plated	6 Lb-In	0.68 Nm	11	13.5 A

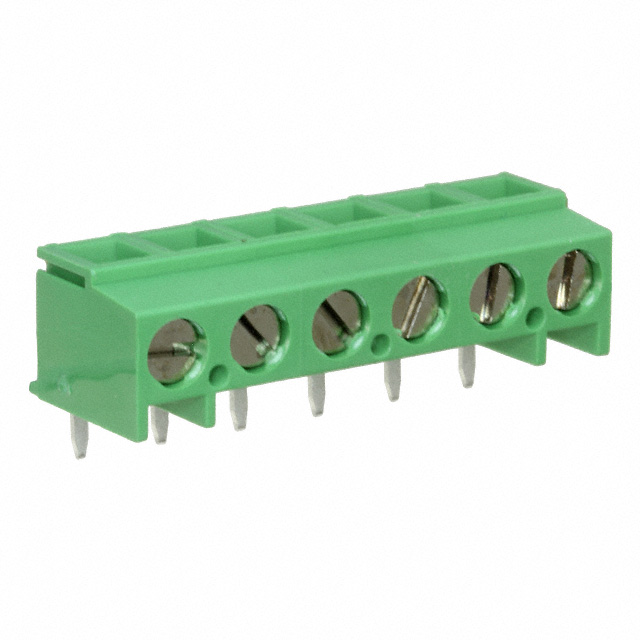

TE Connectivity Raychem Cable Protection 284094-6	Vertical with Board	Interlocking (Side)	0.2 in	5.08 mm	Green	300 V	Brass - Nickel Plated	Brass - Nickel Plated	1	Through Hole	30 AWG	16 AWG	Screw - Rising Cage Clamp	M3	Brass - Tin Plated	6 Lb-In	0.68 Nm	6	13.5 A

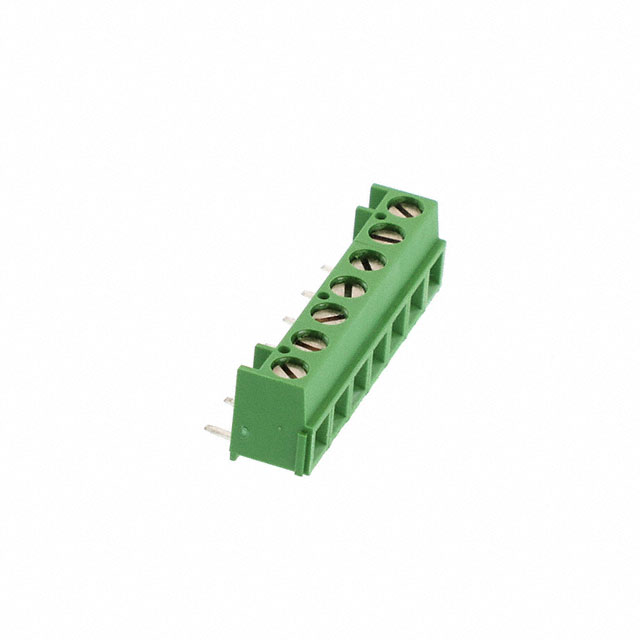

TE Connectivity Raychem Cable Protection 284094-7	Vertical with Board	Interlocking (Side)	0.2 in	5.08 mm	Green	300 V	Brass - Nickel Plated	Brass - Nickel Plated	1	Through Hole	30 AWG	16 AWG	Screw - Rising Cage Clamp	M3	Brass - Tin Plated	6 Lb-In	0.68 Nm	7	13.5 A
