83319E Series
Manufacturer: Belden Inc.
Beta
⌘K

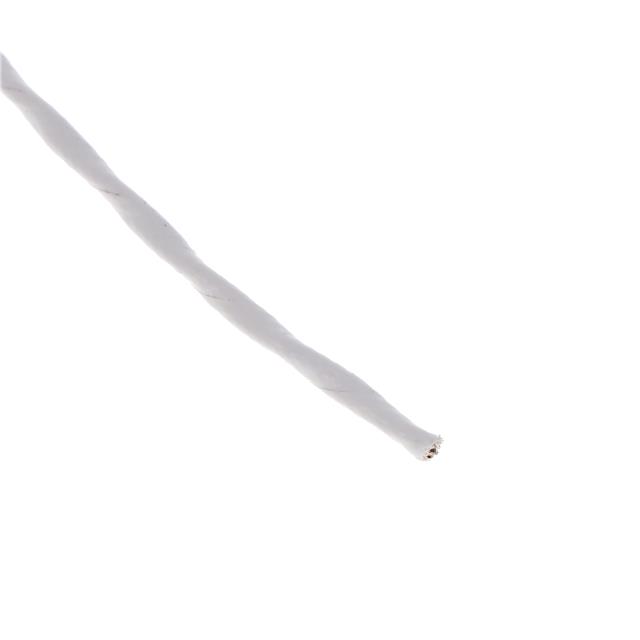

CABLE 2CON 22AWG WHT SHLD 500'
| Part | Shield Coverage | Shield Material | Wire Gauge | Conductor Material | Conductor Insulation | Jacket Color | Shield Type | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Operating Temperature [Min] | Operating Temperature [Max] | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % | Copper Silver Coated | 22 AWG | Copper Silver Coated | Tetrafluoroethylene (TFE) | White | Braid | Multi-Conductor | 0.279 mm | 0.011 " | 152.4 m | 500 ft | -65 ░C | 200 °C | 2 | 3.63 mm | 0.143 " | Tetrafluoroethylene (TFE) | 34 AWG | 19 | ||
 Belden Inc. | 85 % | Copper Silver Coated | 22 AWG | Copper Silver Coated | Tetrafluoroethylene (TFE) | White | Braid | Multi-Conductor | 0.279 mm | 0.011 " | 304.8 m | 1000 ft | -65 ░C | 200 °C | 2 | 3.63 mm | 0.143 " | Tetrafluoroethylene (TFE) | 34 AWG | 19 | ||
 Belden Inc. | 85 % | Copper Silver Coated | 22 AWG | Copper Silver Coated | Fluorinated Ethylene-Propylene (FEP) | White | Braid | Multi-Conductor | 0.279 mm | 0.011 " | -65 ░C | 200 °C | 2 | 3.63 mm | 0.143 " | Tetrafluoroethylene (TFE) | 34 AWG | 19 | 100 ft | 30.5 m |
