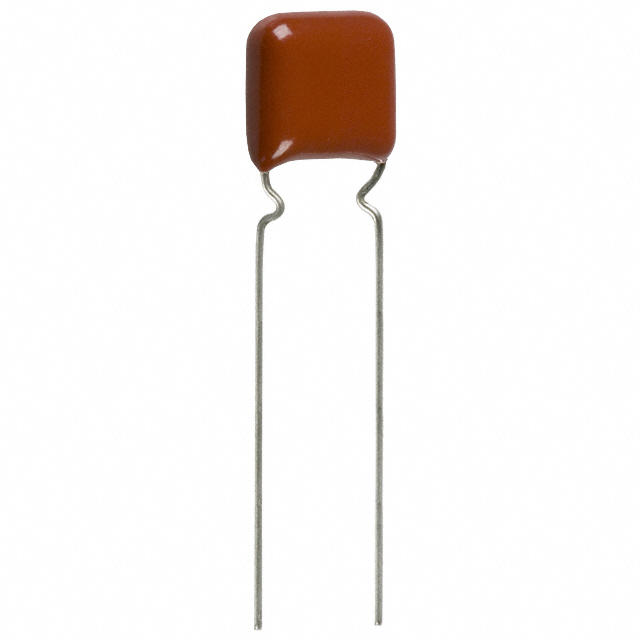

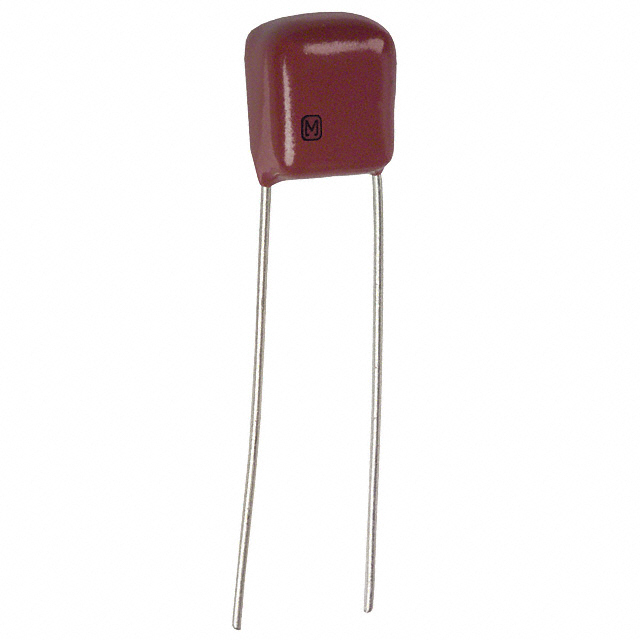

ECQ-V1 Series

Manufacturer: Panasonic Electronic Components

Catalog

Catalog

CAP FILM 0.068UF 5% 63VDC RADIAL

...

Part	Capacitance	Voltage Rating - DC	Termination	Dielectric Material	Lead Spacing	Lead Spacing	Applications	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Tolerance	Mounting Type	Height - Seated (Max)	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Electronic Components ECQ-V1J683JM5	0.068 µF	63 VDC	PC Pins	Polyester Metallized - Stacked	0.197 "	5 mm	General Purpose	Radial	0.295 "	7.5 mm	3.2 mm	0.126 in	5 %	Through Hole	7.8 mm	0.307 in	-40 C	105 ░C
Panasonic Electronic Components ECQ-V1H224JL3	0.22 µF	50 VDC	PC Pins	Polyester Metallized - Stacked	0.197 "	5 mm	General Purpose	Radial	0.287 "	7.3 mm	4.8 mm	0.189 in	5 %	Through Hole			-40 C	105 ░C	6.5 mm	0.256 in
Panasonic Electronic Components ECQ-V1J223JM3	0.022 µF	63 VDC	PC Pins	Polyester Metallized - Stacked	0.197 "	5 mm	General Purpose	Radial	0.295 "	7.5 mm	3.2 mm	0.126 in	5 %	Through Hole			-40 C	105 ░C
Panasonic Electronic Components ECQ-V1H155JL	1500 nF	50 VDC	PC Pins	Polyester Metallized - Stacked	0.295 in	7.5 mm	General Purpose	Radial	0.402 in	10.2 mm	7.2 mm	0.283 in	5 %	Through Hole			-40 C	105 ░C
Panasonic Electronic Components ECQ-V1J274JM3	0.27 µF	63 VDC	PC Pins	Polyester Metallized - Stacked	0.197 "	5 mm	General Purpose	Radial	0.402 in	10.2 mm	3.5 mm	0.138 in	5 %	Through Hole			-40 C	105 ░C
Panasonic Electronic Components ECQ-V1J223JM9	0.022 µF	63 VDC	PC Pins	Polyester Metallized - Stacked	0.197 "	5 mm	General Purpose	Radial	0.295 "	7.5 mm	3.2 mm	0.126 in	5 %	Through Hole		0.425 in	-40 C	105 ░C		10.8 mm
Panasonic Electronic Components ECQ-V1J273JM9	0.027 µF	63 VDC	PC Pins	Polyester Metallized - Stacked	0.197 "	5 mm	General Purpose	Radial	0.295 "	7.5 mm	3.2 mm	0.126 in	5 %	Through Hole		0.425 in	-40 C	105 ░C		10.8 mm
Panasonic Electronic Components ECQ-V1J473JMW		63 VDC	PC Pins	Polyester Metallized - Stacked	0.197 "	5 mm	General Purpose	Radial	0.295 "	7.5 mm	3.2 mm	0.126 in	5 %	Through Hole		0.425 in	-40 C	105 ░C		10.8 mm
Panasonic Electronic Components ECQ-V1H155JL9	1500 nF	50 VDC	PC Pins	Polyester Metallized - Stacked	0.197 "	5 mm	General Purpose	Radial	0.402 in	10.2 mm	7.2 mm	0.283 in	5 %	Through Hole		0.551 in	-40 C	105 ░C		14 mm
Panasonic Electronic Components ECQ-V1J103JMW	10000 pF	63 VDC	PC Pins	Polyester Metallized - Stacked	0.197 "	5 mm	General Purpose	Radial	0.295 "	7.5 mm	3.2 mm	0.126 in	5 %	Through Hole		0.425 in	-40 C	105 ░C		10.8 mm
