TPS65631W Series

+4.6V / -1.4 to -4.4V Dual Output 200mA AMOLED Display Pwr Supply

Catalog

+4.6V / -1.4 to -4.4V Dual Output 200mA AMOLED Display Pwr Supply

Part	Mounting Type	Voltage - Output [Min]	Voltage - Output [Max]	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Package / Case

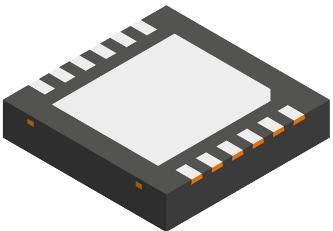

Texas Instruments TPS65631WDSKR	Surface Mount	-1.4 V	-4.4 V	4.6 V	2.9 V	4.5 V	AMOLED Display Converter	2.5	2.5	10-SON	85 °C	-40 °C	2	10-WFDFN Exposed Pad

Catalog

+4.6V / -1.4 to -4.4V Dual Output 200mA AMOLED Display Pwr Supply

Key Features

• 2.9-V to 4.5-V Input Voltage RangeFixed 4.6-V Positive Output Voltage0.5% VPOSAccuracy from 25ºC to 85ºCSeparate VPOSOutput Sense PinNegative Output Voltage Digitally Programmable from –1.4 V to –4.4 V (–4 V Default)Output Currents up to 200 mA SupportedExcellent Line Transient RegulationOutputs High Impedance During Shut DownShort-Circuit ProtectionThermal ShutdownAvailable in 2.5-mm × 2.5-mm, 10-Pin QFN Package2.9-V to 4.5-V Input Voltage RangeFixed 4.6-V Positive Output Voltage0.5% VPOSAccuracy from 25ºC to 85ºCSeparate VPOSOutput Sense PinNegative Output Voltage Digitally Programmable from –1.4 V to –4.4 V (–4 V Default)Output Currents up to 200 mA SupportedExcellent Line Transient RegulationOutputs High Impedance During Shut DownShort-Circuit ProtectionThermal ShutdownAvailable in 2.5-mm × 2.5-mm, 10-Pin QFN Package

Description

The TPS65631W is designed to drive AMOLED (Active Matrix Organic Light Emitting Diode) displays requiring positive and negative supply rails. The device integrates a boost converter for VPOSand an inverting buck boost converter for VNEGand is suitable for battery-operated products. The digital control pin (CTRL) allows programming the negative output voltage in digital steps. The TPS65631W uses a novel technology enabling excellent line transient performance. The TPS65631W is designed to drive AMOLED (Active Matrix Organic Light Emitting Diode) displays requiring positive and negative supply rails. The device integrates a boost converter for VPOSand an inverting buck boost converter for VNEGand is suitable for battery-operated products. The digital control pin (CTRL) allows programming the negative output voltage in digital steps. The TPS65631W uses a novel technology enabling excellent line transient performance.
