W8282-2 Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

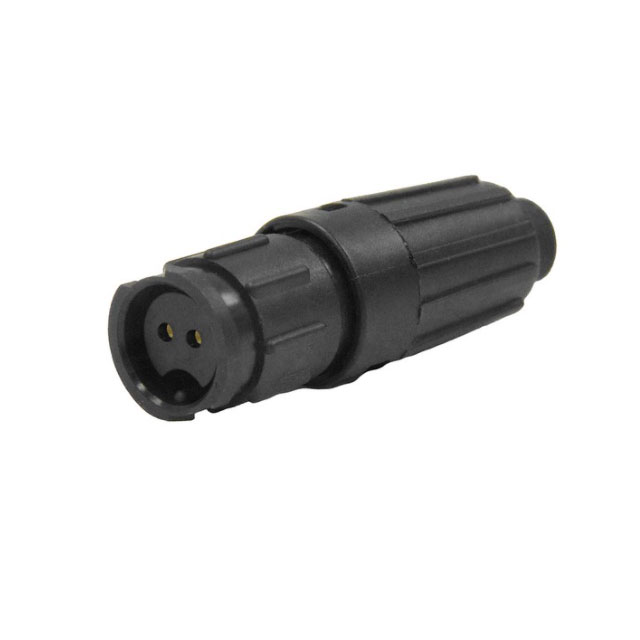

MINI-CON-X INSTA-CLICK CONNECTOR
| Part | Backshell Material, Plating | Connector Type | Ingress Protection | Contact Finish - Mating | Applications | Shielding | Contact Material | Color | Current Rating (Amps) | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Orientation | Mounting Type | Shell Material | Operating Temperature [Max] | Operating Temperature [Min] | Features | Fastening Type | Insert Material | Voltage Rating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Thermoplastic | Plug Female Sockets | IP66 IP67 IP68 | Gold | Automotive Communication Systems Instrumentation | Unshielded | Copper Alloy | Black | Varies by Wire Gauge | 0.15 in | 3.81 mm | 0.13 " | 3.3 mm | Keyed | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | 85 °C | -40 C | Backshell Coupling Nut UV Resistant | Bayonet Lock | Thermoplastic | 300 VAC | 2 |
