FD4D012 Series
Manufacturer: Belden Inc.
Beta
⌘K

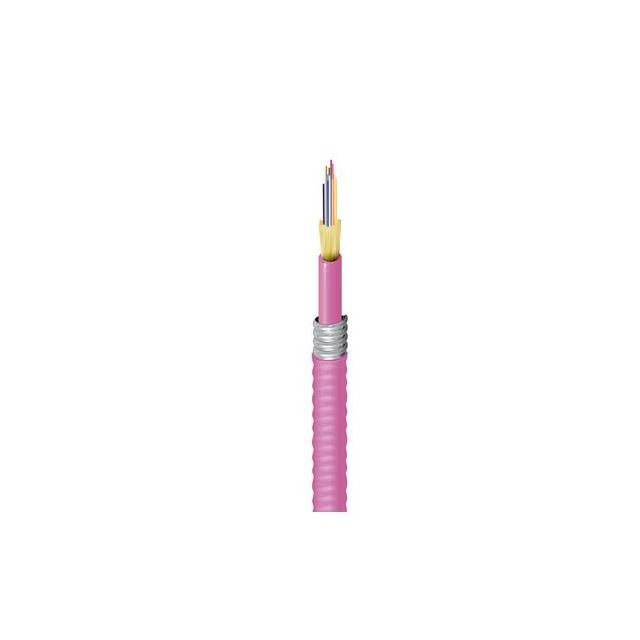

CBL FIBER OPTIC 125UM MULTIMODE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Tensile Strength | Core Diameter [diameter] | Jacket (Insulation) Material | Features | Ratings | Cladding Diameter [diameter] | Style | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 70 °C | -40 C | Multimode | 0.48 in | 12.19 mm | 20.4 kg | 50 µm | Poly-Vinyl Chloride (PVC) | 12 Fibers Armored | OFCP | 125 µm | Multiple Fibers | Black |
 Belden Inc. | 70 °C | -40 C | Multimode | 0.26 in | 6.6 mm | 20.4 kg | 50 µm | Poly-Vinyl Chloride (PVC) | 12 Fibers Rip Cord | OFNR | 125 µm | Multiple Fibers | Black |
Belden Inc. | 70 °C | -40 C | Multimode | 0.53 in | 13.46 mm | 20.4 kg | 50 µm | Poly-Vinyl Chloride (PVC) | 12 Fibers Armored | OFCR | 125 µm | Multiple Fibers | Black |
 Belden Inc. | 70 °C | -40 C | Multimode | 0.48 in | 12.19 mm | 20.4 kg | 50 µm | Poly-Vinyl Chloride (PVC) | 12 Fibers Armored | OFCP | 125 µm | Multiple Fibers | Violet |
Belden Inc. | 70 °C | -40 C | Multimode | 20.4 kg | 50 µm | Low Smoke Zero Halogen (LSZH) | 12 Fibers Rip Cord | OFNR | 125 µm | Multiple Fibers | Black | ||
 Belden Inc. | 70 °C | -40 C | Multimode | 20.4 kg | 50 µm | Low Smoke Zero Halogen (LSZH) | 12 Fibers Rip Cord | OFNR | 125 µm | Multiple Fibers | Aqua |
