IRF3710 Series

Manufacturer: INFINEON

Catalog

IR MOSFET™ N-CHANNEL POWER MOSFET ; D2PAK TO-263 PACKAGE; 18 MOHM;

Part	Rds On (Max) @ Id, Vgs	Input Capacitance (Ciss) (Max) @ Vds	Vgs(th) (Max) @ Id	Mounting Type	Vgs (Max)	Operating Temperature [Max]	Operating Temperature [Min]	FET Type	Current - Continuous Drain (Id) @ 25°C	Supplier Device Package	Technology	Drive Voltage (Max Rds On, Min Rds On)	Package / Case	Gate Charge (Qg) (Max) @ Vgs [Max]	Drain to Source Voltage (Vdss)	Power Dissipation (Max)	Input Capacitance (Ciss) (Max) @ Vds [Max]
INFINEON IRF3710ZSTRLPBF	18 mOhm	2900 pF	4 V	Surface Mount	20 V	175 °C	-55 °C	N-Channel	59 A	D2PAK	MOSFET (Metal Oxide)	10 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	120 nC	100 V

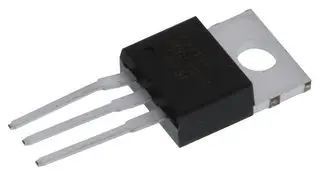

INFINEON IRF3710ZPBF	18 mOhm	2900 pF	4 V	Through Hole	20 V	175 °C	-55 °C	N-Channel	59 A	TO-220AB	MOSFET (Metal Oxide)	10 V	TO-220-3	120 nC	100 V
INFINEON IRF3710STRLPBF	23 mOhm		4 V	Surface Mount	20 V	175 °C	-55 °C	N-Channel	57 A	D2PAK	MOSFET (Metal Oxide)	10 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	130 nC	100 V	200 W	3130 pF
INFINEON IRF3710PBF	23 mOhm		4 V	Through Hole	20 V	175 °C	-55 °C	N-Channel	57 A	TO-220AB	MOSFET (Metal Oxide)	10 V	TO-220-3	130 nC	100 V	200 W	3130 pF
INFINEON IRF3710STRRPBF	23 mOhm		4 V	Surface Mount	20 V	175 °C	-55 °C	N-Channel	57 A	D2PAK	MOSFET (Metal Oxide)	10 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	130 nC	100 V	200 W	3130 pF
