GRL18SG Series

Catalog

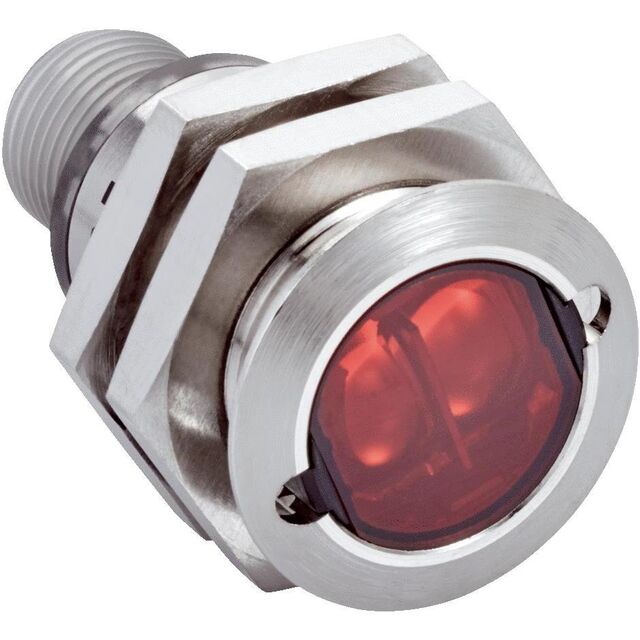

SENSOR RETROREFLECTIVE 7.2M NPN

Part	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Ingress Protection	Sensing Method	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Configuration	Adjustment Type	Light Source	Connection Method	Response Time	Cable Length	Cable Length
SICK, Inc. 1061928	1.181 in	7.2 m	283.465 in	30 mm	IP67	Retroreflective	-25 °C	55 °C	10 VDC	30 VDC	NPN	Adjustable Potentiometer	RED (650nm)	Connector M12	500 µs
SICK, Inc. 1068942	1.181 in	7.2 m	283.465 in	30 mm	IP67	Retroreflective	-25 °C	55 °C	10 VDC	30 VDC	NPN	Adjustable Potentiometer	RED (650nm)	Cable	500 µs	78.74 "	2 m
SICK, Inc. 1059556	1.181 in	7.2 m	283.465 in	30 mm	IP67	Retroreflective	-25 °C	55 °C	10 VDC	30 VDC	PNP	Adjustable Potentiometer	RED (650nm)	Connector M12	500 µs
SICK, Inc. 1062031	1.181 in	7.2 m	283.465 in	30 mm	IP67	Retroreflective	-25 °C	55 °C	10 VDC	30 VDC	NPN	Adjustable Potentiometer	RED (650nm)	Cable	500 µs	78.74 "	2 m
SICK, Inc. 1061927	1.181 in	7.2 m	283.465 in	30 mm	IP67	Retroreflective	-25 °C	55 °C	10 VDC	30 VDC	NPN	Adjustable Potentiometer	RED (650nm)	Connector M12	500 µs
SICK, Inc. GRL18SG-P1137	1.181 in	7.2 m	283.465 in	30 mm	IP67	Retroreflective	-25 °C	55 °C	10 VDC	30 VDC	PNP	Adjustable Potentiometer	RED (650nm)	Cable	500 µs	78.74 "	2 m
SICK, Inc. 1059557	1.181 in	7.2 m	283.465 in	30 mm	IP67	Retroreflective	-25 °C	55 °C	10 VDC	30 VDC	PNP	Adjustable Potentiometer	RED (650nm)	Connector M12	500 µs
