M33302 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

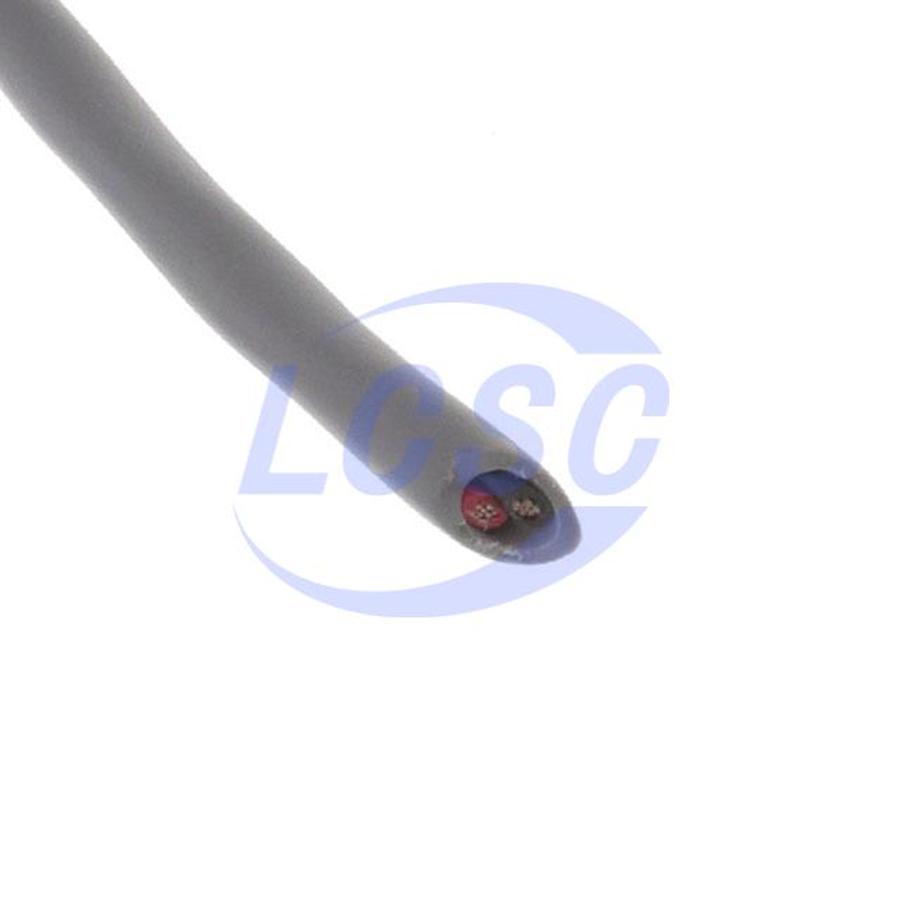

CABLE 2COND 22AWG SLATE 3000'
| Part | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Ratings | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Conductor Material | Jacket (Insulation) Material | Conductor Insulation | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 28 AWG | 7 | 2 | UL Style 2576 | Slate | 0.813 mm | 0.032 in | 4.17 mm | 0.164 in | Multi-Conductor | Copper Tinned | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 300 VDC | 80 °C | -20 ░C | 22 AWG | 914.4 m | 3000 ' |
ALPHA WIRE | 28 AWG | 7 | 2 | UL Style 2576 | Slate | 0.813 mm | 0.032 in | 4.17 mm | 0.164 in | Multi-Conductor | Copper Tinned | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 300 VDC | 80 °C | -20 ░C | 22 AWG | 152.4 m | 500 ft |
