7104 Series

Catalog

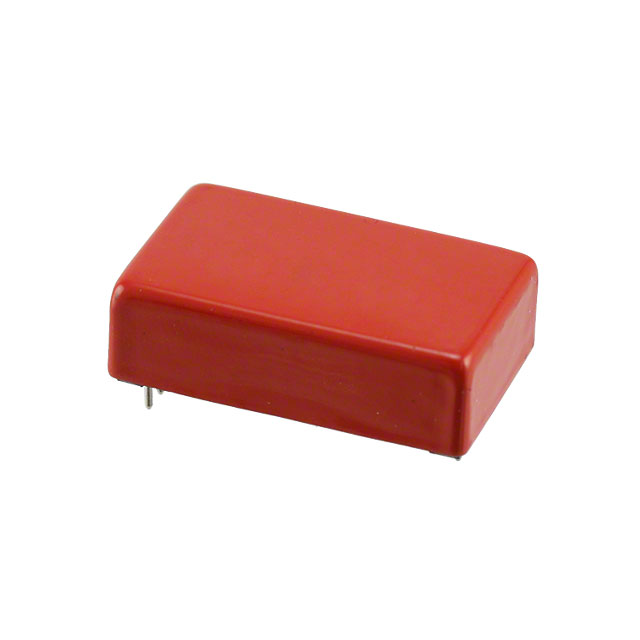

RELAY REED 4PST 500MA 12V

Part	Coil Resistance	Must Release Voltage	Release Time	Must Operate Voltage	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Operate Time	Coil Voltage	Termination Style	Mounting Type	Coil Type	Contact Rating (Current)	Switching Voltage [Max]	Features
COTO TECHNOLOGY 7104-12-1000	550 Ohms	1 VDC	0.1 ms	9 VDC	4PST-NO (4 Form A)	85 °C	-20 ░C	21.8 mA	1 ms	12 VDC	PC Pin	Through Hole	Non Latching	0.5 A	200 VDC 200 VAC
COTO TECHNOLOGY 7104-12-1011	550 Ohms	1 VDC	0.1 ms	9 VDC	4PST-NO (4 Form A)	85 °C	-20 ░C	21.8 mA	1 ms	12 VDC	PC Pin	Through Hole	Non Latching	0.5 A	200 VDC 200 VAC	Diode Electrostatic Shield
COTO TECHNOLOGY 7104-24-1010	2 kOhms	2 VDC	0.1 ms	18 VDC	4PST-NO (4 Form A)	85 °C	-20 ░C	12 mA	1 ms	24 VDC	PC Pin	Through Hole	Non Latching	0.5 A	200 VDC 200 VAC	Electrostatic Shield
COTO TECHNOLOGY 7104-24-1100	2 kOhms	2 VDC	0.1 ms	18 VDC	4PST-NO (4 Form A)	85 °C	-20 ░C	12 mA	1 ms	24 VDC	PC Pin	Through Hole	Non Latching	0.5 A	200 VDC 200 VAC
COTO TECHNOLOGY 7104-05-1011	80 Ohms	0.4 VDC	0.1 ms	3.75 VDC	4PST-NO (4 Form A)	85 °C	-20 ░C	62.5 mA	1 ms	5 VDC	PC Pin	Through Hole	Non Latching	0.5 A	200 VDC 200 VAC	Diode Electrostatic Shield
COTO TECHNOLOGY 7104-05-1010	80 Ohms	0.4 VDC	0.1 ms	3.75 VDC	4PST-NO (4 Form A)	85 °C	-20 ░C	62.5 mA	1 ms	5 VDC	PC Pin	Through Hole	Non Latching	0.5 A	200 VDC 200 VAC	Electrostatic Shield
COTO TECHNOLOGY 7104-12-1010	550 Ohms	1 VDC	0.1 ms	9 VDC	4PST-NO (4 Form A)	85 °C	-20 ░C	21.8 mA	1 ms	12 VDC	PC Pin	Through Hole	Non Latching	0.5 A	200 VDC 200 VAC	Electrostatic Shield
COTO TECHNOLOGY 7104-05-1001	80 Ohms	0.4 VDC	0.1 ms	3.75 VDC	4PST-NO (4 Form A)	85 °C	-20 ░C	62.5 mA	1 ms	5 VDC	PC Pin	Through Hole	Non Latching	0.5 A	200 VDC 200 VAC	Diode
COTO TECHNOLOGY 7104-12-1100	550 Ohms	1 VDC	0.1 ms	9 VDC	4PST-NO (4 Form A)	85 °C	-20 ░C	21.8 mA	1 ms	12 VDC	PC Pin	Through Hole	Non Latching	0.5 A	200 VDC 200 VAC
