RDM-W5C9 Series
Manufacturer: Raltron Electronics
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

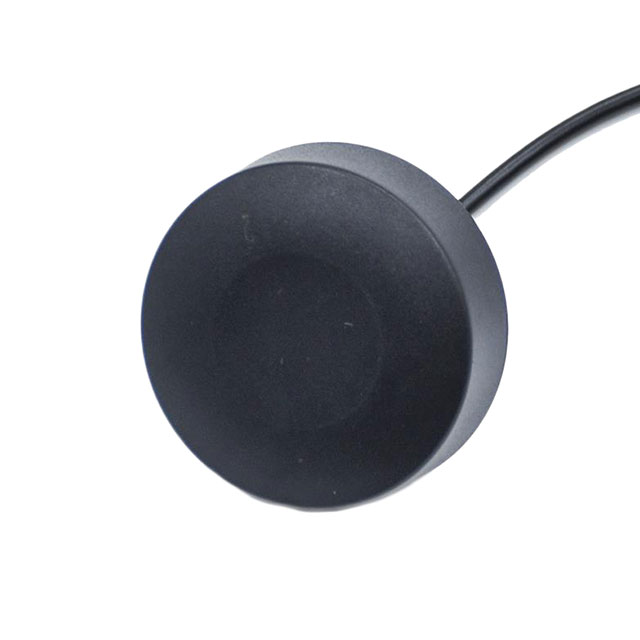

RF ANT 2.4GHZ/5.5GHZ PUCK RP-SMA
| Part | Termination Type | Frequency Range (Band 2) Minimum | Frequency Range (Band 1) Maximum | Frequency Range (Band 2) Maximum | Frequency Range (Band 1) Minimum | Height (Max) | Gain | Number of Bands | Applications | Frequency Group | Mounting Type | VSWR Minimum | VSWR | VSWR Maximum | Frequency (Band) | Frequency (Center) | Ingress Protection | Features | RF Family/Standard | Antenna Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Raltron Electronics | RP-SMA Male | 5.15 GHz | 2.5 GHz | 5.85 GHz | 2.4 GHz | 0.598 in | 4.5 dBi 5 dBi | 2 | 802.15.4 Bluetooth Wi-Fi | Wide Band | Screw | 2 | 2 2.5 | 2.5 | 5.5 GHz | 2.4 GHz | IP66 IP67 | 1m Cable | 802.15.4 Bluetooth WiFi | Puck |
