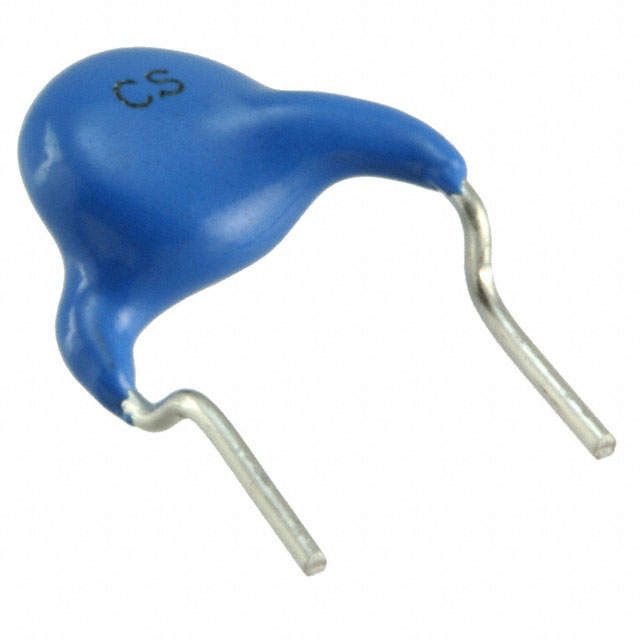

CS45 Series

Catalog

SUPPRESSION CAP, 100PF, CLASS X1/Y2 ROHS COMPLIANT: YES

Part	Package / Case	Tolerance	Ratings	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Lead Style	Lead Spacing	Lead Spacing	Temperature Coefficient	Capacitance	Features	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated [Max]	Voltage - Rated [Min]
TDK Corporation CS45-B2GA101K-VKA	Disc Radial	10 %	X1 Y2	Through Hole	-25 °C	125 °C	440 VAC	Formed Leads - Kinked	0.295 in	7.5 mm	B	100 pF	High Voltage	Safety
TDK Corporation CS45-B2GA151K-VKA	Disc Radial	10 %	X1 Y2	Through Hole	-25 °C	125 °C	440 VAC	Formed Leads - Kinked	0.295 in	7.5 mm	B	150 pF	High Voltage	Safety
TDK Corporation CS45-E2GA152M-NKA	Disc Radial	20 %	X1 Y2	Through Hole	-25 °C	125 °C	440 VAC	Formed Leads - Kinked	0.295 in	7.5 mm	E	1500 pF	High Voltage	Safety	7.5 mm	0.295 in
TDK Corporation CS45-E2GA332M-GKA	Disc Radial	20 %	X1 Y2	Through Hole	-25 °C	125 °C	440 VAC	Formed Leads - Kinked	0.295 in	7.5 mm	E	0.0033 µF	High Voltage	Safety	10 mm	0.394 in
TDK Corporation CS45-B2GA331K-NKA	Disc Radial	10 %	X1 Y2	Through Hole	-25 °C	125 °C	440 VAC	Formed Leads - Kinked	0.295 in	7.5 mm	B	330 pF	High Voltage	Safety
TDK Corporation CS45SL2GA680J-NKA	Disc Radial	5 %	X1 Y2	Through Hole	-40 C	125 °C		Formed Leads - Kinked	0.295 in	7.5 mm	SL	68 pF	High Voltage	Safety	7.5 mm	0.295 in	11.5 mm	0.453 in	440 VAC	300 VAC
TDK Corporation CS45-E2GA102M-GKA	Disc Radial	20 %	X1 Y2	Through Hole	-25 °C	125 °C	440 VAC	Formed Leads - Kinked	0.295 in	7.5 mm	E	0.001 µF	High Voltage	Safety
