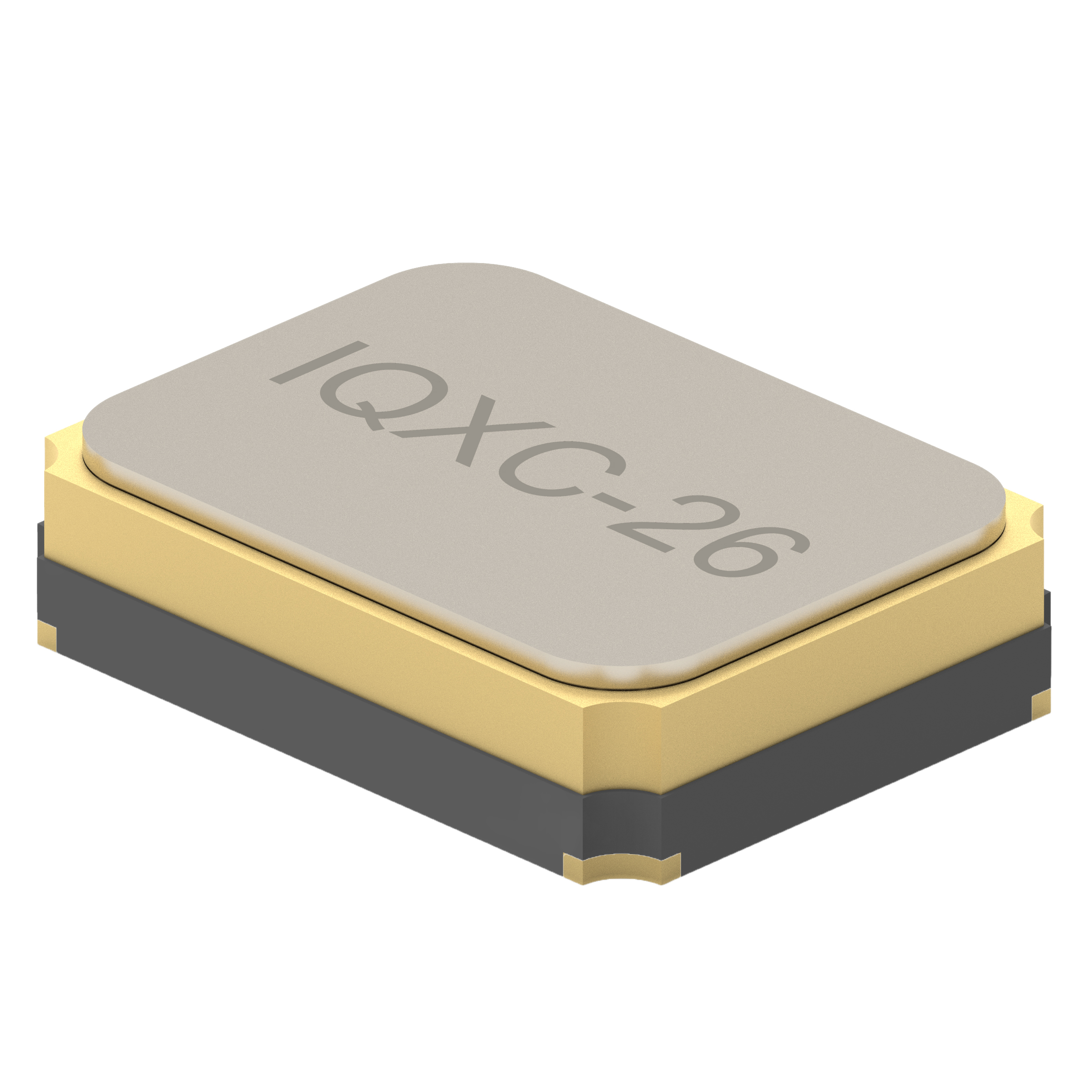

IQXC-26 Series
Manufacturer: IQD
Beta
⌘K
CRYSTAL, 32MHZ, 8PF, 1.6MM X 1.2MM ROHS COMPLIANT: YES
| Part | ESR (Equivalent Series Resistance) | Package / Case | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Load Capacitance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Operating Mode | Frequency | Frequency Stability | Type | Mounting Type | Frequency Tolerance | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IQD | 100 Ohms 150 Ohms | 4-SMD No Lead | 0.018 " | 0.45 mm | 8 pF | 1.6 mm | 1.2 mm | 0.047 in | 0.063 " | Fundamental | 32 MHz | 20 ppm | MHz Crystal | Surface Mount | 10 ppm | 85 °C | -40 C |
