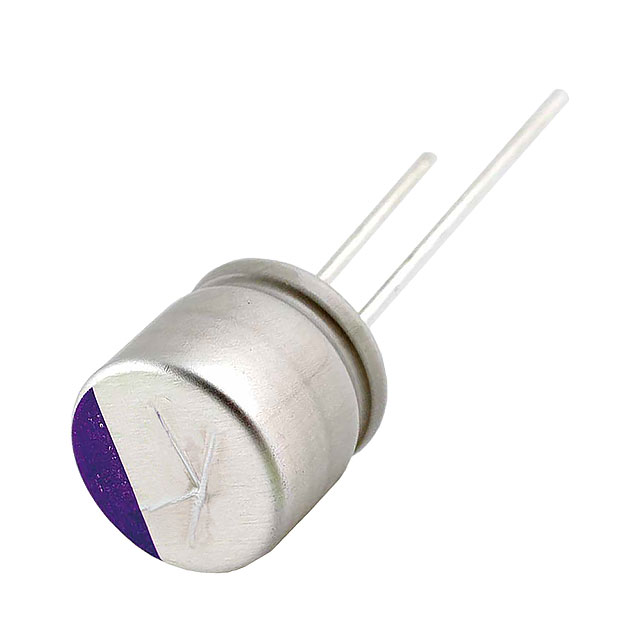

PZJ Series
Manufacturer: Rubycon
Beta
⌘K
ALUMINUM ORGANIC POLYMER CAPACITORS 50VDC 220UF 20% AEC-Q200
| Part | Tolerance | ESR (Equivalent Series Resistance) | Package / Case | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Mounting Type | Capacitance | Ripple Current @ High Frequency | Size / Dimension [diameter] | Size / Dimension [diameter] | Ratings | Ripple Current @ Low Frequency | Operating Temperature [Min] | Operating Temperature [Max] | Type | Lead Spacing | Lead Spacing | Applications | Lifetime @ Temp. | Voltage - Rated | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rubycon | 20 % | 13 mOhms | Can Radial | 0.65 in | 16.5 mm | Through Hole | 220 µF | 3.6 A | 0.394 in | 10 mm | AEC-Q200 | 180 mA | -55 C | 125 °C | Hybrid | 0.197 " | 5 mm | Automotive | 4000 Hrs | 50 VDC | ||
Rubycon | 20 % | 20 mOhms | Can Radial | Through Hole | 330 µF | 2.8 A | 0.394 in | 10 mm | AEC-Q200 | 140 mA | -55 C | 125 °C | Hybrid | 0.197 " | 5 mm | Automotive | 4000 Hrs | 35 V | 0.413 " | 10.5 mm |
