APR-UL Series

Manufacturer: OptiFuse

Catalog

FUSE AUTO 7.5A 32VDC BLADE

Part	Package / Case	Voltage Rating - DC	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Current Rating (Amps)	Response Time	Breaking Capacity @ Rated Voltage	Color	Mounting Type	Fuse Type	Approval Agency

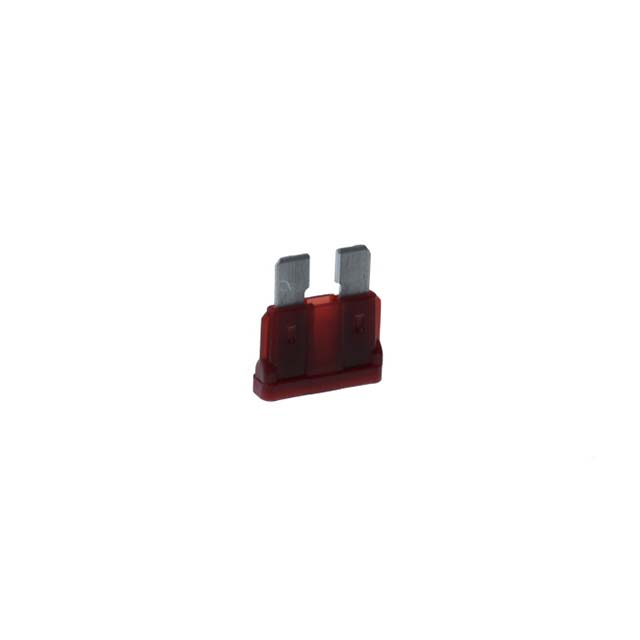

OptiFuse APR-UL-7.5A	Blade ATO/ATC	32 V	0.2 in	0.75 in	19.05 mm	0.48 "	12.19 mm	5.08 mm	7.5 A	Fast Blow	1 kA	Brown	Requires Holder	Automotive	ISO SAE UL
OptiFuse APR-UL-20A	Blade ATO/ATC	32 V	0.2 in	0.75 in	19.05 mm	0.48 "	12.19 mm	5.08 mm	20 A	Fast Blow	1 kA	Yellow	Requires Holder	Automotive	ISO SAE UL

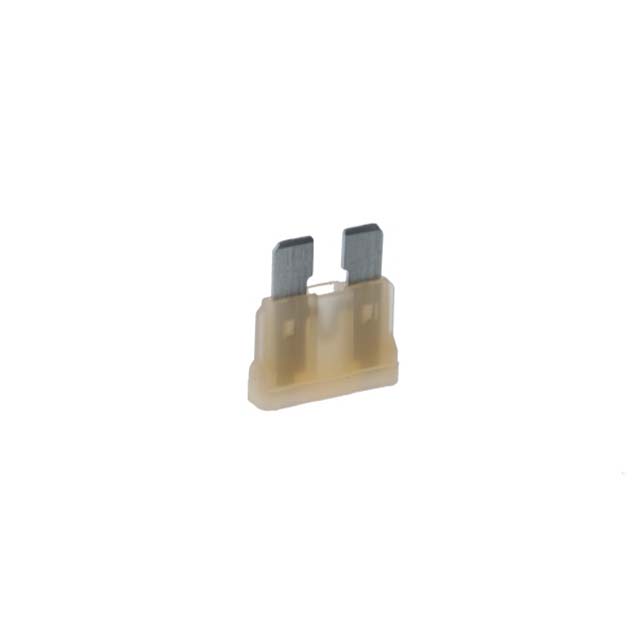

OptiFuse APR-UL-25A	Blade ATO/ATC	32 V	0.2 in	0.75 in	19.05 mm	0.48 "	12.19 mm	5.08 mm	25 A	Fast Blow	1 kA	Clear White	Requires Holder	Automotive	ISO SAE UL
OptiFuse APR-UL-4A	Blade ATO/ATC	32 V	0.2 in	0.75 in	19.05 mm	0.48 "	12.19 mm	5.08 mm	4 A	Fast Blow	1 kA	Pink	Requires Holder	Automotive	ISO SAE UL

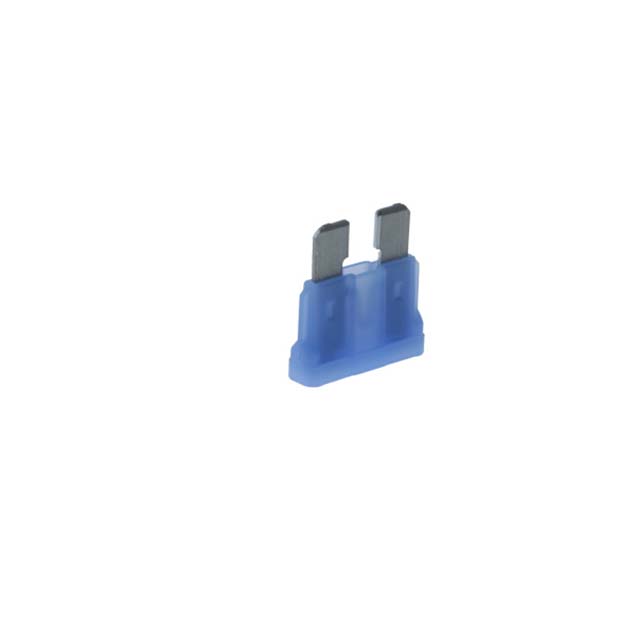

OptiFuse APR-UL-15A	Blade ATO/ATC	32 V	0.2 in	0.75 in	19.05 mm	0.48 "	12.19 mm	5.08 mm	15 A	Fast Blow	1 kA	Blue	Requires Holder	Automotive	ISO SAE UL
OptiFuse APR-UL-30A	Blade ATO/ATC	32 V	0.2 in	0.75 in	19.05 mm	0.48 "	12.19 mm	5.08 mm	30 A	Fast Blow	1 kA	Green	Requires Holder	Automotive	ISO SAE UL
OptiFuse APR-UL-2A	Blade ATO/ATC	32 V	0.2 in	0.75 in	19.05 mm	0.48 "	12.19 mm	5.08 mm	2 A	Fast Blow	1 kA	Gray	Requires Holder	Automotive	ISO SAE UL

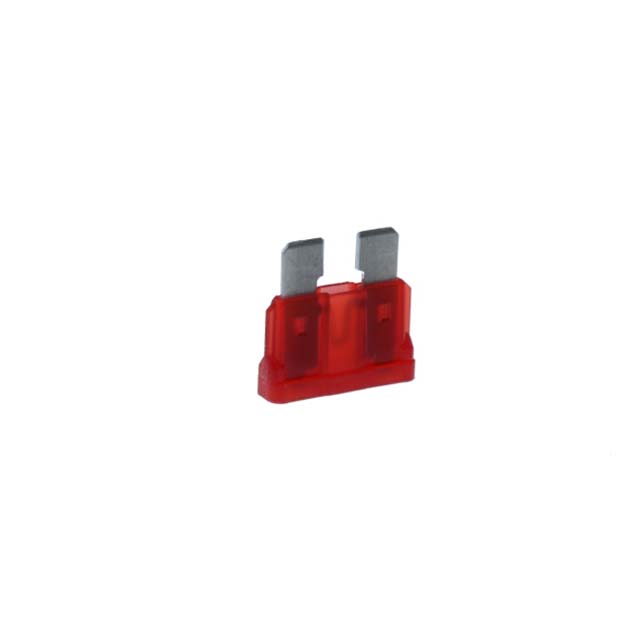

OptiFuse APR-UL-10A	Blade ATO/ATC	32 V	0.2 in	0.75 in	19.05 mm	0.48 "	12.19 mm	5.08 mm	10 A	Fast Blow	1 kA	Red	Requires Holder	Automotive	ISO SAE UL

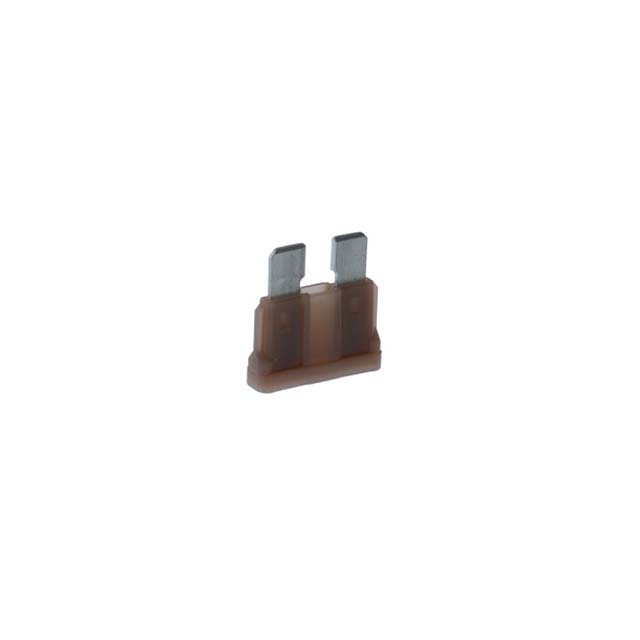

OptiFuse APR-UL-5A	Blade ATO/ATC	32 V	0.2 in	0.75 in	19.05 mm	0.48 "	12.19 mm	5.08 mm	5 A	Fast Blow	1 kA	Tan	Requires Holder	Automotive	ISO SAE UL
