CY14B101 Series

Manufacturer: INFINEON

Catalog

NVRAM 1MB 3V 40MHZ 128K X 8 SPI NVSRAM

Part	Package / Case	Supplier Device Package	Memory Size	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Memory Format	Clock Frequency	Memory Interface	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Memory Type	Memory Organization	Access Time	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Package / Case	Package / Case	Write Cycle Time - Word, Page	Write Cycle Time - Word, Page [custom]	Package / Case [x]	Package / Case [x]

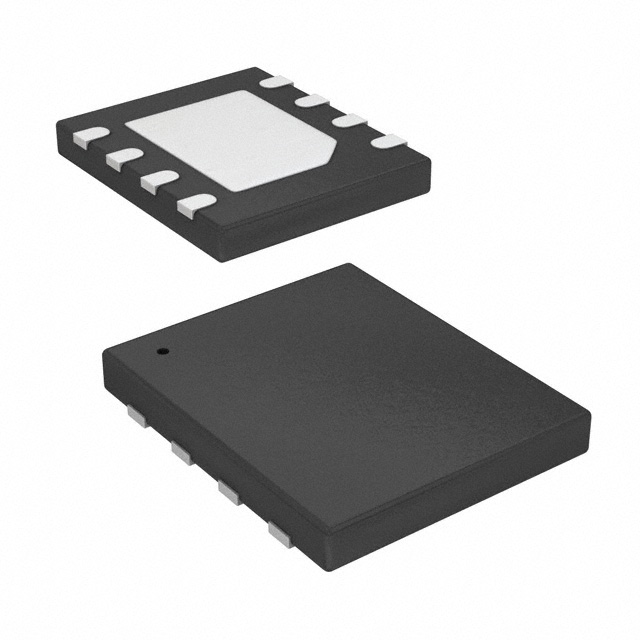

INFINEON CY14B101Q2-LHXI	8-WDFN Exposed Pad	8-DFN (5x6)	1 Mbit	3.6 V	2.7 V	Surface Mount	NVSRAM	40 MHz	SPI	NVSRAM (Non-Volatile SRAM)	85 C	-40 ¯C	Non-Volatile	128 K
INFINEON CY14B101KA-SP45XIT	48-BSSOP (0.295" 7.50mm Width)	48-SSOP	1 Mbit	3.6 V	2.7 V	Surface Mount	NVSRAM		Parallel	NVSRAM (Non-Volatile SRAM)	85 C	-40 ¯C	Non-Volatile	128 K	45 ns	45 ns	45 ns
INFINEON CY14B101J2-SXIT	8-SOIC	8-SOIC	1 Mbit	3.6 V	2.7 V	Surface Mount	NVSRAM	3.4 MHz	I2C	NVSRAM (Non-Volatile SRAM)	85 C	-40 ¯C	Non-Volatile	128 K				0.154 in	3.9 mm
INFINEON CY14B101K-SP45XI	48-BSSOP (0.295" 7.50mm Width)	48-SSOP	1 Mbit	3.6 V	2.7 V	Surface Mount	NVSRAM		Parallel	NVSRAM (Non-Volatile SRAM)	85 C	-40 ¯C	Non-Volatile	128 K	45 ns	45 ns	45 ns
INFINEON CY14B101K-SP45XI	48-BSSOP (0.295" 7.50mm Width)	48-SSOP	1 Mbit	3.6 V	2.7 V	Surface Mount	NVSRAM		Parallel	NVSRAM (Non-Volatile SRAM)	85 C	-40 ¯C	Non-Volatile	128 K	45 ns	45 ns	45 ns

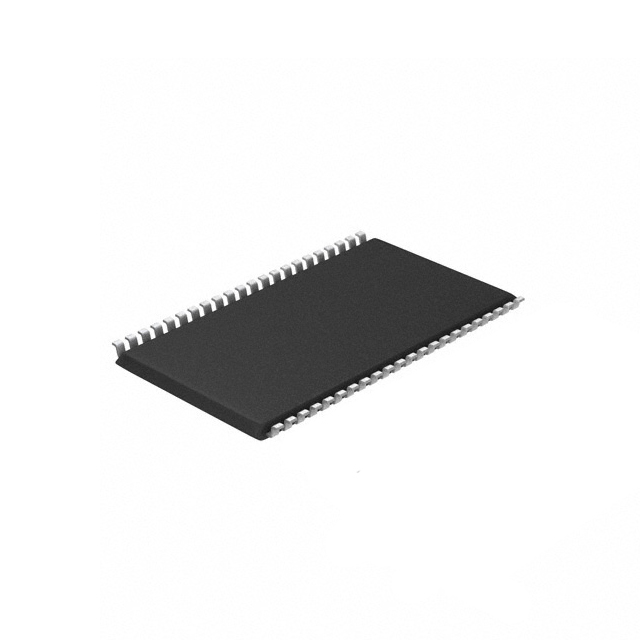

INFINEON CY14B101KA-ZS25XIT	44-TSOP (0.400" 10.16mm Width)	44-TSOP II	1 Mbit	3.6 V	2.7 V	Surface Mount	NVSRAM		Parallel	NVSRAM (Non-Volatile SRAM)	85 C	-40 ¯C	Non-Volatile	128 K	25 ns					25 ns
INFINEON CY14B101LA-ZS20XIT	44-TSOP (0.400" 10.16mm Width)	44-TSOP II	1 Mbit	3.6 V	2.7 V	Surface Mount	NVSRAM		Parallel	NVSRAM (Non-Volatile SRAM)	85 C	-40 ¯C	Non-Volatile	128 K	20 ns						20 ns
INFINEON CY14B101LA-SP25XI	48-BSSOP (0.295" 7.50mm Width)	48-SSOP	1 Mbit	3.6 V	2.7 V	Surface Mount	NVSRAM		Parallel	NVSRAM (Non-Volatile SRAM)	85 C	-40 ¯C	Non-Volatile	128 K	25 ns					25 ns
INFINEON CY14B101L-SZ25XC	32-SOIC	32-SOIC	1 Mbit	3.6 V	2.7 V	Surface Mount	NVSRAM		Parallel	NVSRAM (Non-Volatile SRAM)	70 °C	0 °C	Non-Volatile	128 K	25 ns					25 ns		7.5 mm	0.295 in

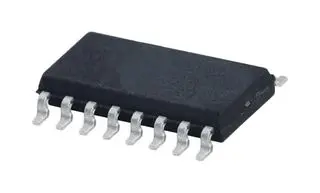

INFINEON CY14B101I-SFXI	16-SOIC	16-SOIC	1 Mbit	3.6 V	2.7 V	Surface Mount	NVSRAM	3.4 MHz	I2C	NVSRAM (Non-Volatile SRAM)	85 C	-40 ¯C	Non-Volatile	128 K				0.295 "	7.5 mm
