BS11P-SH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

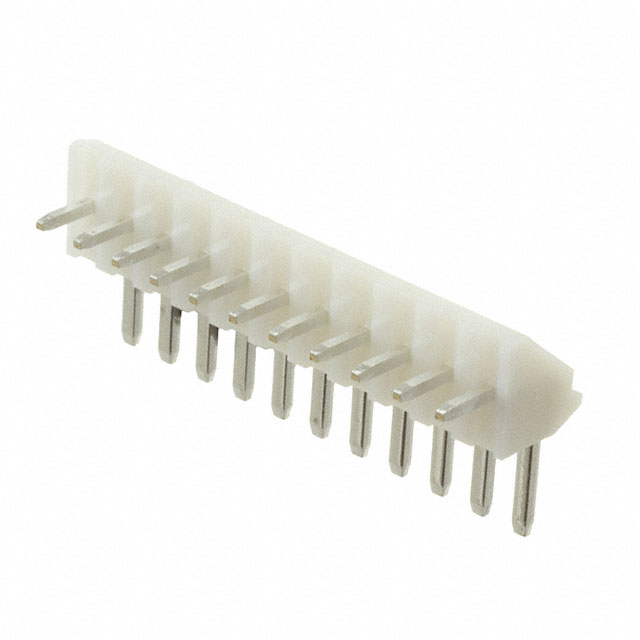

CONN HEADER R/A 11POS 2.5MM
| Part | Contact Material | Shrouding | Contact Length - Mating | Contact Length - Mating | Number of Rows | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Current Rating (Amps) | Contact Type | Material Flammability Rating | Mounting Type | Connector Type | Voltage Rating | Contact Finish - Post | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Style | Fastening Type | Contact Shape | Termination | Insulation Color | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Brass | Unshrouded | 0.217 in | 5.5 mm | 1 | 5.6 mm | 0.22 in | 0.118 in | 3 mm | 3 A | Male Pin | UL94 V-0 | Right Angle Through Hole | Header | 250 V | Tin | 11 | 85 °C | -25 °C | Board to Cable/Wire | Friction Lock | Square | Solder | Natural | All | 2.5 mm | 0.098 in | Nylon 6/6 Polyamide (PA66) |
