MS3126F22 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

PLUG

Part	Color	Connector Type	Current Rating	Fastening Type	Primary Material	Number of Positions	Orientation	Ingress Protection	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Shell Material	Shell Finish	Cable Opening	Mounting Type	Features	Contact Finish - Mating	Applications	Termination	Contact Material	Voltage Rating	Insert Material	Qualification	Shielding	Grade	Operating Temperature (Max)	Operating Temperature (Min)	Backshell Material	Plating	Shell Size - Insert Width	Shell Size - Insert Length

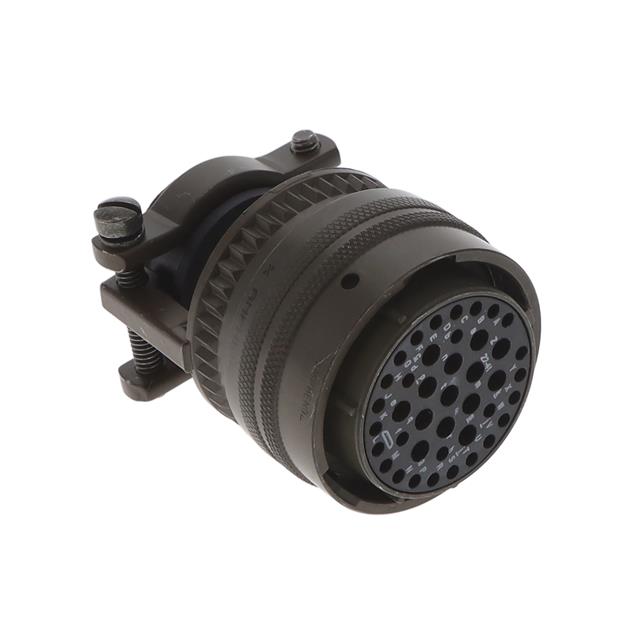

Amphenol Aerospace Operations MS3126F22-41S(LC)
Amphenol Aerospace Operations MS3126F22-55SW(LC)
Amphenol Aerospace Operations MS3126F22-55PZ
Amphenol Aerospace Operations MS3126F22-21S(LC)
Amphenol Aerospace Operations MS3126F22-32S
Amphenol Aerospace Operations MS3126F22-55PX	Olive Drab	Male Pins Plug	7.5 A	Bayonet Lock	Metal	55	X	Environment Resistant	22	55	Aluminum	Cadmium Olive Drab Chromate	0.75 in	Free Hanging (In-Line)	Coupling Nut Strain Relief	Gold	Aerospace Industrial Instrumentation Mass Transit Military	Crimp	Copper Alloy	600 V	Neoprene	MIL-DTL-26482 Series I	Unshielded	Military	125 °C	-55 °C
Amphenol Aerospace Operations MS3126F22-32PY	Olive Drab	Male Pins Plug	7.5 A	Bayonet Lock	Metal	32	Y		22	32	Aluminum	Cadmium Olive Drab Chromate	0.75 in	Free Hanging (In-Line)	Backshell Cable Clamp Coupling Nut	Gold	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Crimp	Copper Alloy	600 V	Neoprene	MIL-DTL-26482 Series I	Unshielded	Military	125 °C	-55 °C	Aluminum	Olive Drab Chromate over Cadmium
Amphenol Aerospace Operations MS3126F22-21SY	Olive Drab	Female Sockets Plug	13 A	Bayonet Lock	Metal	21	Y				Aluminum	Cadmium Olive Drab Chromate	0.75 in	Free Hanging (In-Line)	Backshell Cable Clamp Coupling Nut	Gold	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Crimp	Copper Alloy	1000 V	Neoprene	MIL-DTL-26482 Series I	Unshielded	Military	125 °C	-55 °C	Aluminum	Olive Drab Chromate over Cadmium	21 mm	22 mm
Amphenol Aerospace Operations MS3126F22-21P	Olive Drab	Male Pins Plug	13 A	Bayonet Lock	Metal	21	N (Normal)	Environment Resistant			Aluminum	Cadmium Olive Drab Chromate	0.75 in	Free Hanging (In-Line)	Coupling Nut Strain Relief	Gold	Aerospace Industrial Instrumentation Mass Transit Military	Crimp	Copper Alloy	1000 V	Neoprene	MIL-DTL-26482 Series I	Unshielded	Military	125 °C	-55 °C			21 mm	22 mm
Amphenol Aerospace Operations MS3126F22-41P(LC)
