FN9255EMB Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Features	Approval Agency	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Ingress Protection	Material Flammability Rating	Connector Type	Current Rating - Filter	Connector Style	Termination	Termination	Termination	Mounting Type	Filter Type
TE Connectivity AMP Connectors FN9255EMB-2-06	Earth Line Choke Rear Side Mount	CE CQC ENEC UR	30.4 mm	22.9 mm	IP40	UL94 V-0	Receptacle Male Blades	10 A	IEC 320-C14	6.3 mm	Quick Connect	0.25 "	Flange Panel Mount	Filtered (EMI RFI) - Commercial Medical

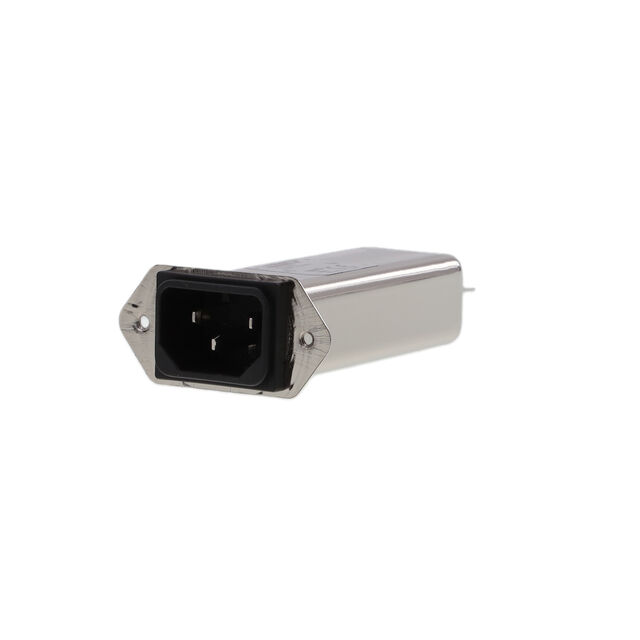

TE Connectivity AMP Connectors FN9255EMB-4-06	Earth Line Choke Rear Side Mount	CE CQC ENEC UR	30.4 mm	22.9 mm	IP40	UL94 V-0	Receptacle Male Blades	4 A	IEC 320-C14	6.3 mm	Quick Connect	0.25 "	Flange Panel Mount	Filtered (EMI RFI) - Commercial Medical
TE Connectivity AMP Connectors FN9255EMB-4-06	Earth Line Choke Rear Side Mount	CE CQC ENEC UR	30.4 mm	22.9 mm	IP40	UL94 V-0	Receptacle Male Blades	4 A	IEC 320-C14	6.3 mm	Quick Connect	0.25 "	Flange Panel Mount	Filtered (EMI RFI) - Commercial Medical

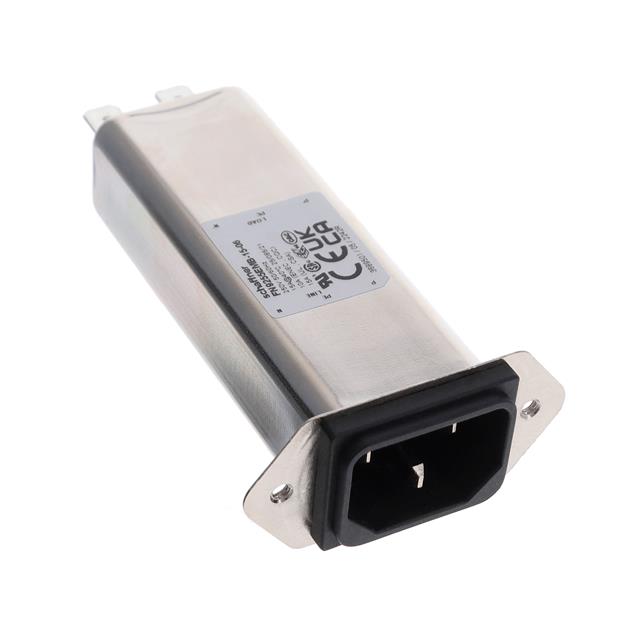

TE Connectivity AMP Connectors FN9255EMB-15-06	Earth Line Choke Rear Side Mount	CE CQC ENEC UR	30.4 mm	22.9 mm	IP40	UL94 V-0	Receptacle Male Blades	15 A	IEC 320-C14	6.3 mm	Quick Connect	0.25 "	Flange Panel Mount	Filtered (EMI RFI) - Commercial Medical
TE Connectivity AMP Connectors FN9255EMB-15-06	Earth Line Choke Rear Side Mount	CE CQC ENEC UR	30.4 mm	22.9 mm	IP40	UL94 V-0	Receptacle Male Blades	15 A	IEC 320-C14	6.3 mm	Quick Connect	0.25 "	Flange Panel Mount	Filtered (EMI RFI) - Commercial Medical
TE Connectivity AMP Connectors FN9255EMB-2-06	Earth Line Choke Rear Side Mount	CE CQC ENEC UR	30.4 mm	22.9 mm	IP40	UL94 V-0	Receptacle Male Blades	10 A	IEC 320-C14	6.3 mm	Quick Connect	0.25 "	Flange Panel Mount	Filtered (EMI RFI) - Commercial Medical
