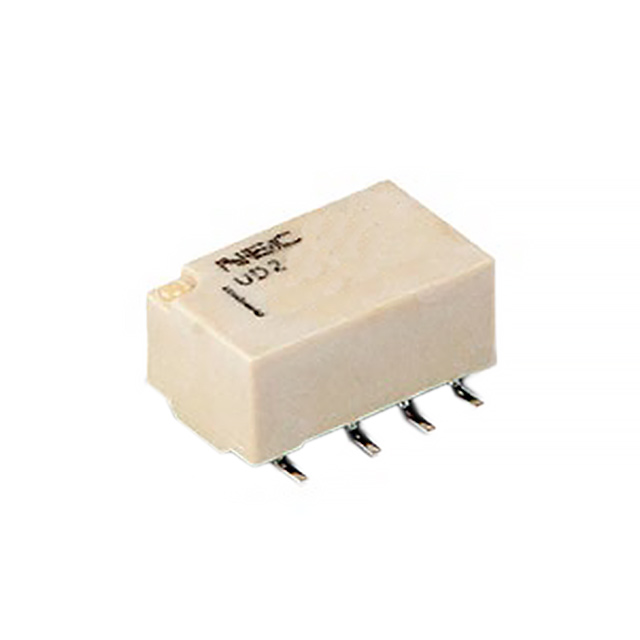

UD2 Series
Manufacturer: KEMET
Beta
⌘K
LOW SIGNAL RELAYS - PCB KEMET, UD2, RELAYS, SIGNAL
| Part | Must Release Voltage | Must Operate Voltage | Contact Form | Contact Rating (Current) | Load - Max Switching | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Release Time | Operate Time | Termination Style | Switching Voltage [Max] | Coil Voltage | Mounting Type | Approval Agency | Relay Type | Contact Material | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 0.45 VDC | 3.6 VDC | DPDT (2 Form C) | 1 A | 220 W 250 VA | Non Latching | 70 °C | -40 C | 22.2 mA | 1 ms | 2 ms | Gull Wing | 220 VDC 250 VAC | 4.5 VDC | Surface Mount | CSA TUV UL | General Purpose | Gold Alloy Silver Alloy | |
 KEMET | 1.2 VDC | 9 VDC | DPDT (2 Form C) | 1 A | 220 W 250 VA | Non Latching | 85 °C | -40 C | 11.7 mA | 1 ms | 2 ms | Gull Wing | 220 VDC 250 VAC | 12 VDC | Surface Mount | CSA TUV UL | General Purpose | Gold Alloy Silver Alloy | 1030 Ohms |
KEMET | 3.38 VDC | DPDT (2 Form C) | 1 A | 220 W 250 VA | Latching Single Coil | 85 °C | -40 C | 22.2 mA | 1 ms | 2 ms | Gull Wing | 220 VDC 250 VAC | 4.5 VDC | Surface Mount | CSA TUV UL | General Purpose | Gold Alloy Silver Alloy |
