R18505 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

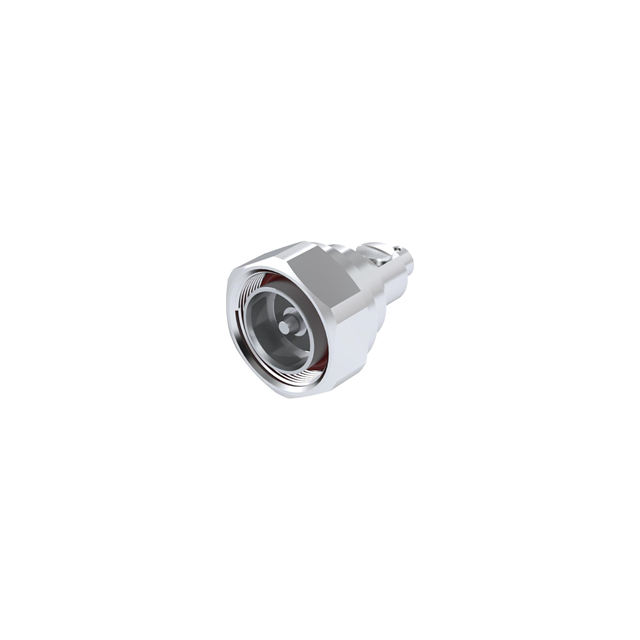

7-16 / STRAIGHT PLUG SOLDER TYPE
| Part | Center Contact Plating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Voltage Rating | Body Finish | Body Material | Impedance | Contact Termination | Fastening Type | Shield Termination | Frequency - Max [Max] | Housing Color | Mounting Type | Connector Type | Center Contact Material | Ingress Protection | Connector Style | Number of Ports | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Silver | Polytetrafluoroethylene (PTFE) | -55 C | 105 ░C | 500 | 1400 V | Silver | Brass | 50 Ohms | Solder | Threaded | Solder | 7.5 GHz | Silver | Free Hanging (In-Line) | Plug Male Pin | Brass | IP67 - Dust Tight Waterproof | 7/16 DIN | 1 | RG-401 (.250" Semi Rigid) |
