FN356 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
LINE FILTER 16A CHASSIS MOUNT
| Part | Voltage - Rated AC (Phase to Phase) | Approval Agency | Filter Type | Termination Style | Mounting Type | Applications | Frequency - Operating | Voltage - Rated AC (Phase to Ground/Neutral) | Operating Temperature [Max] | Operating Temperature [Min] | Current | Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 440 V | CSA ENEC UR | Three Phase (Wye) | Terminal Block | Chassis Mount | General Purpose | 60 Hz | 250 V | 100 °C | -25 °C | 16 A | Single Stage |

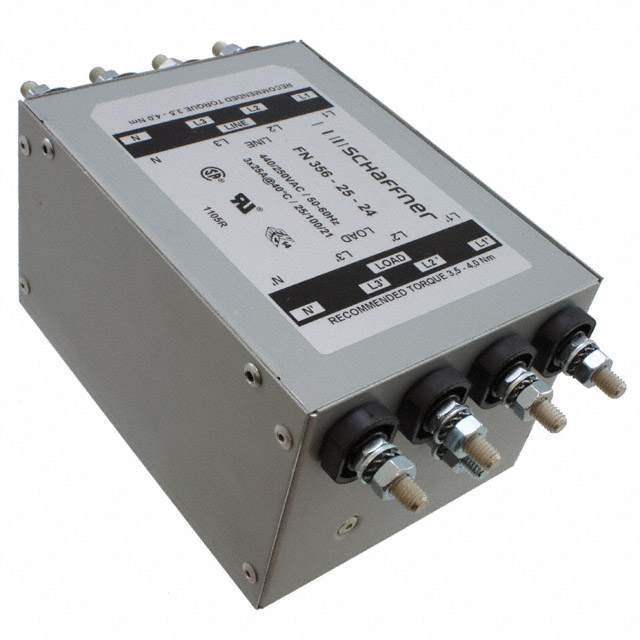

 TE Connectivity AMP Connectors | 440 V | CSA ENEC UR | Three Phase (Wye) | Threaded Post (M6) | Chassis Mount | General Purpose | 60 Hz | 250 V | 100 °C | -25 °C | 25 A | Single Stage |

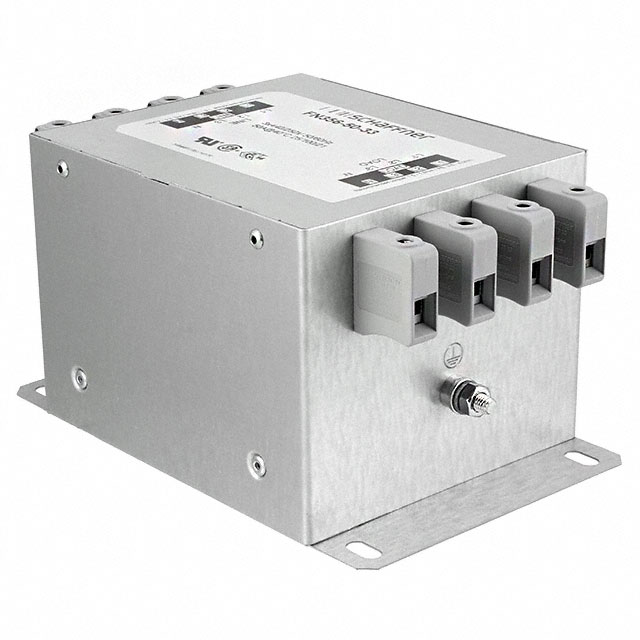

 TE Connectivity AMP Connectors | 440 V | CSA ENEC UR | Three Phase (Wye) | Terminal Block | Chassis Mount | General Purpose | 60 Hz | 250 V | 100 °C | -25 °C | 50 A | Single Stage |
TE Connectivity AMP Connectors | 440 V | CSA ENEC UR | Three Phase (Wye) | Threaded Post (M6) | Chassis Mount | General Purpose | 60 Hz | 250 V | 100 °C | -25 °C | 25 A | Single Stage |
 TE Connectivity AMP Connectors | 440 V | CSA ENEC UR | Three Phase (Wye) | Threaded Post (M6) | Chassis Mount | General Purpose | 60 Hz | 250 V | 100 °C | -25 °C | 50 A | Single Stage |

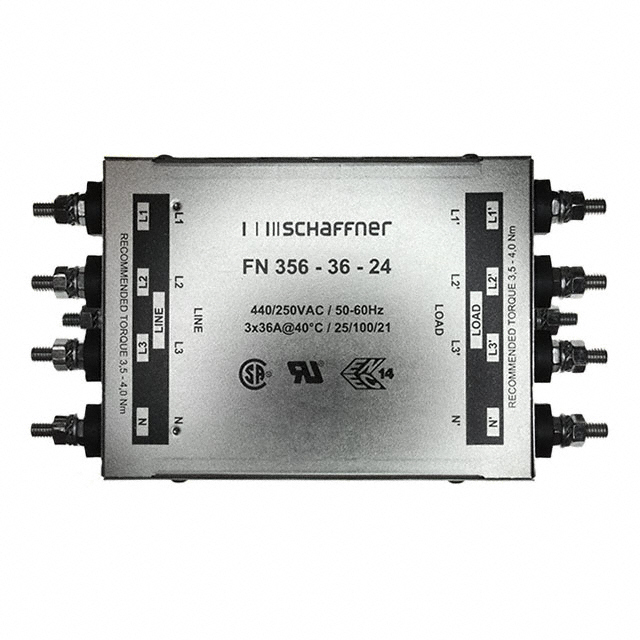

 TE Connectivity AMP Connectors | 440 V | CSA ENEC UR | Three Phase (Wye) | Threaded Post (M6) | Chassis Mount | General Purpose | 60 Hz | 250 V | 100 °C | -25 °C | 36 A | Single Stage |
TE Connectivity AMP Connectors | 440 V | CSA ENEC UR | Three Phase (Wye) | Terminal Block | Chassis Mount | General Purpose | 60 Hz | 250 V | 100 °C | -25 °C | 50 A | Single Stage |
 TE Connectivity AMP Connectors | 440 V | CSA ENEC UR | Three Phase (Wye) | Terminal Block | Chassis Mount | General Purpose | 60 Hz | 250 V | 100 °C | -25 °C | 36 A | Single Stage |
 TE Connectivity AMP Connectors | 440 V | CSA ENEC UR | Three Phase (Wye) | Threaded Post | Chassis Mount | General Purpose | 60 Hz | 250 V | 100 °C | -25 °C | 150 A | Single Stage |
TE Connectivity AMP Connectors | 440 V | CSA ENEC UR | Three Phase (Wye) | Threaded Post (M6) | Chassis Mount | General Purpose | 60 Hz | 250 V | 100 °C | -25 °C | 50 A | Single Stage |
