1825007 Series

Catalog

SW ROTARY DIP BCD COMP 0.4VA 20V

Part	Pitch [x]	Pitch	Pitch [x]	Electrical Life	Actuator Type	Body Material	Contact Material	Termination Style	Mechanical Life	Height Above Board	Height Above Board	Contact Finish	Mounting Type	Circuit	Voltage Rating	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Actuator Level	Number of Positions

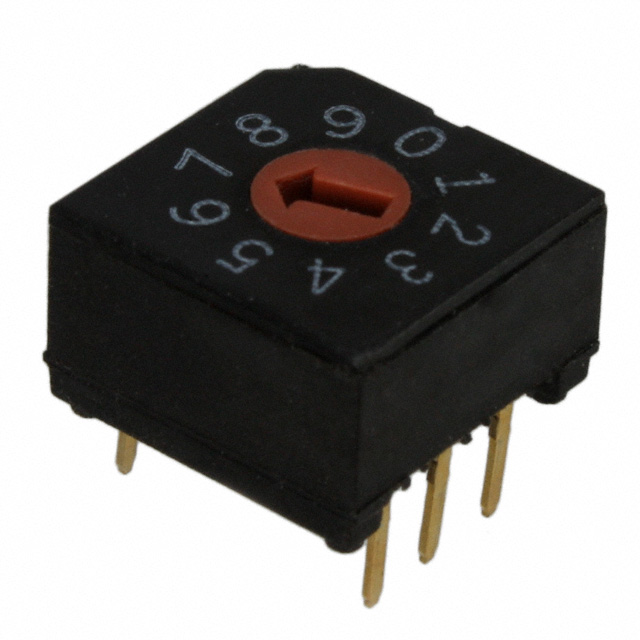

TE Connectivity Raychem Cable Protection 1825007-1	0.1 in	Full	2.54 mm	10000 Cycles	Rotary for Tool	Polyphenylene Sulfide (PPS)	Copper Alloy	PC Pin	10000 Steps	0.256 in	6.5 mm	Gold	Through Hole	BCD Complement	20 VAC/DC	10 mm	0.394 in	-30 ░C	85 °C	10	Flush Recessed
TE Connectivity Raychem Cable Protection 1-1825007-1	0.1 in	Full	2.54 mm	10000 Cycles	Rotary for Tool	Polyphenylene Sulfide (PPS)	Copper Alloy	PC Pin	10000 Steps	0.256 in	6.5 mm	Gold	Through Hole	Hexadecimal Complement	20 VAC/DC	10 mm	0.394 in	-30 ░C	85 °C		Flush Recessed	16

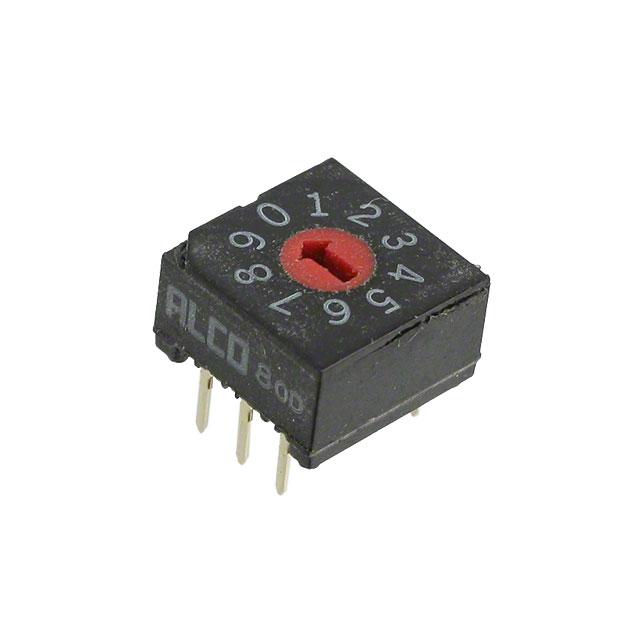

TE Connectivity Raychem Cable Protection 1825007-6	0.1 in	Full	2.54 mm	10000 Cycles	Rotary for Tool	Polyphenylene Sulfide (PPS)	Copper Alloy	PC Pin	10000 Steps	0.256 in	6.5 mm	Gold	Through Hole	BCD	20 VAC/DC	10 mm	0.394 in	-30 ░C	85 °C	10	Flush Recessed
