RBR2LB30A Series

Low VF, 60V, 2A, SMBP, Schottky Barrier Diode

Catalog

Low VF, 60V, 2A, SMBP, Schottky Barrier Diode

Part	Technology	Speed	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Package / Case	Operating Temperature - Junction	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Supplier Device Package

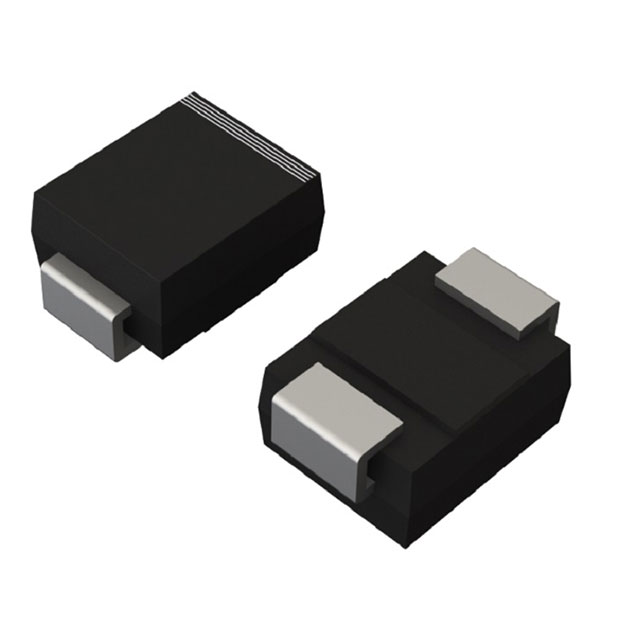

Rohm Semiconductor RBR2LB60BTBR1	Schottky	200 mA 500 ns	150 µA	2 A	520 mV	DO-214AA SMB	150 ¯C	60 V	Surface Mount	SMBP

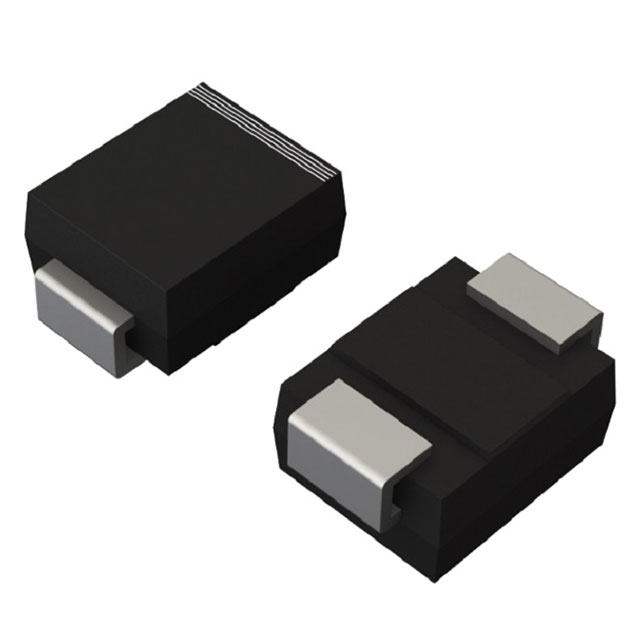

Rohm Semiconductor RBR2LB40CTBR1	Schottky	200 mA 500 ns	100 çA	2 A	520 mV	DO-214AA SMB	150 ¯C	40 V	Surface Mount	SMBP
Rohm Semiconductor RBR2LB30ATBR1	Schottky	200 mA 500 ns	80 µA	2 A	490 mV	DO-214AA SMB	150 ¯C	30 V	Surface Mount	SMBP

Low VF, 60V, 2A, SMBP, Schottky Barrier Diode

• High reliability, Small power mold type, Low VF

RBR2LB60B is the high reliability schottky barrier diode with low VFfor general rectification.
